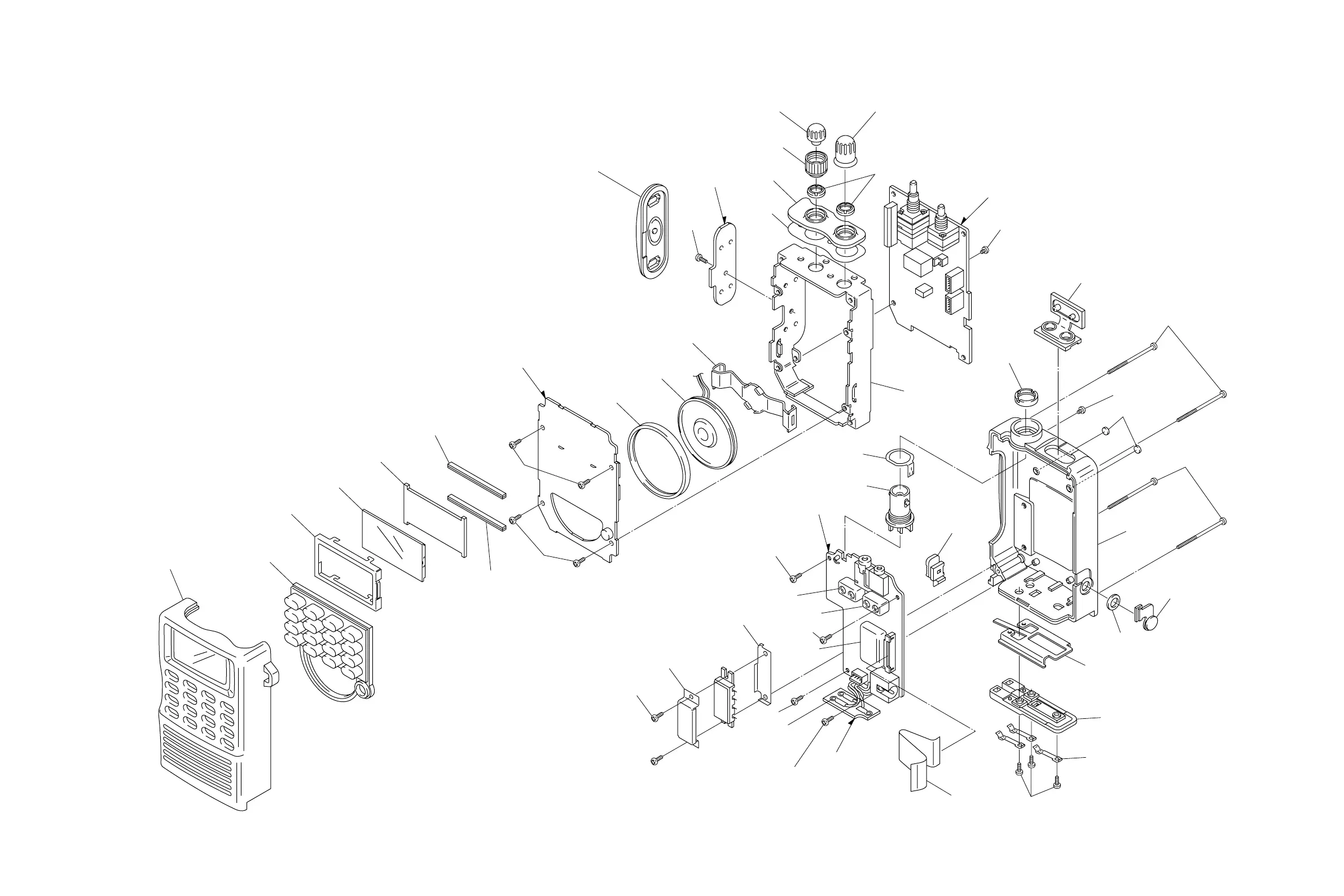

Icom IC-A22E

LOGIC UNIT
MP3006 (C)
MP5007 (M)
MP5006 (M)
+
MP5003 (M)
MP5002 (M)
+
MP5005 (M)
MP5001 (M)
MP5008 (M)
MP3016 (C)
MP3023 (C)
SP3001 (C)
MP3013 (C)
EP6002 (L)
MP6003 (L)
DS6001 (L)
MP6002 (L)
MP3004 (C)
MP3002 (C)
EP6002 (L)
[IC-A22/E] only
MP5009 (M)
MP3030 (C)
MP3020 (C)
MP3029 (C)
MP3003 (C)
MP3032 (C)
J3001 (C)
MP3021 (C)
MP3007 (C)
MP3008 (C)
MP3026 (C)
MP4001 (R)
MP4002 (R)
MP7001 (V)
MP8002 (P)
W4011 (R)
MP3012 (C)
MP3005 (C)
MP3014 (C)
MP3019 (C)
MP3015 (C)
MP3001 (C)
MP3025 (C)
MP3027 (C)
J3001 (C)
MP3011 (C)
MP5004 (M)
+
PTT UNIT
RF UNIT
Unit abbreviations (C): CHASSIS PARTS
(R): RF UNIT
(V): VCO BOARD
(M): MAIN UNIT
(L): LOGIC UNIT
(P): PRT UNIT
PRT UNIT
MAIN UNIT
MP3022 (C)
MP3022 (C)
MP3020 (C)
MP3024 (C)
MP3021 (C)
MP3021 (C)
MP3021 (C)
