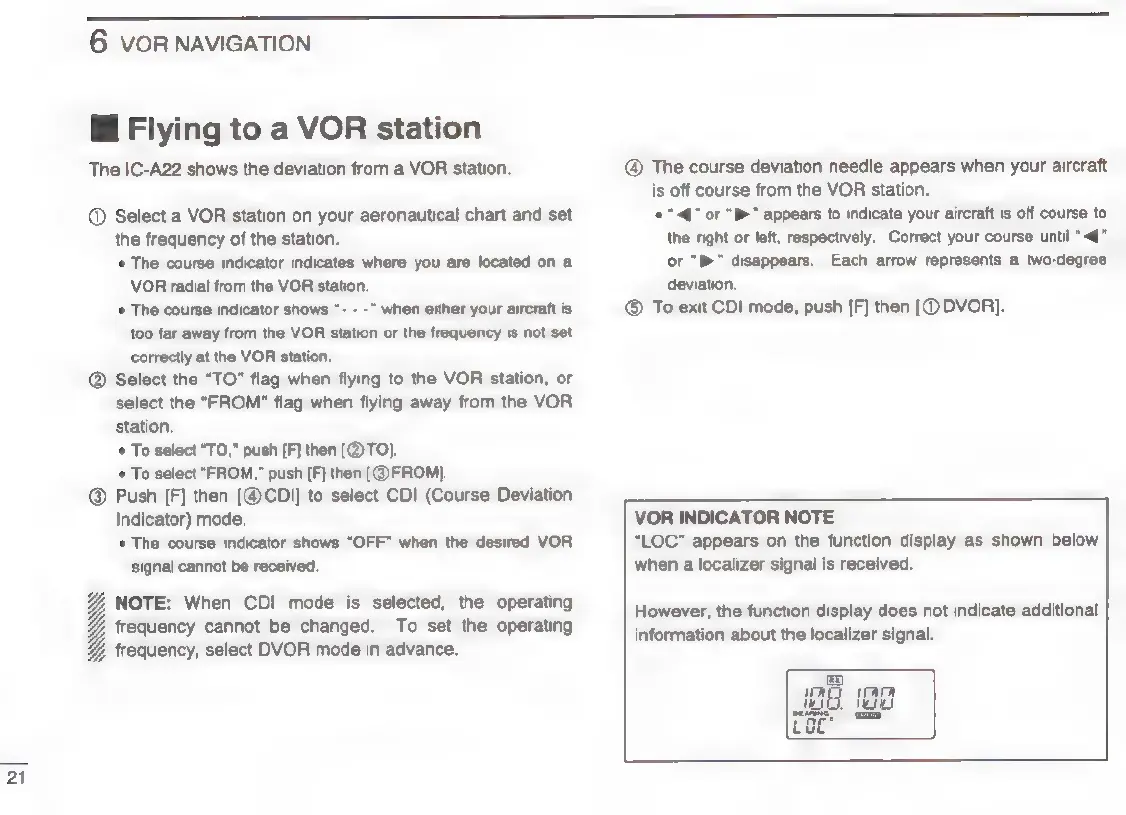

6 VOR NAVIGATION
i Flying to a VOR station
The IC-A22 shows the deviation from a VOR station.
©® Select a VOR station on your aeronautical chart and set
the frequency of the station.
* The course indicator indicates where you are located on a
VOR radial from the VOR station.
* The course indicator shows “- - -" when either your aircraft is
too far away from the VOR station or the frequency is not set
correctly at the VOR station.
@® Select the “TO” flag when flying to the VOR station, or
select the “FROM” flag when flying away from the VOR
station.
# To select “TO,” push [F] then [@TO}.
* To select “FROM,” push [F] then [@ FROM].
@ Push [F] then [@CDI] to select CDI (Course Deviation
Indicator) mode.
* The course indicator shows “OFF” when the desired VOR
signal cannot be received.
NOTE: When CDI mode is selected, the operating
frequency cannot be changed. To set the operating
frequency, select DVOR mode in advance.
WG
@ The course deviation needle appears when your aircraft
is off course from the VOR station.
“<4” or “B®” appears to indicate your aircraft is off course to
the right or left, respectively. Correct your course until "<4"
or "B" disappears. Each arrow represents a two-degree
deviation.
© To exit CDI mode, push [F] then [®DVOR].
VOR INDICATOR NOTE
“LOC” appears on the function display as shown below
when a localizer signal is received.
However, the function display does not indicate additional
information about the localizer signal.
