Icom IC-F2000T Service Manual

5-5

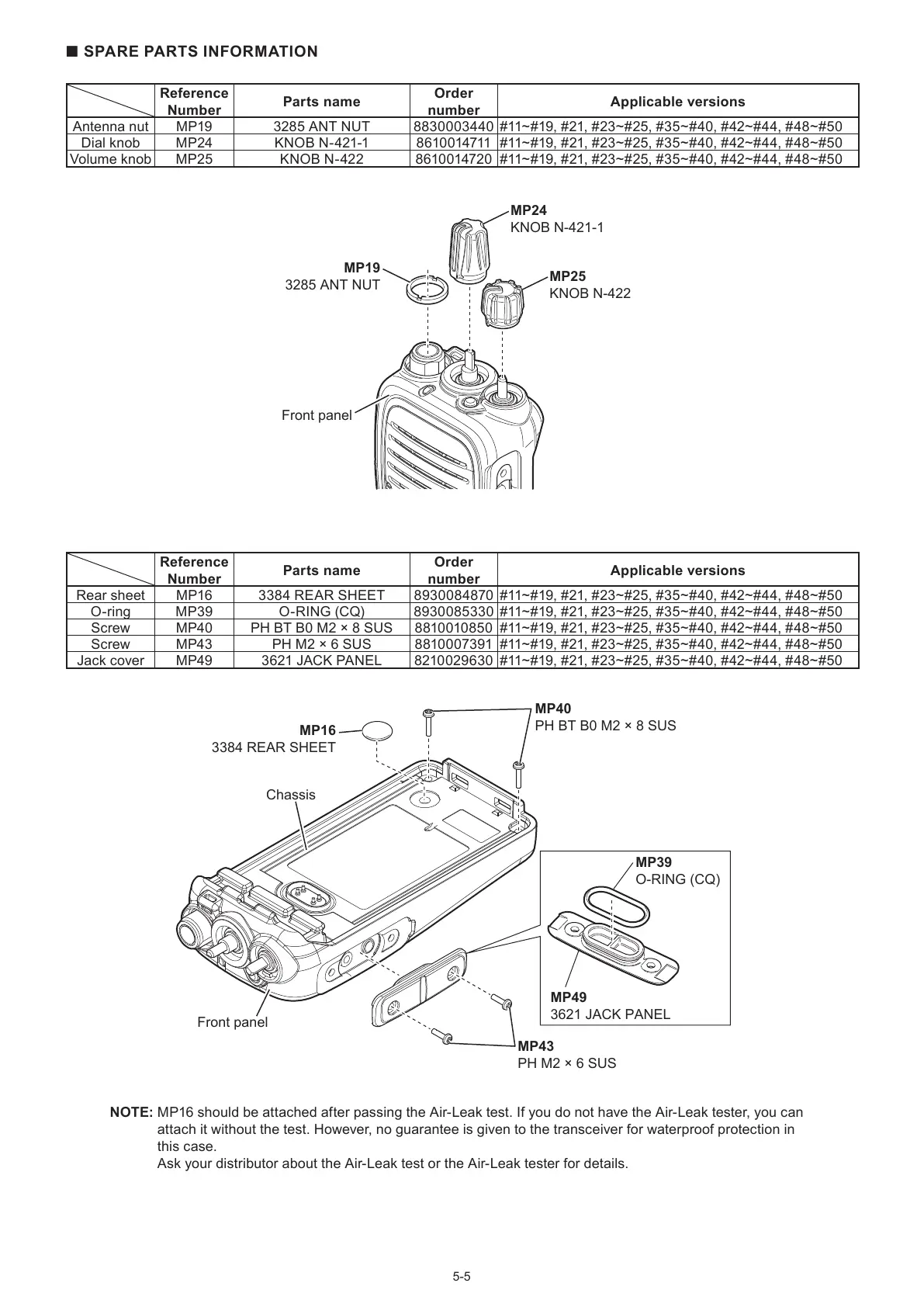

■ SPARE PARTS INFORMATION
Reference
Number
Parts name
Order
number
Applicable versions
Antenna nut MP19 3285 ANT NUT 8830003440 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Dial knob MP24 KNOB N-421-1 8610 014711 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Volume knob MP25 KNOB N-422 8610014720 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
MP25
KNOB N-422
MP24
KNOB N-421-1
MP19
3285 ANT NUT
Front panel
Reference
Number
Parts name
Order
number
Applicable versions
Rear sheet MP16 3384 REAR SHEET 8930084870 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
O-ring MP39 O-RING (CQ) 8930085330 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Screw MP40 PH BT B0 M2 × 8 SUS 8810010850 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Screw MP43 PH M2 × 6 SUS 8810007391 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Jack cover MP49 3621 JACK PANEL 8210029630 #11~#19, #21, #23~#25, #35~#40, #42~#44, #48~#50
Chassis
Front panel
MP40
PH BT B0 M2 × 8 SUS
MP39
O-RING (CQ)
MP49
3621 JACK PANEL
MP16
3384 REAR SHEET
MP43
PH M2 × 6 SUS
NOTE: MP16 should be attached after passing the Air-Leak test. If you do not have the Air-Leak tester, you can
attach it without the test. However, no guarantee is given to the transceiver for waterproof protection in
this case.
Ask your distributor about the Air-Leak test or the Air-Leak tester for details.
