o
PIT
(push-ta-talk)
SWITCH
[PTT]
Push and hold to transmit; release to receive.
•
DEALER-PROGRAMMABLE
SWITCHES/KEYS
[P]
Can each be programmed for one of several functions by
your Icom Dealer. (pgs.
6-10)
~
In this manual, [P] is
meant
to
stand
for
one
of
the
dealer-programmable switches/keys (and depends on
the transceiver's programming).
o
ANTENNA
CONNECTOR
[ANT]
Connects the supplied antenna. Screw the antenna on in a
clockwise direction.
•
CHANNEL
SELECTOR
[DIAL]
(p. 3)
Selects the operating channel.
• The home position (channel 1) may start scanning. See SCAN
FUNCTION on
p.
6.
oMULTI-CONNECTOR
Connects the EM-81 SPEAKER-MICROPHONE, etc.
o
POWERNOLUME
CONTROL
[PWRNOL]
(p.
3)
Rotate clockwise
to
turn
power
on (and increase audio
output); counterclockwise to turn power off (and decrease
audio output).
• ACTIVITY LED (p. 4)
Lights red while transmitting; lights green while receiving.
_KEYPAD
Used to enter DTMF codes, operating channels, channel
banks, etc., depending on programming.
• The IC-F30/IC-F40 requires the optional UT-82
DTMF
KEYPAD.

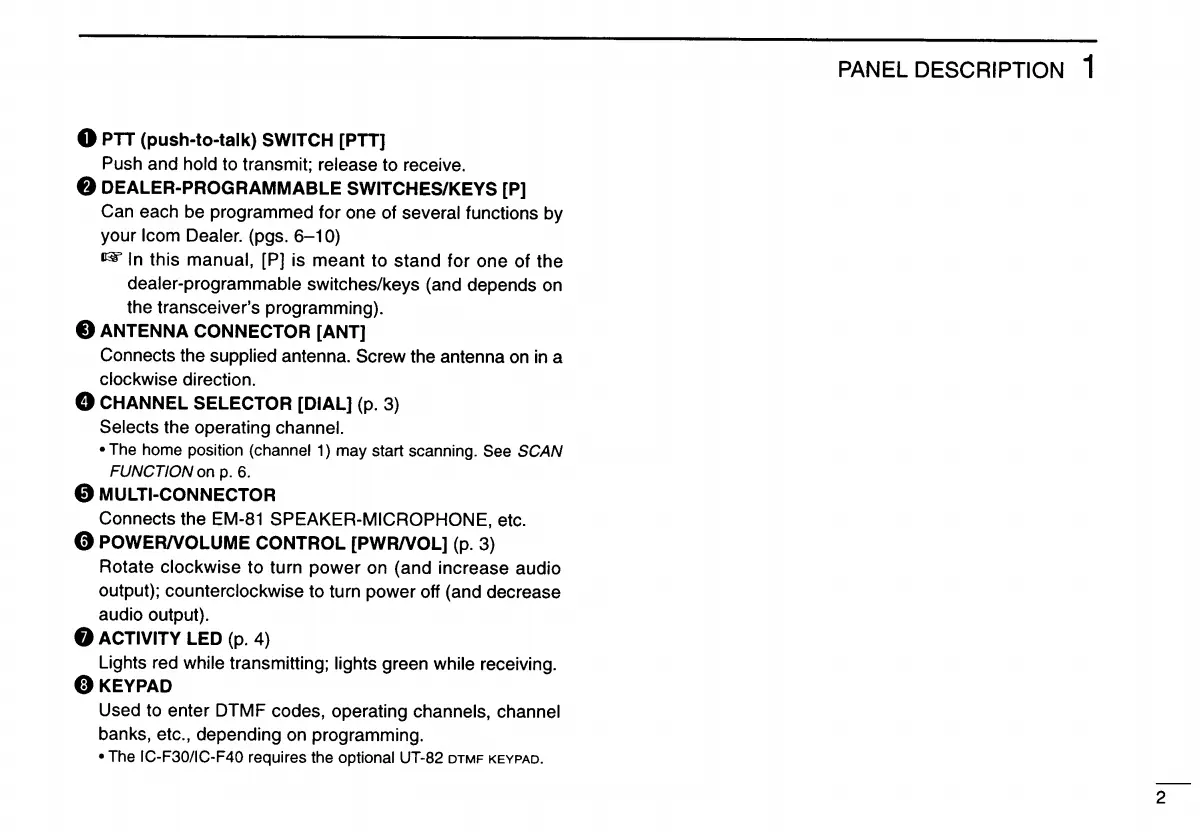

PANEL DESCRIPTION 1
2
