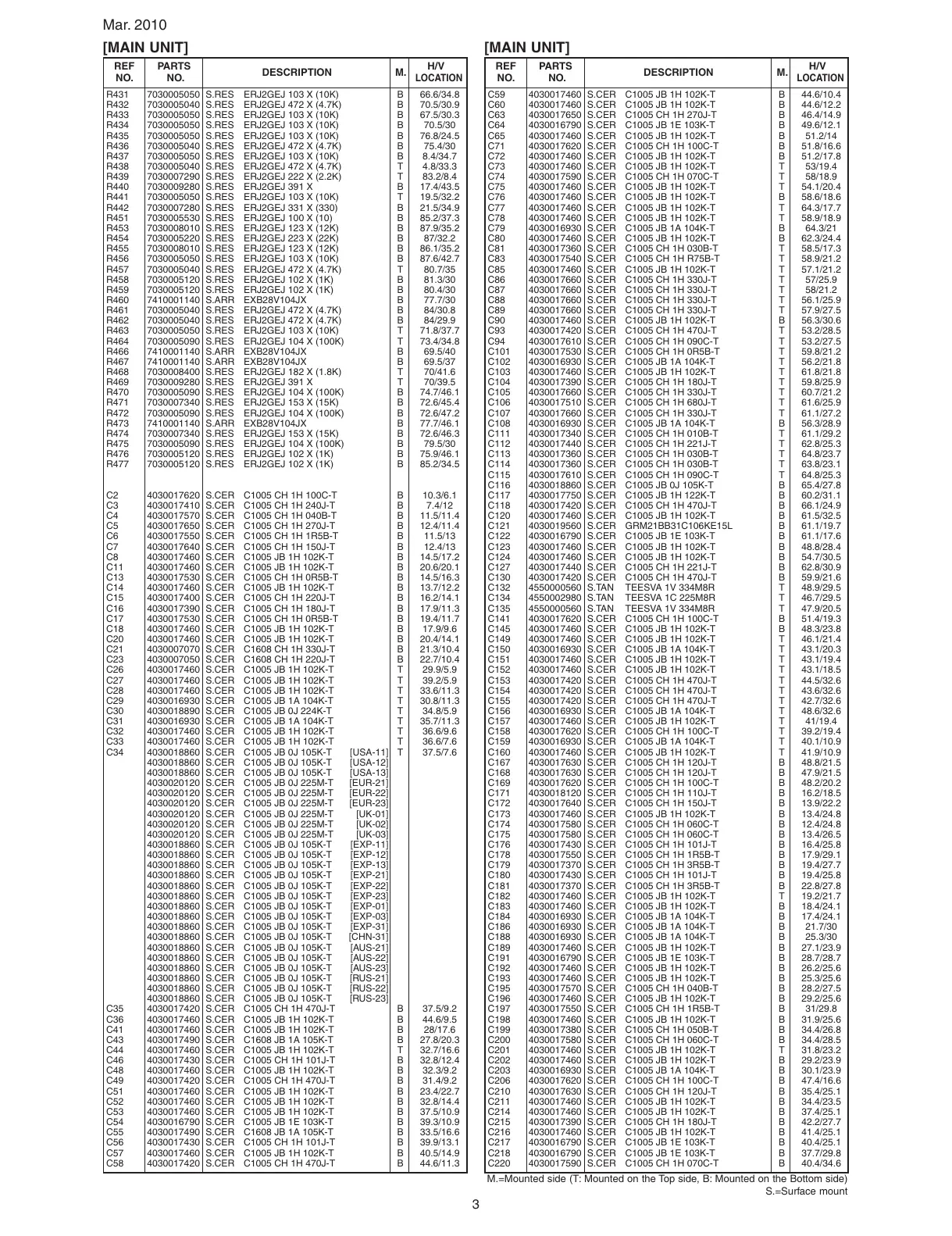

Icom IC-F3003 Service Manual Addendum

Mar. 2010
3
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
R431 7030005050 S.RES ERJ2GEJ 103 X (10K) B 66.6/34.8
R432 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 70.5/30.9
R433 7030005050 S.RES ERJ2GEJ 103 X (10K) B 67.5/30.3
R434 7030005050 S.RES ERJ2GEJ 103 X (10K) B 70.5/30
R435 7030005050 S.RES ERJ2GEJ 103 X (10K) B 76.8/24.5
R436 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 75.4/30
R437 7030005050 S.RES ERJ2GEJ 103 X (10K) B 8.4/34.7
R438 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 4.8/33.3
R439 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 83.2/8.4
R440 7030009280 S.RES ERJ2GEJ 391 X B 17.4/43.5
R441 7030005050 S.RES ERJ2GEJ 103 X (10K) T 19.5/32.2
R442 7030007280 S.RES ERJ2GEJ 331 X (330) B 21.5/34.9
R451 7030005530 S.RES ERJ2GEJ 100 X (10) B 85.2/37.3
R453 7030008010 S.RES ERJ2GEJ 123 X (12K) B 87.9/35.2
R454 7030005220 S.RES ERJ2GEJ 223 X (22K) B 87/32.2
R455 7030008010 S.RES ERJ2GEJ 123 X (12K) B 86.1/35.2
R456 7030005050 S.RES ERJ2GEJ 103 X (10K) B 87.6/42.7
R457 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 80.7/35
R458 7030005120 S.RES ERJ2GEJ 102 X (1K) B 81.3/30
R459 7030005120 S.RES ERJ2GEJ 102 X (1K) B 80.4/30
R460 7410001140 S.ARR EXB28V104JX B 77.7/30
R461 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 84/30.8
R462 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 84/29.9
R463 7030005050 S.RES ERJ2GEJ 103 X (10K) T 71.8/37.7
R464 7030005090 S.RES ERJ2GEJ 104 X (100K) T 73.4/34.8
R466 7410001140 S.ARR EXB28V104JX B 69.5/40
R467 7410001140 S.ARR EXB28V104JX B 69.5/37
R468 7030008400 S.RES ERJ2GEJ 182 X (1.8K) T 70/41.6
R469 7030009280 S.RES ERJ2GEJ 391 X T 70/39.5
R470 7030005090 S.RES ERJ2GEJ 104 X (100K) B 74.7/46.1
R471 7030007340 S.RES ERJ2GEJ 153 X (15K) B 72.6/45.4
R472 7030005090 S.RES ERJ2GEJ 104 X (100K) B 72.6/47.2
R473 7410001140 S.ARR EXB28V104JX B 77.7/46.1
R474 7030007340 S.RES ERJ2GEJ 153 X (15K) B 72.6/46.3
R475 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.5/30
R476 7030005120 S.RES ERJ2GEJ 102 X (1K) B 75.9/46.1
R477 7030005120 S.RES ERJ2GEJ 102 X (1K) B 85.2/34.5
C2 4030017620 S.CER C1005 CH 1H 100C-T B 10.3/6.1
C3 4030017410 S.CER C1005 CH 1H 240J-T B 7.4/12
C4 4030017570 S.CER C1005 CH 1H 040B-T B 11.5/11.4
C5 4030017650 S.CER C1005 CH 1H 270J-T B 12.4/11.4
C6 4030017550 S.CER C1005 CH 1H 1R5B-T B 11.5/13
C7 4030017640 S.CER C1005 CH 1H 150J-T B 12.4/13
C8 4030017460 S.CER C1005 JB 1H 102K-T B 14.5/17.2
C11 4030017460 S.CER C1005 JB 1H 102K-T B 20.6/20.1
C13 4030017530 S.CER C1005 CH 1H 0R5B-T B 14.5/16.3
C14 4030017460 S.CER C1005 JB 1H 102K-T B 13.7/12.2
C15 4030017400 S.CER C1005 CH 1H 220J-T B 16.2/14.1
C16 4030017390 S.CER C1005 CH 1H 180J-T B 17.9/11.3
C17 4030017530 S.CER C1005 CH 1H 0R5B-T B 19.4/11.7
C18 4030017460 S.CER C1005 JB 1H 102K-T B 17.9/9.6
C20 4030017460 S.CER C1005 JB 1H 102K-T B 20.4/14.1
C21 4030007070 S.CER C1608 CH 1H 330J-T B 21.3/10.4
C23 4030007050 S.CER C1608 CH 1H 220J-T B 22.7/10.4
C26 4030017460 S.CER C1005 JB 1H 102K-T T 29.9/5.9
C27 4030017460 S.CER C1005 JB 1H 102K-T T 39.2/5.9
C28 4030017460 S.CER C1005 JB 1H 102K-T T 33.6/11.3
C29 4030016930 S.CER C1005 JB 1A 104K-T T 30.8/11.3
C30 4030018890 S.CER C1005 JB 0J 224K-T T 34.8/5.9
C31 4030016930 S.CER C1005 JB 1A 104K-T T 35.7/11.3
C32 4030017460 S.CER C1005 JB 1H 102K-T T 36.6/9.6
C33 4030017460 S.CER C1005 JB 1H 102K-T T 36.6/7.6
C34 4030018860 S.CER C1005 JB 0J 105K-T [USA-11] T 37.5/7.6
4030018860 S.CER C1005 JB 0J 105K-T [USA-12]
4030018860 S.CER C1005 JB 0J 105K-T [USA-13]
4030020120 S.CER C1005 JB 0J 225M-T [EUR-21]
4030020120 S.CER C1005 JB 0J 225M-T [EUR-22]
4030020120 S.CER C1005 JB 0J 225M-T [EUR-23]
4030020120 S.CER C1005 JB 0J 225M-T [UK-01]
4030020120 S.CER C1005 JB 0J 225M-T [UK-02]
4030020120 S.CER C1005 JB 0J 225M-T [UK-03]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-11]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-12]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-13]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-21]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-22]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-23]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-01]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-03]
4030018860 S.CER C1005 JB 0J 105K-T [EXP-31]
4030018860 S.CER C1005 JB 0J 105K-T [CHN-31]
4030018860 S.CER C1005 JB 0J 105K-T [AUS-21]
4030018860 S.CER C1005 JB 0J 105K-T [AUS-22]
4030018860 S.CER C1005 JB 0J 105K-T [AUS-23]
4030018860 S.CER C1005 JB 0J 105K-T [RUS-21]
4030018860 S.CER C1005 JB 0J 105K-T [RUS-22]
4030018860 S.CER C1005 JB 0J 105K-T [RUS-23]
C35 4030017420 S.CER C1005 CH 1H 470J-T B 37.5/9.2
C36 4030017460 S.CER C1005 JB 1H 102K-T B 44.6/9.5
C41 4030017460 S.CER C1005 JB 1H 102K-T B 28/17.6
C43 4030017490 S.CER C1608 JB 1A 105K-T B 27.8/20.3
C44 4030017460 S.CER C1005 JB 1H 102K-T T 32.7/16.6
C46 4030017430 S.CER C1005 CH 1H 101J-T B 32.8/12.4
C48 4030017460 S.CER C1005 JB 1H 102K-T B 32.3/9.2
C49 4030017420 S.CER C1005 CH 1H 470J-T B 31.4/9.2
C51 4030017460 S.CER C1005 JB 1H 102K-T B 23.4/22.7
C52 4030017460 S.CER C1005 JB 1H 102K-T B 32.8/14.4
C53 4030017460 S.CER C1005 JB 1H 102K-T B 37.5/10.9
C54 4030016790 S.CER C1005 JB 1E 103K-T B 39.3/10.9
C55 4030017490 S.CER C1608 JB 1A 105K-T B 33.5/16.6
C56 4030017430 S.CER C1005 CH 1H 101J-T B 39.9/13.1
C57 4030017460 S.CER C1005 JB 1H 102K-T B 40.5/14.9
C58 4030017420 S.CER C1005 CH 1H 470J-T B 44.6/11.3
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C59 4030017460 S.CER C1005 JB 1H 102K-T B 44.6/10.4
C60 4030017460 S.CER C1005 JB 1H 102K-T B 44.6/12.2
C63 4030017650 S.CER C1005 CH 1H 270J-T B 46.4/14.9
C64 4030016790 S.CER C1005 JB 1E 103K-T B 49.6/12.1
C65 4030017460 S.CER C1005 JB 1H 102K-T B 51.2/14
C71 4030017620 S.CER C1005 CH 1H 100C-T B 51.8/16.6
C72 4030017460 S.CER C1005 JB 1H 102K-T B 51.2/17.8
C73 4030017460 S.CER C1005 JB 1H 102K-T T 53/19.4
C74 4030017590 S.CER C1005 CH 1H 070C-T T 58/18.9
C75 4030017460 S.CER C1005 JB 1H 102K-T T 54.1/20.4
C76 4030017460 S.CER C1005 JB 1H 102K-T B 58.6/18.6
C77 4030017460 S.CER C1005 JB 1H 102K-T T 64.3/17.7
C78 4030017460 S.CER C1005 JB 1H 102K-T T 58.9/18.9
C79 4030016930 S.CER C1005 JB 1A 104K-T B 64.3/21
C80 4030017460 S.CER C1005 JB 1H 102K-T B 62.3/24.4
C81 4030017360 S.CER C1005 CH 1H 030B-T T 58.5/17.3
C83 4030017540 S.CER C1005 CH 1H R75B-T T 58.9/21.2
C85 4030017460 S.CER C1005 JB 1H 102K-T T 57.1/21.2
C86 4030017660 S.CER C1005 CH 1H 330J-T T 57/25.9
C87 4030017660 S.CER C1005 CH 1H 330J-T T 58/21.2
C88 4030017660 S.CER C1005 CH 1H 330J-T T 56.1/25.9
C89 4030017660 S.CER C1005 CH 1H 330J-T T 57.9/27.5
C90 4030017460 S.CER C1005 JB 1H 102K-T B 56.3/30.6
C93 4030017420 S.CER C1005 CH 1H 470J-T T 53.2/28.5
C94 4030017610 S.CER C1005 CH 1H 090C-T T 53.2/27.5
C101 4030017530 S.CER C1005 CH 1H 0R5B-T T 59.8/21.2
C102 4030016930 S.CER C1005 JB 1A 104K-T T 56.2/21.8
C103 4030017460 S.CER C1005 JB 1H 102K-T T 61.8/21.8
C104 4030017390 S.CER C1005 CH 1H 180J-T T 59.8/25.9
C105 4030017660 S.CER C1005 CH 1H 330J-T T 60.7/21.2
C106 4030017510 S.CER C1005 CH 1H 680J-T T 61.6/25.9
C107 4030017660 S.CER C1005 CH 1H 330J-T T 61.1/27.2
C108 4030016930 S.CER C1005 JB 1A 104K-T B 56.3/28.9
C111 4030017340 S.CER C1005 CH 1H 010B-T T 61.1/29.2
C112 4030017440 S.CER C1005 CH 1H 221J-T T 62.8/25.3
C113 4030017360 S.CER C1005 CH 1H 030B-T T 64.8/23.7
C114 4030017360 S.CER C1005 CH 1H 030B-T T 63.8/23.1
C115 4030017610 S.CER C1005 CH 1H 090C-T T 64.8/25.3
C116 4030018860 S.CER C1005 JB 0J 105K-T B 65.4/27.8
C117 4030017750 S.CER C1005 JB 1H 122K-T B 60.2/31.1
C118 4030017420 S.CER C1005 CH 1H 470J-T B 66.1/24.9
C120 4030017460 S.CER C1005 JB 1H 102K-T B 61.5/32.5
C121 4030019560 S.CER GRM21BB31C106KE15L B 61.1/19.7
C122 4030016790 S.CER C1005 JB 1E 103K-T B 61.1/17.6
C123 4030017460 S.CER C1005 JB 1H 102K-T B 48.8/28.4
C124 4030017460 S.CER C1005 JB 1H 102K-T B 54.7/30.5
C127 4030017440 S.CER C1005 CH 1H 221J-T B 62.8/30.9
C130 4030017420 S.CER C1005 CH 1H 470J-T B 59.9/21.6
C132 4550000560 S.TAN TEESVA 1V 334M8R T 48.9/29.5
C134 4550002980 S.TAN TEESVA 1C 225M8R T 46.7/29.5
C135 4550000560 S.TAN TEESVA 1V 334M8R T 47.9/20.5
C141 4030017620 S.CER C1005 CH 1H 100C-T B 51.4/19.3
C145 4030017460 S.CER C1005 JB 1H 102K-T B 48.3/23.8
C149 4030017460 S.CER C1005 JB 1H 102K-T T 46.1/21.4
C150 4030016930 S.CER C1005 JB 1A 104K-T T 43.1/20.3
C151 4030017460 S.CER C1005 JB 1H 102K-T T 43.1/19.4
C152 4030017460 S.CER C1005 JB 1H 102K-T T 43.1/18.5
C153 4030017420 S.CER C1005 CH 1H 470J-T T 44.5/32.6
C154 4030017420 S.CER C1005 CH 1H 470J-T T 43.6/32.6
C155 4030017420 S.CER C1005 CH 1H 470J-T T 42.7/32.6
C156 4030016930 S.CER C1005 JB 1A 104K-T T 48.6/32.6
C157 4030017460 S.CER C1005 JB 1H 102K-T T 41/19.4
C158 4030017620 S.CER C1005 CH 1H 100C-T T 39.2/19.4
C159 4030016930 S.CER C1005 JB 1A 104K-T T 40.1/10.9
C160 4030017460 S.CER C1005 JB 1H 102K-T T 41.9/10.9
C167 4030017630 S.CER C1005 CH 1H 120J-T B 48.8/21.5
C168 4030017630 S.CER C1005 CH 1H 120J-T B 47.9/21.5
C169 4030017620 S.CER C1005 CH 1H 100C-T B 48.2/20.2
C171 4030018120 S.CER C1005 CH 1H 110J-T B 16.2/18.5
C172 4030017640 S.CER C1005 CH 1H 150J-T B 13.9/22.2
C173 4030017460 S.CER C1005 JB 1H 102K-T B 13.4/24.8
C174 4030017580 S.CER C1005 CH 1H 060C-T B 12.4/24.8
C175 4030017580 S.CER C1005 CH 1H 060C-T B 13.4/26.5
C176 4030017430 S.CER C1005 CH 1H 101J-T B 16.4/25.8
C178 4030017550 S.CER C1005 CH 1H 1R5B-T B 17.9/29.1
C179 4030017370 S.CER C1005 CH 1H 3R5B-T B 19.4/27.7
C180 4030017430 S.CER C1005 CH 1H 101J-T B 19.4/25.8
C181 4030017370 S.CER C1005 CH 1H 3R5B-T B 22.8/27.8
C182 4030017460 S.CER C1005 JB 1H 102K-T T 19.2/21.7
C183 4030017460 S.CER C1005 JB 1H 102K-T B 18.4/24.1
C184 4030016930 S.CER C1005 JB 1A 104K-T B 17.4/24.1
C186 4030016930 S.CER C1005 JB 1A 104K-T B 21.7/30
C188 4030016930 S.CER C1005 JB 1A 104K-T B 25.3/30
C189 4030017460 S.CER C1005 JB 1H 102K-T B 27.1/23.9
C191 4030016790 S.CER C1005 JB 1E 103K-T B 28.7/28.7
C192 4030017460 S.CER C1005 JB 1H 102K-T B 26.2/25.6
C193 4030017460 S.CER C1005 JB 1H 102K-T B 25.3/25.6
C195 4030017570 S.CER C1005 CH 1H 040B-T B 28.2/27.5
C196 4030017460 S.CER C1005 JB 1H 102K-T B 29.2/25.6
C197 4030017550 S.CER C1005 CH 1H 1R5B-T B 31/29.8
C198 4030017460 S.CER C1005 JB 1H 102K-T B 31.9/25.6
C199 4030017380 S.CER C1005 CH 1H 050B-T B 34.4/26.8
C200 4030017580 S.CER C1005 CH 1H 060C-T B 34.4/28.5
C201 4030017460 S.CER C1005 JB 1H 102K-T T 31.8/23.2
C202 4030017460 S.CER C1005 JB 1H 102K-T B 29.2/23.9
C203 4030016930 S.CER C1005 JB 1A 104K-T B 30.1/23.9
C206 4030017620 S.CER C1005 CH 1H 100C-T B 47.4/16.6
C210 4030017630 S.CER C1005 CH 1H 120J-T B 35.4/25.1
C211 4030017460 S.CER C1005 JB 1H 102K-T B 34.4/23.5
C214 4030017460 S.CER C1005 JB 1H 102K-T B 37.4/25.1
C215 4030017390 S.CER C1005 CH 1H 180J-T B 42.2/27.7
C216 4030017460 S.CER C1005 JB 1H 102K-T B 41.4/25.1
C217 4030016790 S.CER C1005 JB 1E 103K-T B 40.4/25.1
C218 4030016790 S.CER C1005 JB 1E 103K-T B 37.7/29.8
C220 4030017590 S.CER C1005 CH 1H 070C-T B 40.4/34.6
