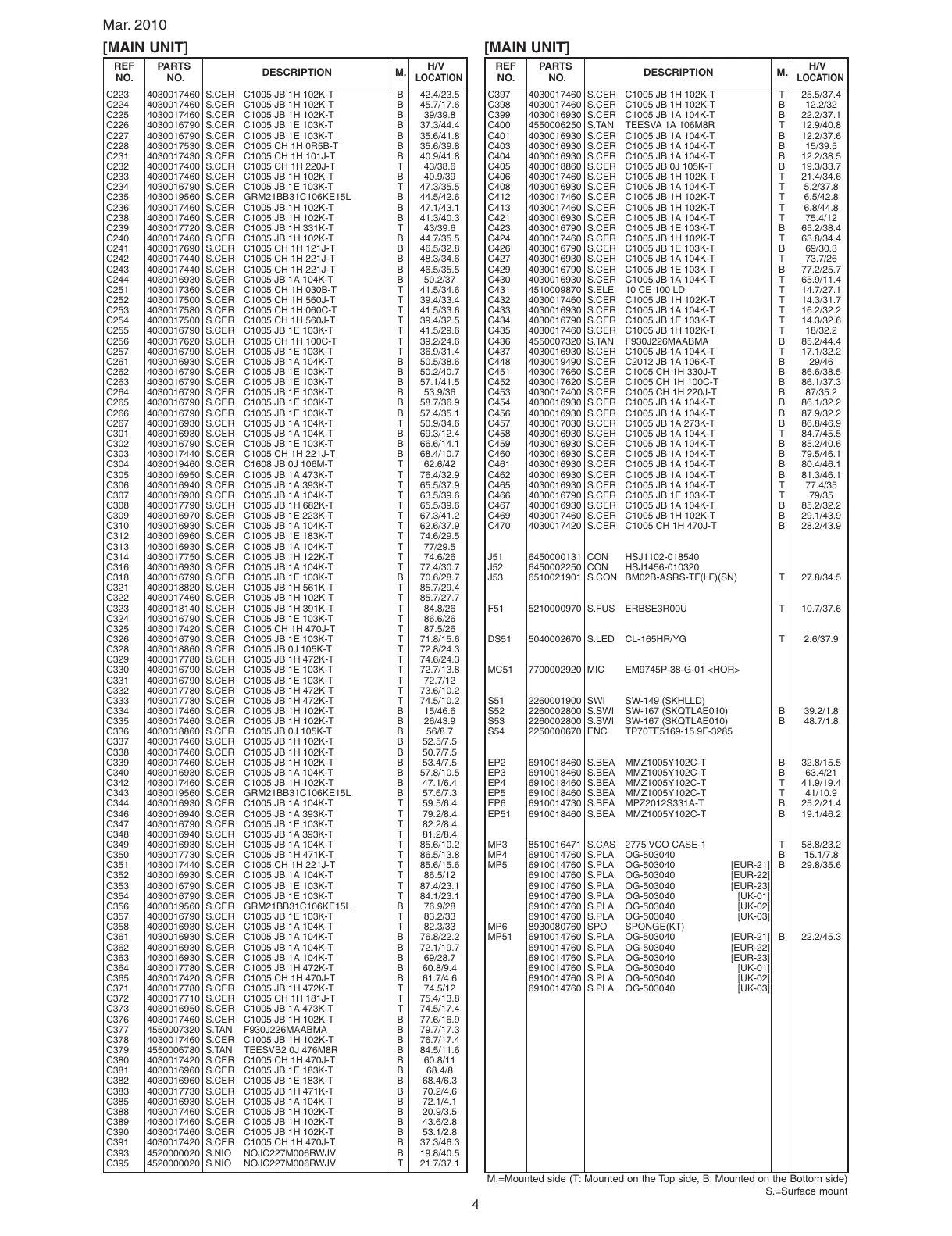

Icom IC-F3003 Service Manual Addendum

Mar. 2010
4
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C223 4030017460 S.CER C1005 JB 1H 102K-T B 42.4/23.5
C224 4030017460 S.CER C1005 JB 1H 102K-T B 45.7/17.6
C225 4030017460 S.CER C1005 JB 1H 102K-T B 39/39.8
C226 4030016790 S.CER C1005 JB 1E 103K-T B 37.3/44.4
C227 4030016790 S.CER C1005 JB 1E 103K-T B 35.6/41.8
C228 4030017530 S.CER C1005 CH 1H 0R5B-T B 35.6/39.8
C231 4030017430 S.CER C1005 CH 1H 101J-T B 40.9/41.8
C232 4030017400 S.CER C1005 CH 1H 220J-T T 43/38.6
C233 4030017460 S.CER C1005 JB 1H 102K-T B 40.9/39
C234 4030016790 S.CER C1005 JB 1E 103K-T T 47.3/35.5
C235 4030019560 S.CER GRM21BB31C106KE15L B 44.5/42.6
C236 4030017460 S.CER C1005 JB 1H 102K-T B 47.1/43.1
C238 4030017460 S.CER C1005 JB 1H 102K-T B 41.3/40.3
C239 4030017720 S.CER C1005 JB 1H 331K-T T 43/39.6
C240 4030017460 S.CER C1005 JB 1H 102K-T B 44.7/35.5
C241 4030017690 S.CER C1005 CH 1H 121J-T B 46.5/32.8
C242 4030017440 S.CER C1005 CH 1H 221J-T B 48.3/34.6
C243 4030017440 S.CER C1005 CH 1H 221J-T B 46.5/35.5
C244 4030016930 S.CER C1005 JB 1A 104K-T B 50.2/37
C251 4030017360 S.CER C1005 CH 1H 030B-T T 41.5/34.6
C252 4030017500 S.CER C1005 CH 1H 560J-T T 39.4/33.4
C253 4030017580 S.CER C1005 CH 1H 060C-T T 41.5/33.6
C254 4030017500 S.CER C1005 CH 1H 560J-T T 39.4/32.5
C255 4030016790 S.CER C1005 JB 1E 103K-T T 41.5/29.6
C256 4030017620 S.CER C1005 CH 1H 100C-T T 39.2/24.6
C257 4030016790 S.CER C1005 JB 1E 103K-T T 36.9/31.4
C261 4030016930 S.CER C1005 JB 1A 104K-T B 50.5/38.6
C262 4030016790 S.CER C1005 JB 1E 103K-T B 50.2/40.7
C263 4030016790 S.CER C1005 JB 1E 103K-T B 57.1/41.5
C264 4030016790 S.CER C1005 JB 1E 103K-T B 53.9/36
C265 4030016790 S.CER C1005 JB 1E 103K-T B 58.7/36.9
C266 4030016790 S.CER C1005 JB 1E 103K-T B 57.4/35.1
C267 4030016930 S.CER C1005 JB 1A 104K-T T 50.9/34.6
C301 4030016930 S.CER C1005 JB 1A 104K-T B 69.3/12.4
C302 4030016790 S.CER C1005 JB 1E 103K-T B 66.6/14.1
C303 4030017440 S.CER C1005 CH 1H 221J-T B 68.4/10.7
C304 4030019460 S.CER C1608 JB 0J 106M-T T 62.6/42
C305 4030016950 S.CER C1005 JB 1A 473K-T T 76.4/32.9
C306 4030016940 S.CER C1005 JB 1A 393K-T T 65.5/37.9
C307 4030016930 S.CER C1005 JB 1A 104K-T T 63.5/39.6
C308 4030017790 S.CER C1005 JB 1H 682K-T T 65.5/39.6
C309 4030016970 S.CER C1005 JB 1E 223K-T T 67.3/41.2
C310 4030016930 S.CER C1005 JB 1A 104K-T T 62.6/37.9
C312 4030016960 S.CER C1005 JB 1E 183K-T T 74.6/29.5
C313 4030016930 S.CER C1005 JB 1A 104K-T T 77/29.5
C314 4030017750 S.CER C1005 JB 1H 122K-T T 74.6/26
C316 4030016930 S.CER C1005 JB 1A 104K-T T 77.4/30.7
C318 4030016790 S.CER C1005 JB 1E 103K-T B 70.6/28.7
C321 4030018820 S.CER C1005 JB 1H 561K-T T 85.7/29.4
C322 4030017460 S.CER C1005 JB 1H 102K-T T 85.7/27.7
C323 4030018140 S.CER C1005 JB 1H 391K-T T 84.8/26
C324 4030016790 S.CER C1005 JB 1E 103K-T T 86.6/26
C325 4030017420 S.CER C1005 CH 1H 470J-T T 87.5/26
C326 4030016790 S.CER C1005 JB 1E 103K-T T 71.8/15.6
C328 4030018860 S.CER C1005 JB 0J 105K-T T 72.8/24.3
C329 4030017780 S.CER C1005 JB 1H 472K-T T 74.6/24.3
C330 4030016790 S.CER C1005 JB 1E 103K-T T 72.7/13.8
C331 4030016790 S.CER C1005 JB 1E 103K-T T 72.7/12
C332 4030017780 S.CER C1005 JB 1H 472K-T T 73.6/10.2
C333 4030017780 S.CER C1005 JB 1H 472K-T T 74.5/10.2
C334 4030017460 S.CER C1005 JB 1H 102K-T B 15/46.6
C335 4030017460 S.CER C1005 JB 1H 102K-T B 26/43.9
C336 4030018860 S.CER C1005 JB 0J 105K-T B 56/8.7
C337 4030017460 S.CER C1005 JB 1H 102K-T B 52.5/7.5
C338 4030017460 S.CER C1005 JB 1H 102K-T B 50.7/7.5
C339 4030017460 S.CER C1005 JB 1H 102K-T B 53.4/7.5
C340 4030016930 S.CER C1005 JB 1A 104K-T B 57.8/10.5
C342 4030017460 S.CER C1005 JB 1H 102K-T B 47.1/6.4
C343 4030019560 S.CER GRM21BB31C106KE15L B 57.6/7.3
C344 4030016930 S.CER C1005 JB 1A 104K-T T 59.5/6.4
C346 4030016940 S.CER C1005 JB 1A 393K-T T 79.2/8.4
C347 4030016790 S.CER C1005 JB 1E 103K-T T 82.2/8.4
C348 4030016940 S.CER C1005 JB 1A 393K-T T 81.2/8.4
C349 4030016930 S.CER C1005 JB 1A 104K-T T 85.6/10.2
C350 4030017730 S.CER C1005 JB 1H 471K-T T 86.5/13.8
C351 4030017440 S.CER C1005 CH 1H 221J-T T 85.6/15.6
C352 4030016930 S.CER C1005 JB 1A 104K-T T 86.5/12
C353 4030016790 S.CER C1005 JB 1E 103K-T T 87.4/23.1
C354 4030016790 S.CER C1005 JB 1E 103K-T T 84.1/23.1
C356 4030019560 S.CER GRM21BB31C106KE15L B 76.9/28
C357 4030016790 S.CER C1005 JB 1E 103K-T T 83.2/33
C358 4030016930 S.CER C1005 JB 1A 104K-T T 82.3/33
C361 4030016930 S.CER C1005 JB 1A 104K-T B 76.8/22.2
C362 4030016930 S.CER C1005 JB 1A 104K-T B 72.1/19.7
C363 4030016930 S.CER C1005 JB 1A 104K-T B 69/28.7
C364 4030017780 S.CER C1005 JB 1H 472K-T B 60.8/9.4
C365 4030017420 S.CER C1005 CH 1H 470J-T B 61.7/4.6
C371 4030017780 S.CER C1005 JB 1H 472K-T T 74.5/12
C372 4030017710 S.CER C1005 CH 1H 181J-T T 75.4/13.8
C373 4030016950 S.CER C1005 JB 1A 473K-T T 74.5/17.4
C376 4030017460 S.CER C1005 JB 1H 102K-T B 77.6/16.9
C377 4550007320 S.TAN F930J226MAABMA B 79.7/17.3
C378 4030017460 S.CER C1005 JB 1H 102K-T B 76.7/17.4
C379 4550006780 S.TAN TEESVB2 0J 476M8R B 84.5/11.6
C380 4030017420 S.CER C1005 CH 1H 470J-T B 60.8/11
C381 4030016960 S.CER C1005 JB 1E 183K-T B 68.4/8
C382 4030016960 S.CER C1005 JB 1E 183K-T B 68.4/6.3
C383 4030017730 S.CER C1005 JB 1H 471K-T B 70.2/4.6
C385 4030016930 S.CER C1005 JB 1A 104K-T B 72.1/4.1
C388 4030017460 S.CER C1005 JB 1H 102K-T B 20.9/3.5
C389 4030017460 S.CER C1005 JB 1H 102K-T B 43.6/2.8
C390 4030017460 S.CER C1005 JB 1H 102K-T B 53.1/2.8
C391 4030017420 S.CER C1005 CH 1H 470J-T B 37.3/46.3
C393 4520000020 S.NIO NOJC227M006RWJV B 19.8/40.5
C395 4520000020 S.NIO NOJC227M006RWJV T 21.7/37.1
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount
REF PARTS
DESCRIPTION M.
H/V
NO. NO.
LOCATION
[MAIN UNIT]
C397 4030017460 S.CER C1005 JB 1H 102K-T T 25.5/37.4
C398 4030017460 S.CER C1005 JB 1H 102K-T B 12.2/32
C399 4030016930 S.CER C1005 JB 1A 104K-T B 22.2/37.1
C400 4550006250 S.TAN TEESVA 1A 106M8R T 12.9/40.8
C401 4030016930 S.CER C1005 JB 1A 104K-T B 12.2/37.6
C403 4030016930 S.CER C1005 JB 1A 104K-T B 15/39.5
C404 4030016930 S.CER C1005 JB 1A 104K-T B 12.2/38.5
C405 4030018860 S.CER C1005 JB 0J 105K-T B 19.3/33.7
C406 4030017460 S.CER C1005 JB 1H 102K-T T 21.4/34.6
C408 4030016930 S.CER C1005 JB 1A 104K-T T 5.2/37.8
C412 4030017460 S.CER C1005 JB 1H 102K-T T 6.5/42.8
C413 4030017460 S.CER C1005 JB 1H 102K-T T 6.8/44.8
C421 4030016930 S.CER C1005 JB 1A 104K-T T 75.4/12
C423 4030016790 S.CER C1005 JB 1E 103K-T B 65.2/38.4
C424 4030017460 S.CER C1005 JB 1H 102K-T T 63.8/34.4
C426 4030016790 S.CER C1005 JB 1E 103K-T B 69/30.3
C427 4030016930 S.CER C1005 JB 1A 104K-T T 73.7/26
C429 4030016790 S.CER C1005 JB 1E 103K-T B 77.2/25.7
C430 4030016930 S.CER C1005 JB 1A 104K-T T 65.9/11.4
C431 4510009870 S.ELE 10 CE 100 LD T 14.7/27.1
C432 4030017460 S.CER C1005 JB 1H 102K-T T 14.3/31.7
C433 4030016930 S.CER C1005 JB 1A 104K-T T 16.2/32.2
C434 4030016790 S.CER C1005 JB 1E 103K-T T 14.3/32.6
C435 4030017460 S.CER C1005 JB 1H 102K-T T 18/32.2
C436 4550007320 S.TAN F930J226MAABMA B 85.2/44.4
C437 4030016930 S.CER C1005 JB 1A 104K-T T 17.1/32.2
C448 4030019490 S.CER C2012 JB 1A 106K-T B 29/46
C451 4030017660 S.CER C1005 CH 1H 330J-T B 86.6/38.5
C452 4030017620 S.CER C1005 CH 1H 100C-T B 86.1/37.3
C453 4030017400 S.CER C1005 CH 1H 220J-T B 87/35.2
C454 4030016930 S.CER C1005 JB 1A 104K-T B 86.1/32.2
C456 4030016930 S.CER C1005 JB 1A 104K-T B 87.9/32.2
C457 4030017030 S.CER C1005 JB 1A 273K-T B 86.8/46.9
C458 4030016930 S.CER C1005 JB 1A 104K-T T 84.7/45.5
C459 4030016930 S.CER C1005 JB 1A 104K-T B 85.2/40.6
C460 4030016930 S.CER C1005 JB 1A 104K-T B 79.5/46.1
C461 4030016930 S.CER C1005 JB 1A 104K-T B 80.4/46.1
C462 4030016930 S.CER C1005 JB 1A 104K-T B 81.3/46.1
C465 4030016930 S.CER C1005 JB 1A 104K-T T 77.4/35
C466 4030016790 S.CER C1005 JB 1E 103K-T T 79/35
C467 4030016930 S.CER C1005 JB 1A 104K-T B 85.2/32.2
C469 4030017460 S.CER C1005 JB 1H 102K-T B 29.1/43.9
C470 4030017420 S.CER C1005 CH 1H 470J-T B 28.2/43.9
J51 6450000131 CON HSJ1102-018540
J52 6450002250 CON HSJ1456-010320
J53 6510021901 S.CON BM02B-ASRS-TF(LF)(SN) T 27.8/34.5
F51 5210000970 S.FUS ERBSE3R00U T 10.7/37.6
DS51 5040002670 S.LED CL-165HR/YG T 2.6/37.9
MC51 7700002920 MIC EM9745P-38-G-01 <HOR>
S51 2260001900 SWI SW-149 (SKHLLD)
S52 2260002800 S.SWI SW-167 (SKQTLAE010) B 39.2/1.8
S53 2260002800 S.SWI SW-167 (SKQTLAE010) B 48.7/1.8
S54 2250000670 ENC TP70TF5169-15.9F-3285
EP2 6910018460 S.BEA MMZ1005Y102C-T B 32.8/15.5
EP3 6910018460 S.BEA MMZ1005Y102C-T B 63.4/21
EP4 6910018460 S.BEA MMZ1005Y102C-T T 41.9/19.4
EP5 6910018460 S.BEA MMZ1005Y102C-T T 41/10.9
EP6 6910014730 S.BEA MPZ2012S331A-T B 25.2/21.4
EP51 6910018460 S.BEA MMZ1005Y102C-T B 19.1/46.2
MP3 8510016471 S.CAS 2775 VCO CASE-1 T 58.8/23.2
MP4 6910014760 S.PLA OG-503040 B 15.1/7.8
MP5 6910014760 S.PLA OG-503040 [EUR-21] B 29.8/35.6
6910014760 S.PLA OG-503040 [EUR-22]
6910014760 S.PLA OG-503040 [EUR-23]
6910014760 S.PLA OG-503040 [UK-01]
6910014760 S.PLA OG-503040 [UK-02]
6910014760 S.PLA OG-503040 [UK-03]
MP6 8930080760 SPO SPONGE(KT)
MP51 6910014760 S.PLA OG-503040 [EUR-21] B 22.2/45.3
6910014760 S.PLA OG-503040 [EUR-22]
6910014760 S.PLA OG-503040 [EUR-23]
6910014760 S.PLA OG-503040 [UK-01]
6910014760 S.PLA OG-503040 [UK-02]
6910014760 S.PLA OG-503040 [UK-03]
