Icom IC-F3030 Series User Manual

18
4
BATTERY CHARGING
4

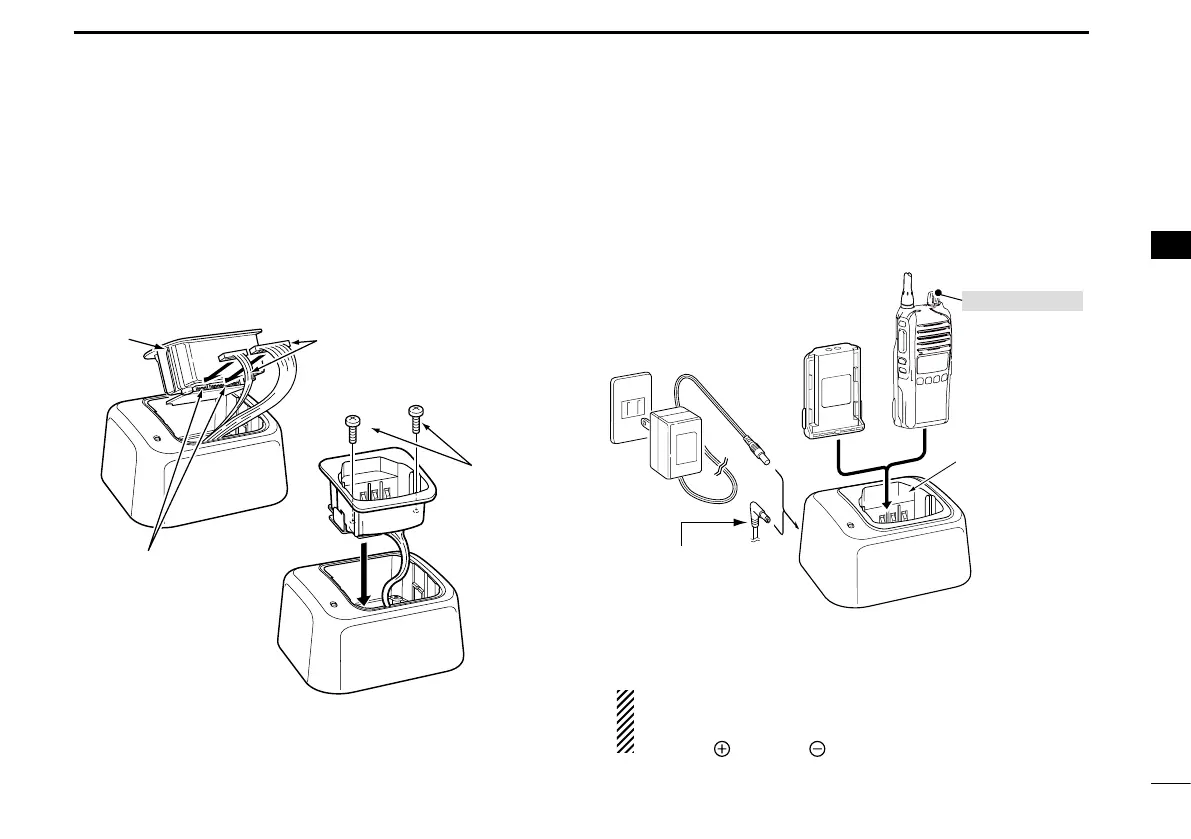

D AD-106 installation
The AD-106 charger adapter must be installed into the BC-
119N or BC-121N before battery charging.
q Connect the AD-106
charger adapter and the BC-119N
or BC-121N.
w Install the AD-106 into the holder space of the BC-119N or
BC-121N with the supplied screws.
Screws
supplied
with the
charger
adapter
AD-106
Plugs
Sockets
q
w
* This illustration is described with the BC-119N.
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of the Li-ion
battery pack. The following items are additionally required.
• AD-106 charger adapter
• A power adapter (may be supplied with BC-119N depending on
version) or the DC power cable (OPC-515L/CP-23L).
AD-106 charger
adapter is installed
in BC-119N.
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the power adapter.
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Transceiver
Battery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
*
