23
BATTERY CASE
7
■ BP-240 optional battery case
When using the BP-240 battery case, install six AAA (LR03)
size alkaline batteries, as illustrated to the right. The BP-240
is constructed to the IPX4 waterproof standard.

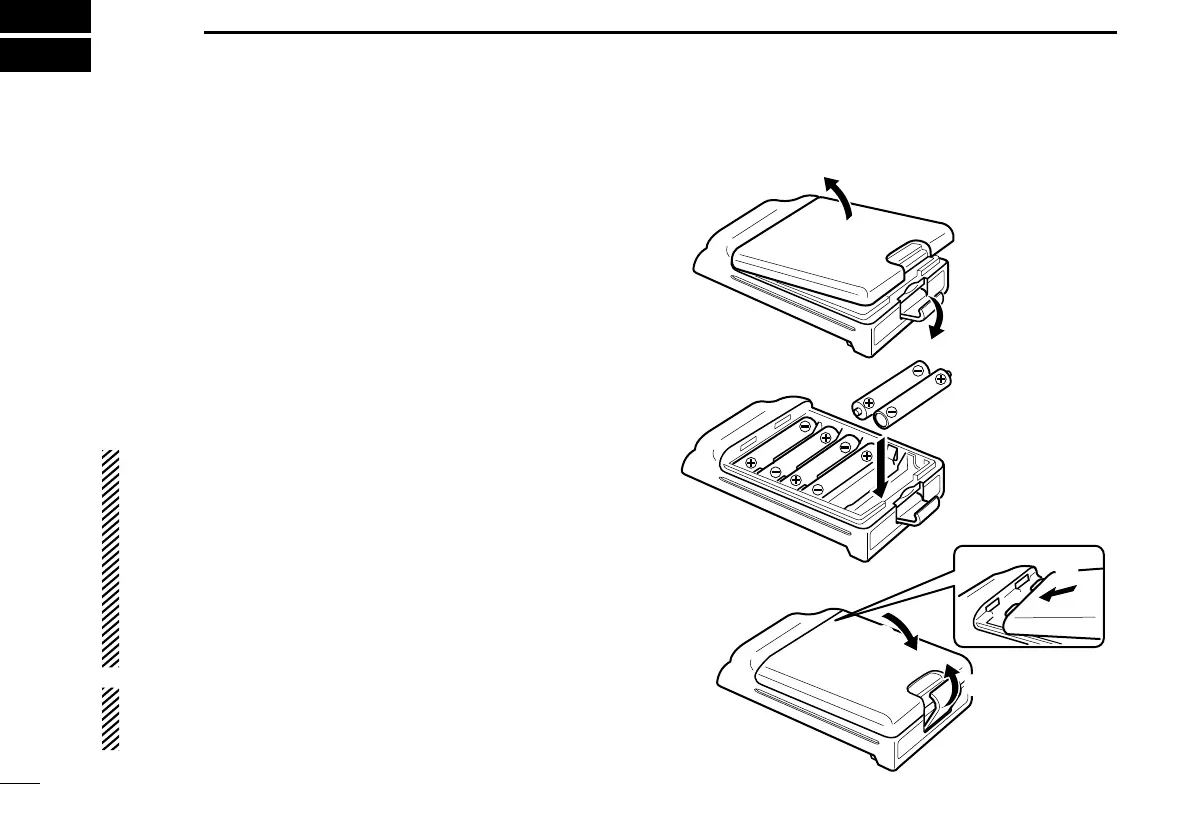

q Unhook the battery cover release hook (q), and open the
cover in the direction of the arrow (w). (Fig.1)
w Install six AAA (LR03) size alkaline batteries. (Fig.2)
• Install only alkaline batteries.
• Be sure to observe the correct polarity.
e Replace the cover in the direction of the arrow (e), then
close (r). Push the battery cover release hook until it
makes a ‘click’ sound (t). (Fig.3)
CAUTION:
• When installing the batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery terminals clean. It’s a good idea to occa-
sionally clean them.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
•
Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the
battery type must be set to “DRY BATT” when turning ON
the transceiver. (p. 8)
q
BP-240
w
Fig.2
Fig.3
e
r
t
