BATTERY CHARGING
■ Battery chargers

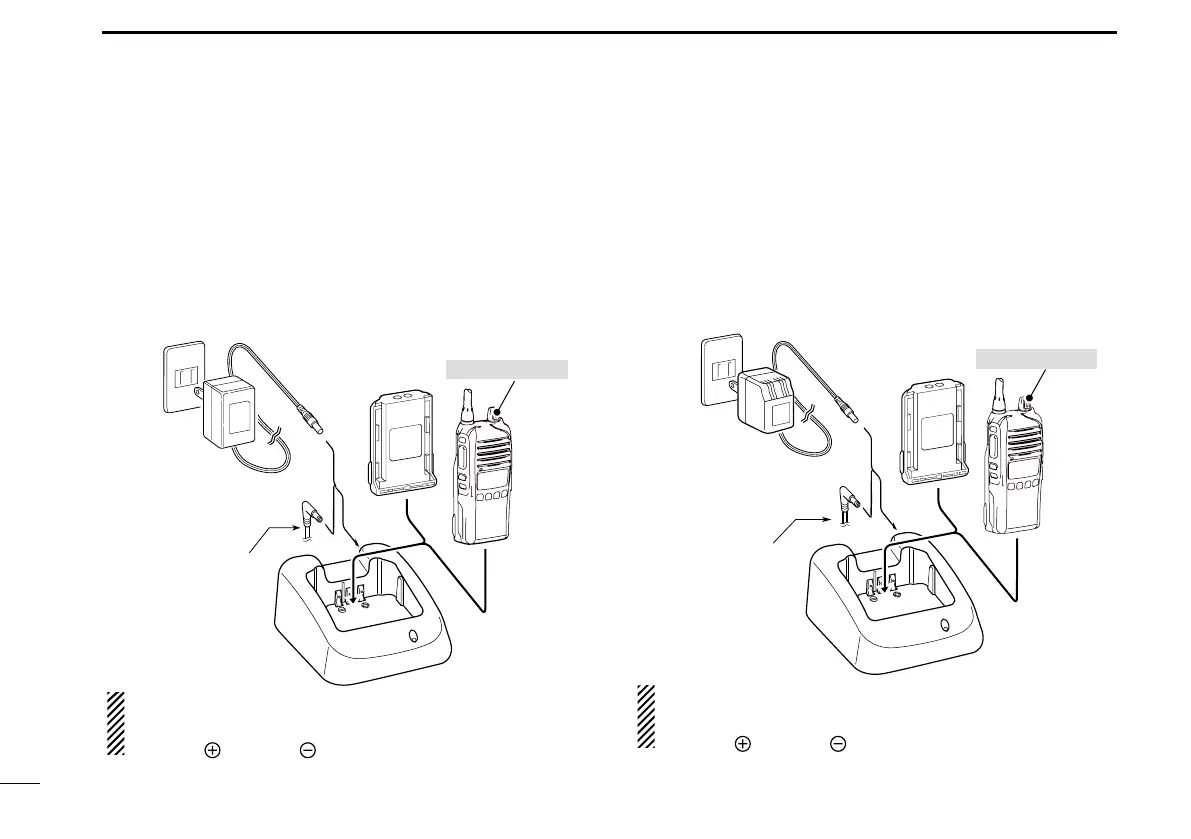

D Rapid charging with the BC-160
The supplied or optional BC-160 provides rapid charging of
the Li-ion battery pack.
The following item is additionally required:
• A power adapter (may be supplied with the charger, depending on
the charger version) or the OPC-515L/CP-23L DC power cable.
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the power adapter.
*
Transceiver
Battery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
D Regular charging with the BC-171
The optional BC-171 provides regular charging of the Li-ion
battery pack.
• A power adapter (may be supplied with BC-171 depending on ver-
sion) or the DC power cable (OPC-515L/CP-23L) is additionally
required.
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the power adapter.
*
Power adapter
(A different type, or no
power adapter is supplied,
depending on the version.)
Transceiver
Battery
pack
Tu rn power OFF
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line
:
*
