BATTERY CHARGING
5
■ Battery chargers
D Using the BC-191 to rapid charge the BP-264
The BC-191 provides rapid charging of the Ni-MH battery pack
(BP-264 only). Never use for any other battery pack.
Charging time for the BP-264: Approximately 2 hours.
The following item is additionally required:
• A power adapter (not supplied with some versions) or the DC
power cable (OPC-515L/CP-23L).

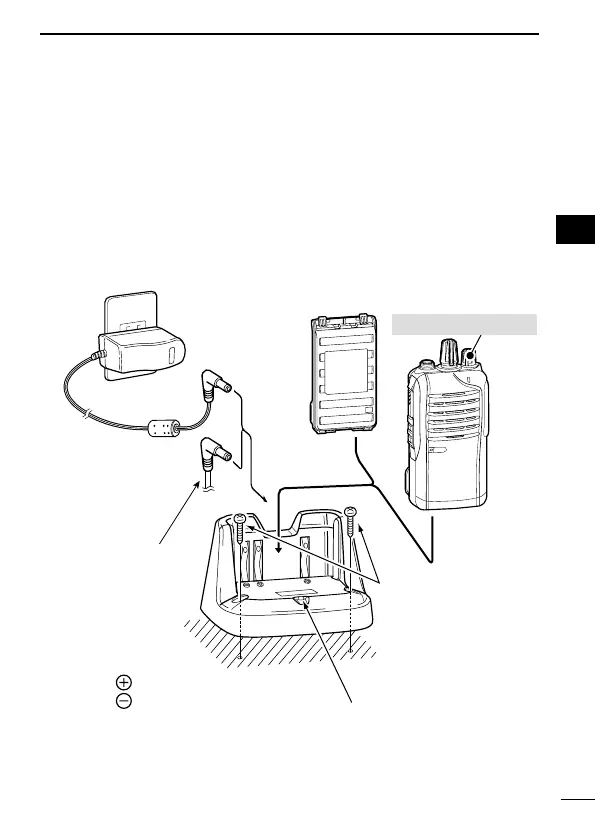

Status indicator
• Lights orange:
While charging.
• Lights green:
Charging is completed.
Po
wer adapter
(A
different type,
or no power
adapter is sup-
plied, depending
on the version.)
About OPC-515L
White line:
Black line
:
CAUTION: NEVER connect the
OPC-515L to a power source
using reverse polarity.
This will ruin the battery charger.
*
Battery packTransceiver
Tu rn OFF the power
Optional OPC-515L*
(for power source) or
CP-23L (for 12 V cig-
arette lighter socket)
can be used instead
of the power adapter.
Screws*
( Self tapping screw:
M3.5 × at least 30 mm)
*Purchase separately.
Using screws is recom-
mended to secure the
charger.
