BATTERY CHARGING

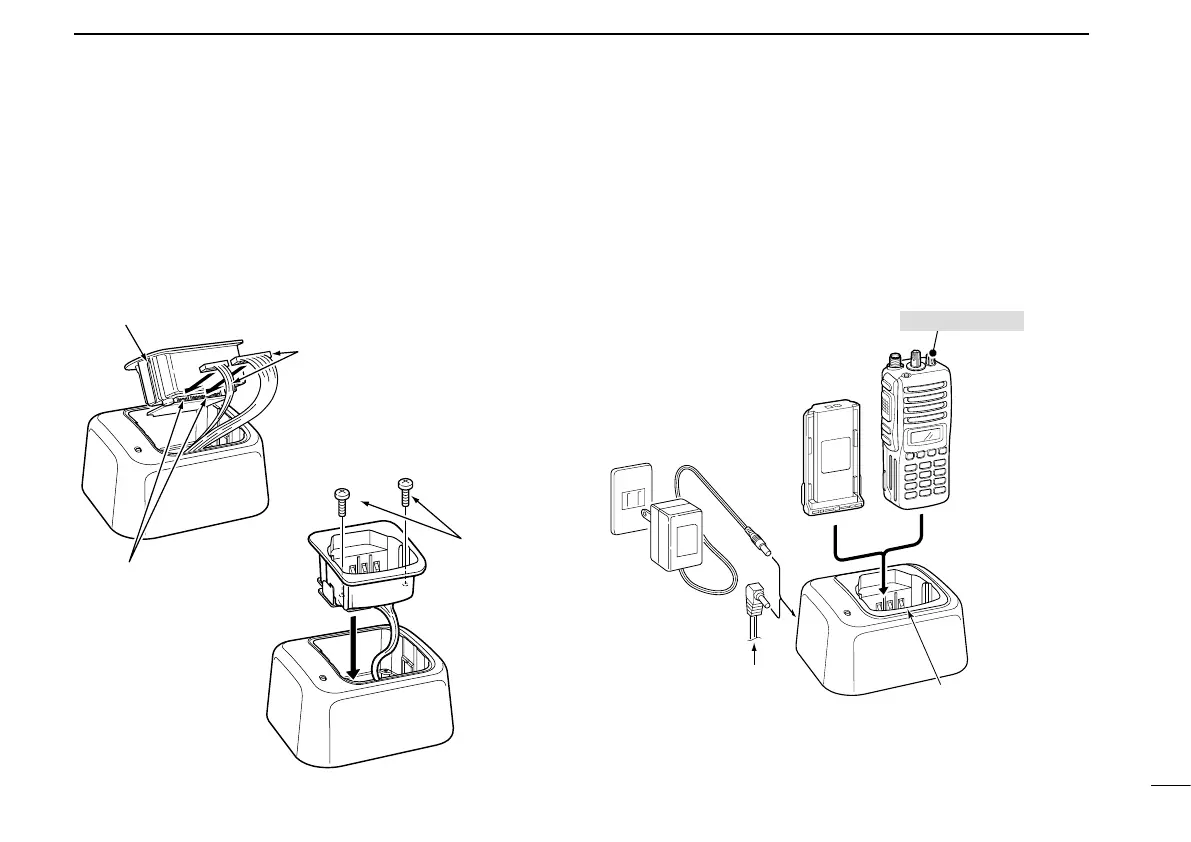

D AD-106 installation
q Install the AD-106 desktop charger adapter into the hold-
er space of the BC-119N/BC-121N.
w Connect the plugs of the BC-119N/BC-121N to the
AD-106 desktop charger adapter with the connector,
then install the adapter into the charger with the supplied
screws.
D Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with BC-119N depending
on version) or the DC power cable (OPC-515L/CP-17L).
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L (for 13.8 V
power source) or CP-17L (for
12 V cigarette lighter socket)
can be used instead of the AC
adapter.
TRANSCEIVER
BATTERY
PACK
Turn power OFF
Screws supplied
with the charger
adapter
AD-106
Connectors
Plugs
q
w
