EP1 0800006730 Battery BP-227 1
EP2 3310003150 Antenna FA-S27U ACC [L] 1
3310003170 Antenna FA-S56U ACC [H] 1
MP1 8930061480 Clip MB-98 ACC 1
MP2 8210017071 2337 C-Panel-1 1
MP3 8810009270 Screw M3 x 4 SUS ZK 1
MP4 8310060530 2681 key-sticker 1
MP4 8510016150 2682 shield plate 1
MP10 8930062950 Shield sponge (AF) [EUR2], [EUR8] 1

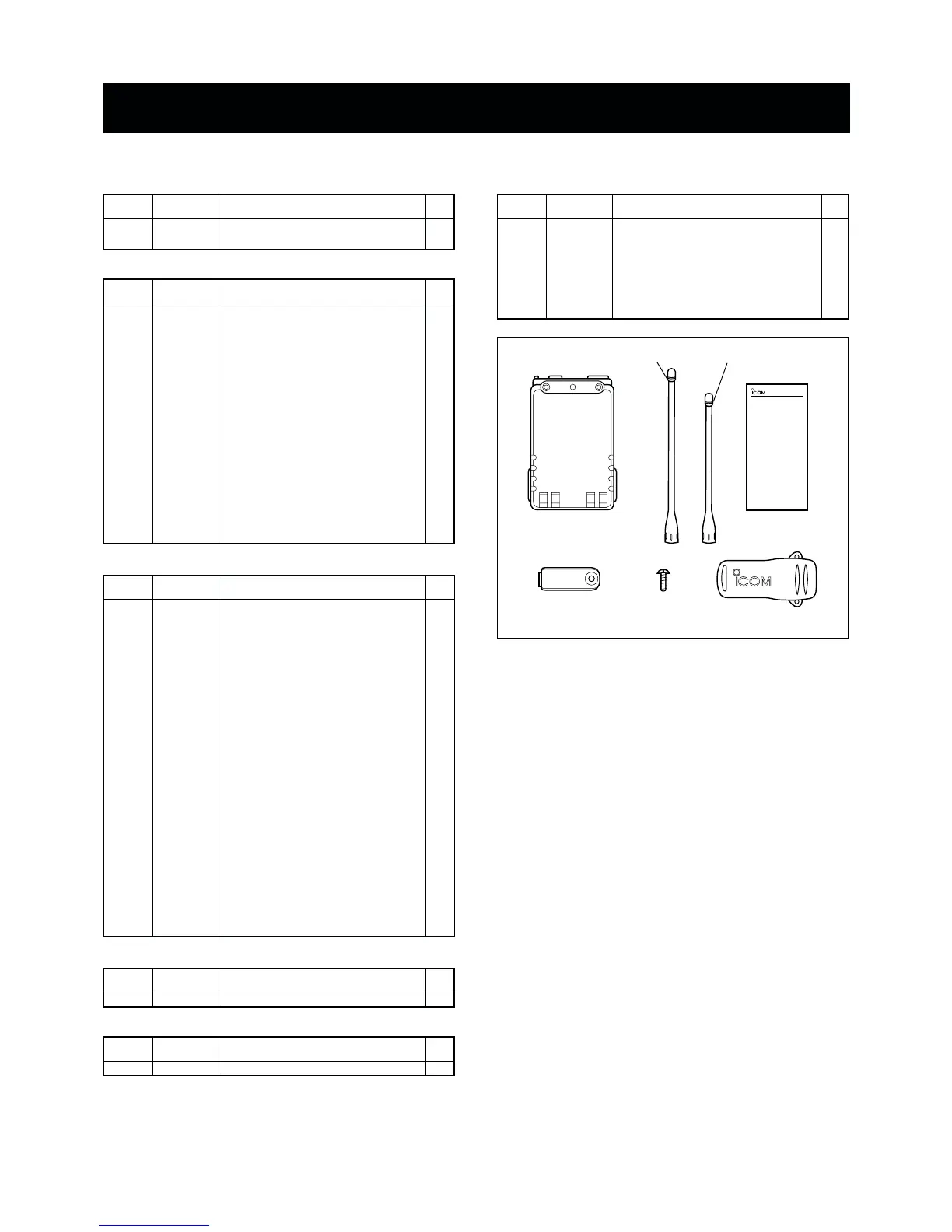

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7 - 1
REF. NO. ORDER NO. DESCRIPTION QTY.
MP701 8950005520 2403 9-pin connector 1
REF. NO. ORDER NO.
DESCRIPTION
QTY.
R601 7210003130 TP76N97N-13F-10KA-2497 1
REF. NO. ORDER NO. DESCRIPTION QTY.
DS401 5030002630 L3-0048TAY-2 1
EP402 8930061530 SRCN-2681-SP-N-W 2
SP401 2510001092 036D0801B 1
W401 8900011880 OPC-1210 1
MP401 8210019860 2681 front panel 1
MP404 8930060540 2681 4-2 Key board 1
MP405 8210019880 2681 PTT button 1
MP406 8930060550 2681 PTT plate 1
MP407 8930060711 2681 PTT rubber-1 1
MP408 8310059540 2681 LCD plate 1
MP410 8210019890 2681 Reflector 1
MP411 8310059530 2681 window plate 1
MP412 8930060860 2681 window sheet 1
MP413 8930059360 2600 release button 1
MP414 8930055761 2403 release plate 1
MP415 8930056540 Spring (AH) 2
MP417 8930055730 2403 connector seal 1
MP418 8930055890 2403 connector sheet 1
MP419 8930056430 2403 9-pin sheet 1
MP421 8610011380 Knob N-313 1
MP423 8930061110 2681 mic tape 1
MP424 8810009510 Screw B0 2 x 4 NI-ZU (BT) 4
MP426 8930061200 2681 mic rubber 1
MP429 8930062240 Sponge (HM) 1
J1 6910015630 2682 ant connector 1
MP1 8010019290 2681 chassis 1
MP2 8950005511 2403 contact spring -1 1
MP3 8930058561 2403 A-main seal-1 1
MP4 8930059800 2600 pet sheet 1
MP5 8930059830 2600 sheet 1
MP6 8930051500 O ring (AB) 1
MP7 8930055870 O ring (AO) 1
MP8 8930058550 O ring (AS) 1
MP9 8830001600 Screw nut (L) 1
MP10 8830001470 VR nut (N) 1
MP11 8850001880 Sealing washer (W) 2
MP12 8810009510 Screw B0 2 x 4 NI-ZU (BT) 7
MP13 8810007890 Screw B0 2 x 4 SUS 1
MP14 8810010120 Screw B0 2 x 8 SUS ZK 2
MP15 8810010190 Screw M2 x 4 SUS ZK 3
REF. NO. ORDER NO.
DESCRIPTION
QTY.
REF. NO. ORDER NO. DESCRIPTION QTY.
Screw abbreviations B0, BT: Self-tapping
ZK: Black
SUS: Stainless
NI-ZU: Nickel-zinc
7-1 CABINET PARTS
[FRONT UNIT]
[VR UNIT]
[CONNECTOR UNIT]
[MAIN UNIT]
[CHASSIS PARTS]
REF. NO. ORDER NO. DESCRIPTION QTY.
[ACCESSORIES]
EP1
EP2
MP4
MP3MP2 MP1
Color: blue
Color: green
[H] antenna: Color is blue.
[L] antenna: Color is green.
