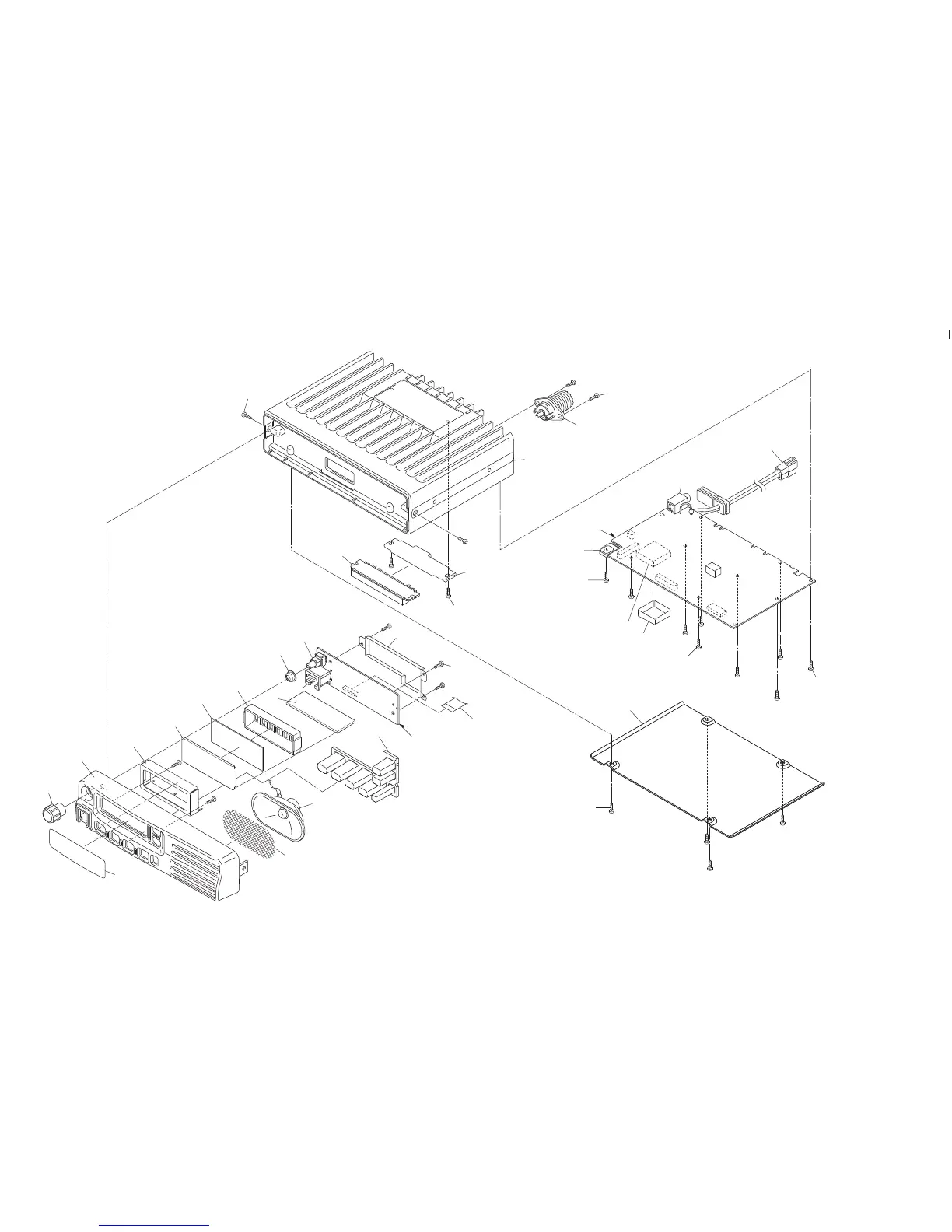

Icom IC-F5022 - Page 29

8 - 2
MP8 (C) x2
R14 (F)
J1 (F)
MP10 (F)
MP12 (F)
EP2 (F)
W1 (F)
MP3 (F)
FRONT UNIT
Unit abbreviations (F): FRONT UNIT
(MA): MAIN-A UNIT
(C): CHASSIS PARTS
MP5 (F)
MP9 (F)
DS11 (F)
MP2 (F)
MP6 (F)
MP1 (F)
SP1 (F)
MP11 (F)
MP5 (C) x2
MP3 (MA)
MP1 (C)
J1 (C)
MP4 (C) x2
MAIN UNIT
MP3 (C) x8
MP2 (C)
MP7 (C) x4
MP3 (C)
MP2 (MA)
MP1 (MA)
MP6 (C)
J4 (MA)
W2 (MA)
IC8 (MA)
IC3 (MA)
MP8 (F)
MP13 (F) x3
