3 - 1

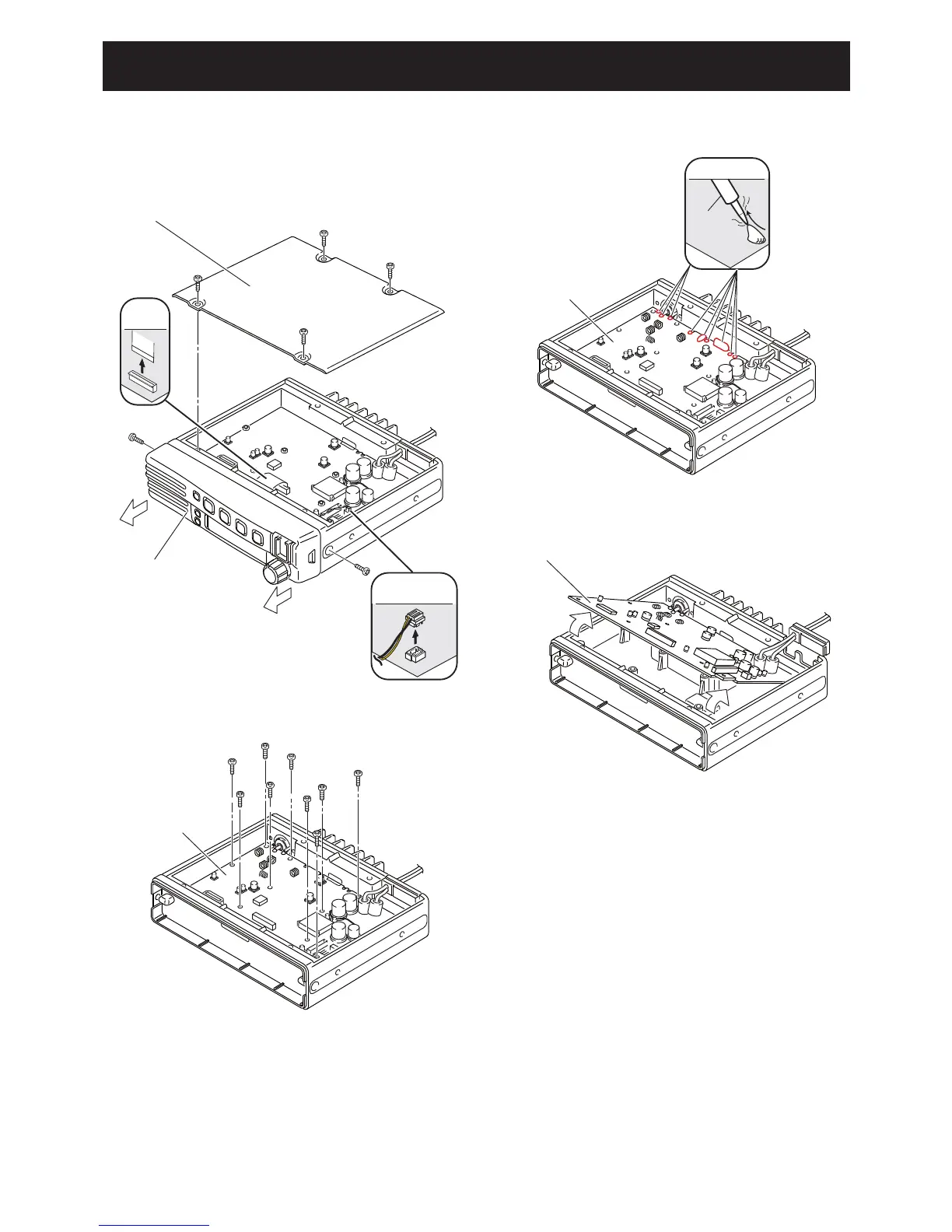

SECTION 3
.
DISASSEMBLY INSTRUCTION
FLAT
CABLE
TOP COVER
FRONT PANEL
SPEAKER
CABLE
MAIN UNIT
UNSOLDER
Solder
remover
MAIN UNIT
MAIN UNIT
1) Unscrew 4 screws from the top cover, and remove the top
cover.
2) Disconnect the fl at cable and speaker cable.
3) Unscrew 2 screws from the both sides, and remove the
front panel in the direction of the arrow.
5) Unscrew 9 screws from the MAIN UNIT.
6) Unsolder total of 9 points; 3 points at the antenna
connector, 6 points at the PA module.
7) Take off the MAIN UNIT from the CHASSIS.
