■ Supplied Accessories
Microphone
Microphone hanger
and screw set
Microphone
hanger cable
DC power cable
Flat washers
Spring washers
Bracket bolts
Mounting screws
(M5×12)
Self-tapping screws
(M5×20)
Nuts
Function name
stickers*
Used for labelling the programmable function
keys according to their assinged functions.
*
Mounting bracket

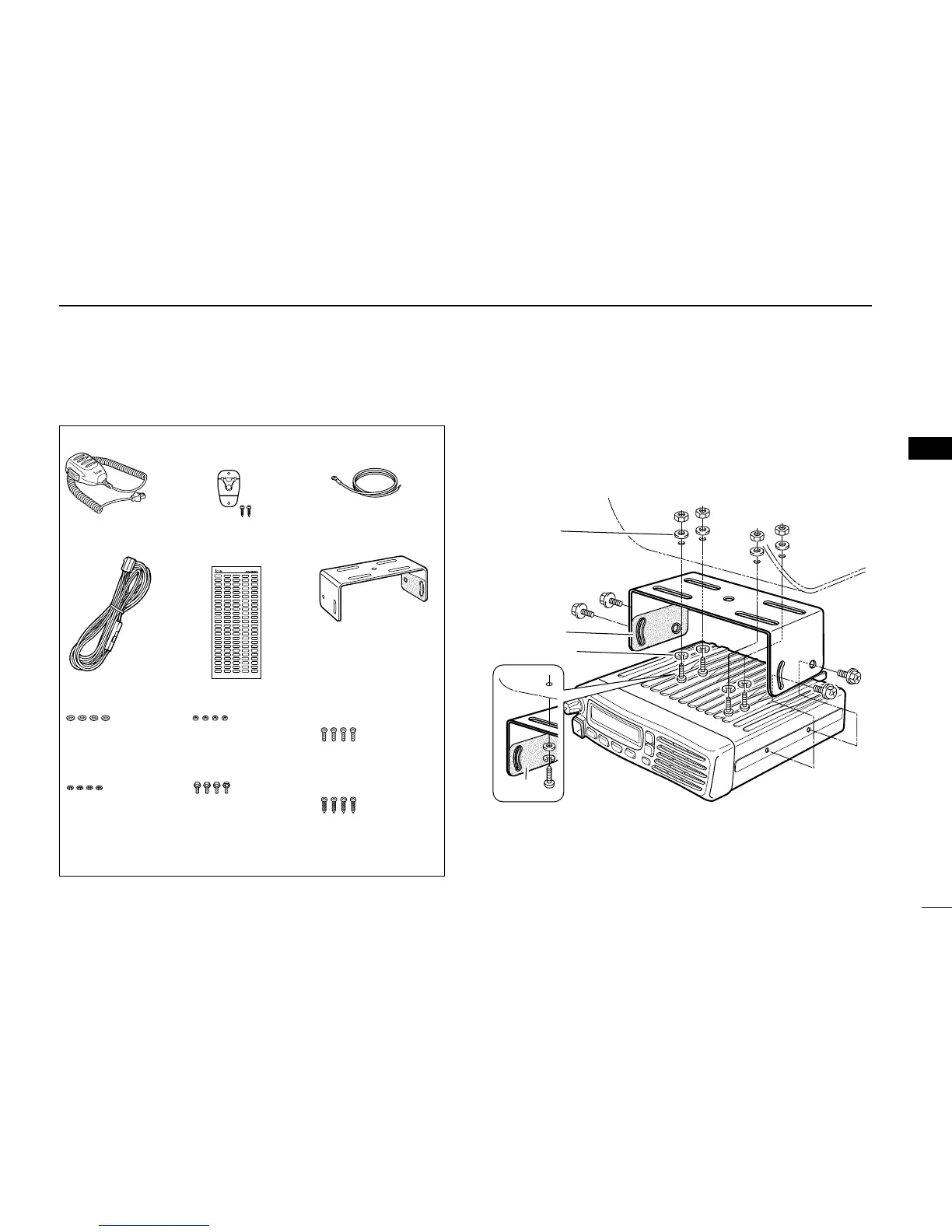

■ Mounting the transceiver
The universal mounting bracket supplied with your trans-
ceiver allows overhead mounting.
•Mountthetransceiversecurelywiththe4suppliedscrews
to a thick surface which can support more than 1.5 kg.
Flat washer
Felt*
Spring washer
When using
self-tapping screws
Felt*
*Felts reduce the vibration effects.
