q w
t
SpeakerFunction display (p. 2)
r
e

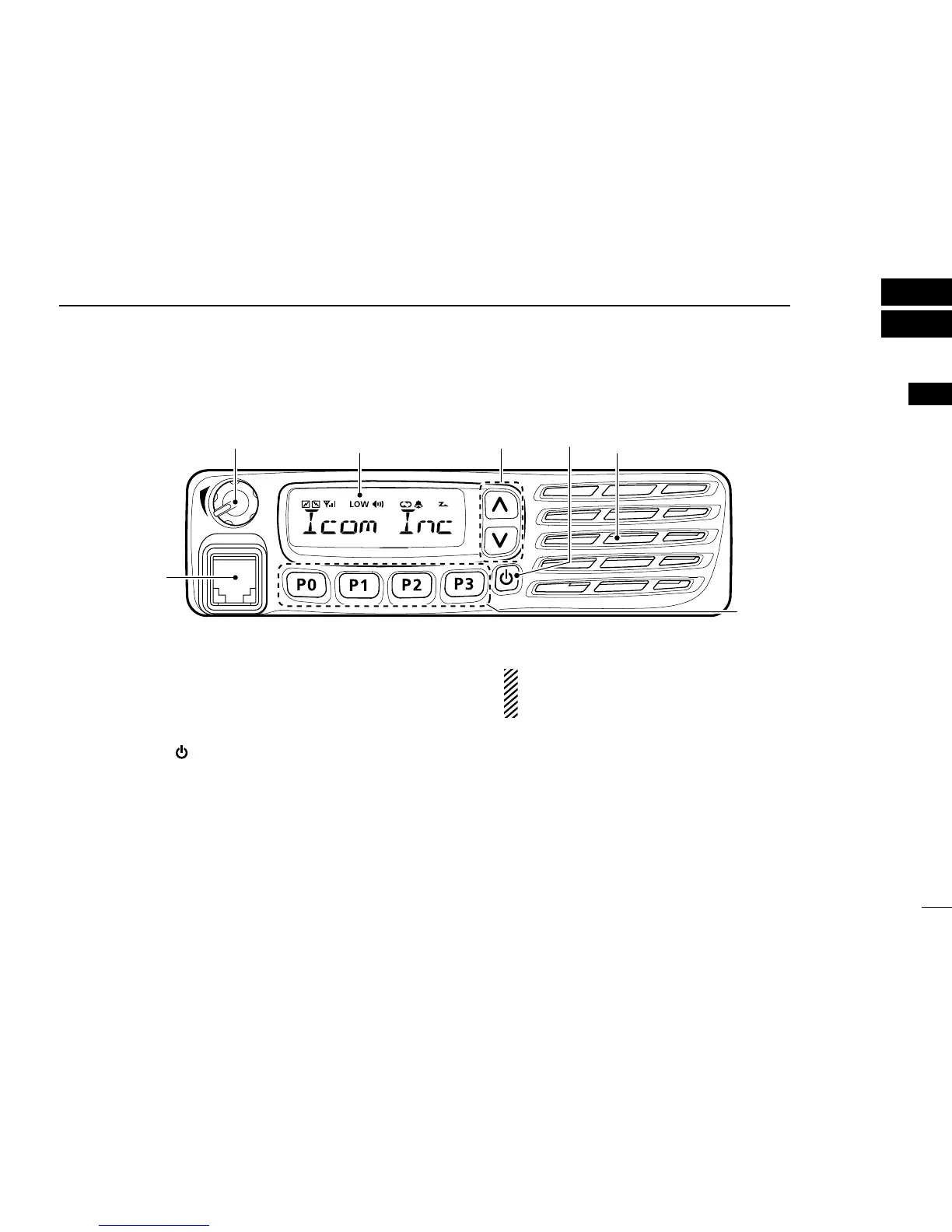

■ Front panel
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the desired audio output level.
 •Minimumaudiolevelispre-set.(p.11)
w UP/DOWN KEYS [CH Up]/[CH Down]
Push to select an operating channel, etc.
* The desired function can be assigned by your dealer. (p. 3)
e POWER KEY [ ]
 Push to turn the power ON and OFF.
 •ThefollowingfunctionsareavailableatpowerONasoptions:
- Automatic scan start
- Password prompt
- Set mode
r DEALER-PROGRAMMABLE KEYS
Desired functions can be programmed independently by
your dealer. (p. 3)
t MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D MICROPHONE
The supplied or optional microphone has a PTT switch and a
hanger hook.
•Thefollowingfunctionsareavailablewhenthemicrophoneisonor
offhook(dependingonthesetting):
- Automatic scan starts when it is on hook.
- Scan is cancelled when it is off hook.
- Scan is paused when it is off hook.
- Automatic priority channel selection is available when it is off hook.
- Sets to ‘Inaudible’ condition (mute condition) when it is on hook.
- Sets to ‘Audible’ condition (unmute condition) when it is off hook.
1
PANEL DESCRIPTION
