2 - 1

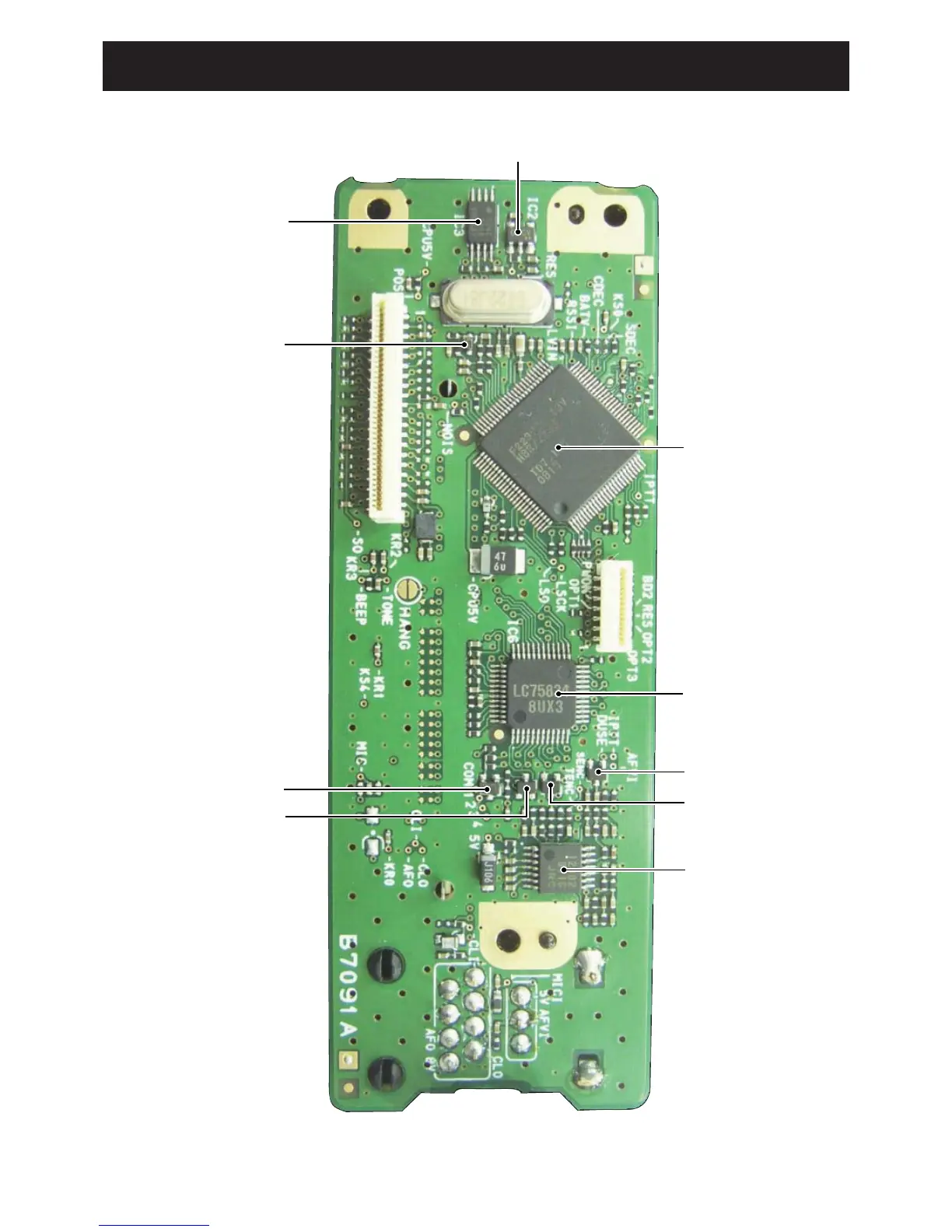

SECTION 2
.
INSIDE VIEWS
• FRONT UNIT
(TOP VIEW)
CPU
(IC1)
LCD DRIVER
(IC6)
TONE LPF
(IC5)
TONE FILTER SWITCH
(Q3)
EEPROM
(IC3)
CLOCK FREQUENCY
SHIFT DIODE
(D6)
BACKLIGHT CONTROLLER
(Q5)
DIMMER CONTROLLER
(Q2)
BACKLIGHT DRIVER
(Q1)
RESET IC
(IC2)
