Icom IC-F7000 Service Manual

3 - 2
‘‘

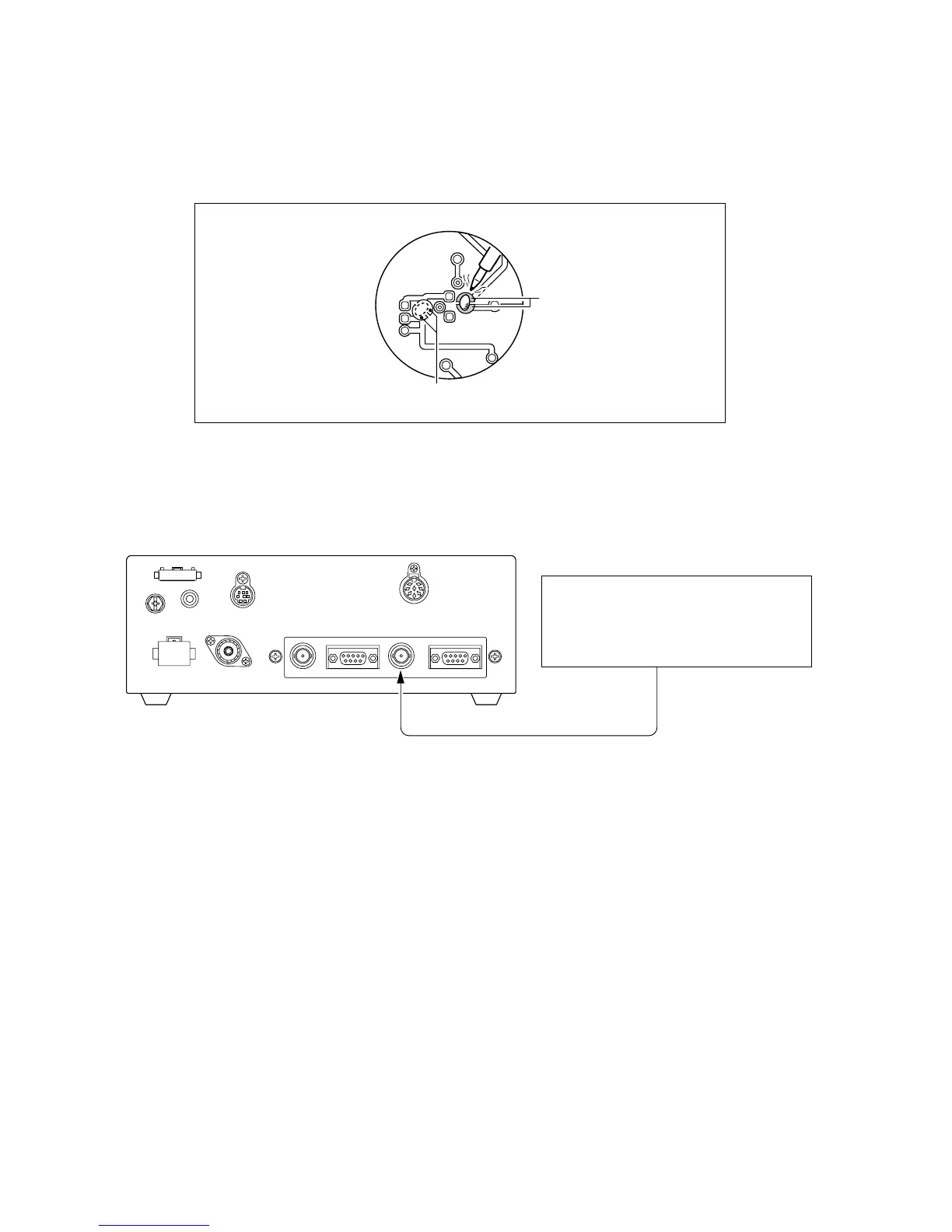

IN CASE OF USING INTERNAL REFERENCE SIGNAL
NEED TO MODIFY
the PLL unit (bottom side) as below. Otherwise the transceiver does not work properly.
q Unsolder connect points (CP5041) on the PLL unit.
w Solder R5251 to the original position, or solder disconnect points (CP5251) on the PLL unit.
‘‘
CONNECTION
Connect the external reference oscillator to the IC-F7000 as below.
q
w
CP5251
CP5041
External reference
IC-F7000 front panel
[REF IN]
Frequency : 32 MHz
Level : 2.0–8.0 Vp-p at 15 kΩ
impedance
