5 - 3

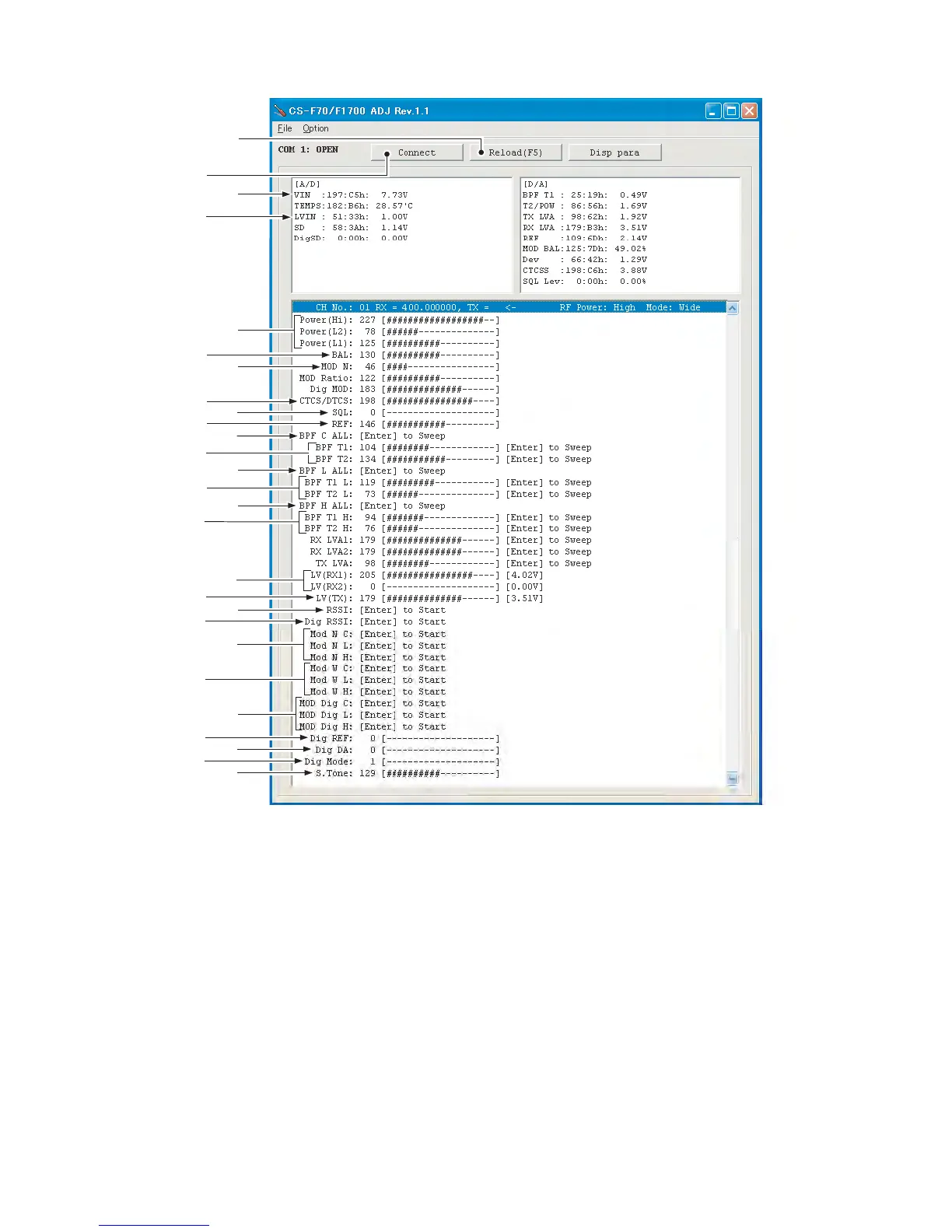

• PC SCREEN EXAMPLE
r
t
y
e
u
q
w
i
!0
!2
@5
@6
@7
!5
!6
!7
o
!8
!9
@1
@0
@2
@3
@4
!1
!3
!4
q: Reload adjustment data
w: Transceiver's connection state
e: Connected DC voltage measurement
r: PLL lock voltage measurement
t: RF output power
y: FM modulation balance
u: FM modulation preset
i: CTCSS/DTCS deviation
o: Squelch level
!0: Reference frequency
!1: Receive sensitivity for center (automatic)
!2: Receive sensitivity for center (manual)
!3: Receive sensitivity for low edge (automatic)
!4: Receive sensitivity for low edge (manual)
!5: Receive sensitivity for high edge (automatic)
!6: Receive sensitivity for high edge (manual)
!7: PLL lock voltage preset for RX (automatic)
!8: PLL lock voltage preset for TX (automatic)
!9: S-meter (FM)
@0: S-meter (digital)
@1: Deviation (narrow)
@2: Deviation (wide)
@3: Deviation (digital)
@4: DSP reference frequency
@5: Base band center voltage
@6: Digital mode
@7: 2/5 TONE, DTMF deviation
NOTE: The above values for settings are example only.
Each transceiver has its own specific values for each setting.
