Icom IC-F8101 Service Manual

5-6
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
RF GAIN 1 • Channel: 4
• Mode: USB
• PRE AMP: OFF
• Receiving
• Test equipment
Frequency: 12.9 MHz
Level
†
: 60 dBµ (–47 dBm)
Set the Test equipment’s output level
so that the 1 kHz tone audio is heard.
Test equipment’s setting
Set this AF
output level to
"0 dB," as the
reference.
2 • Test equipment
Level
†
: OFF Simple 29/30
(Factory Menu)
"RX Total
Gain"
Set the audio
output level to
–26 dB below
the reference.
S-METER 1 • Channel: 5
• Mode: VFO
• Test equipment
Frequency: 12.9 MHz
Level
†
: 84 dBµ (–23 dBm) – –
Note the RSSI
value on the
right bottom
of the LCD as
the reference.
2 • Channel: 5
• Mode: USB
Simple 30/30
(Factory Menu)
"S-METER
FULL Set"
Noted value.
†
; The output level of the standard signal generator (SSG) is indicated as the SSG’s terminated circuit (emf).
5-2 RECIEVE ADJUSTMENTS (Continued)

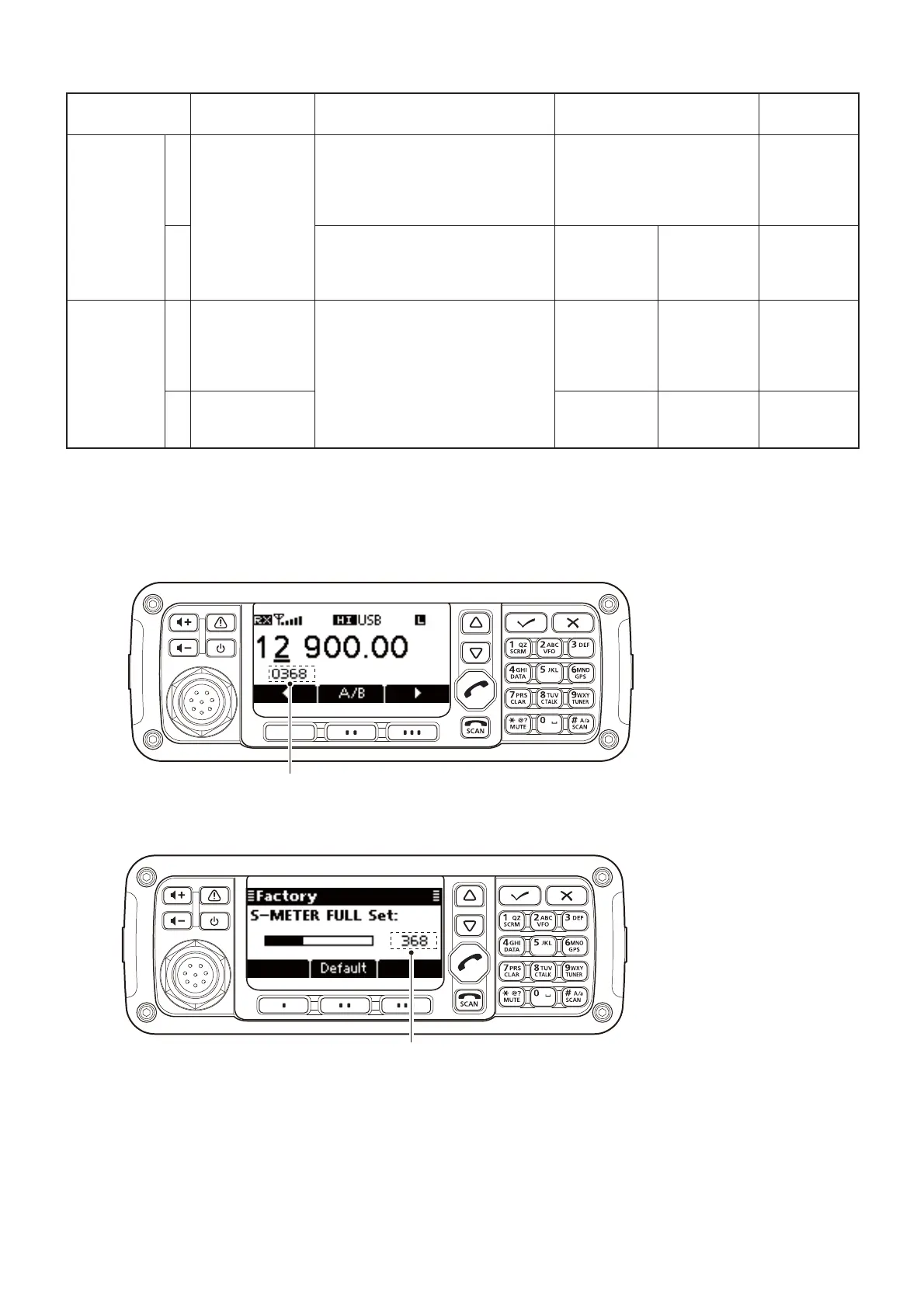

• S-METER ADJUSTMENT
Noted value.
The RSSI value is displayed here.
<STEP1>
<STEP2>
