7 - 1
J2 6510004880 Antenna connector MR-DS-E 01 1
W1 8900009720 Cable OPC-943 1
EP1 6950000420 Cover LTD-4/8-IC 1
MP1 8210017191 2345 front panel-1 assembly [BLACK] 1
8210017172 2345 front panel (A)-1 assembly [WHITE] 1
MP2 8210017150 2345 rear panel assembly [BLACK] 1
8210017160 2345 rear panel (A) assembly [WHITE] 1
MP3 8410002400 2345 A-heatsink 1
MP5 8930052060 2345 F-packing 1
MP6 8930052050 2345 R-packing 1
MP7 8610010851 Knob N279-1 [BLACK] 2
8610010891 Knob N279 (A)-1 [WHITE] 2
MP8 8610010861 Knob N280-1 [BLACK] 1
8610010901 Knob N280 (A)-1 [WHITE] 1
MP9 8930051970 2345 A-bush plate 1
MP12 8510013460 2345 module cover assembly 1
MP18 8110007180 2345 shield cover 1
MP21 8930052280 O-ring (AC) 3
MP22 8930052290 O-ring (AD) 6
MP27 8930034300 1542 ANT seal 1
MP29 8930049320 2288 VENT. sheet 1
MP30 8810008660 Screw PH BT M3 × 8 NI-ZU 1
MP31 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP33 8810008660 Screw PH BT M3 × 8 NI-ZU 2
MP34 8810008660 Screw PH BT M3 × 8 NI-ZU 5
MP35 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP36 8810008660 Screw PH BT M3 × 8 NI-ZU 5
MP37 8810004540 Screw M3 × 8 SUS 2
MP38 8810004540 Screw M3 × 8 SUS 6
MP40 8850000690 Flat washer M3 (3×7×0.5) SUS 6
MP41 8810006050 Icom screw E 7 6
MP43 8930052430 2345 A-IC clip 1
MP44 8930052440 2345 B-IC clip 1
MP45 8930053030 2345 earth plate 1
MP46 8930053030 2345 earth plate 1
MP47 8010004340 Edging rubber FX452 1
REF. NO.

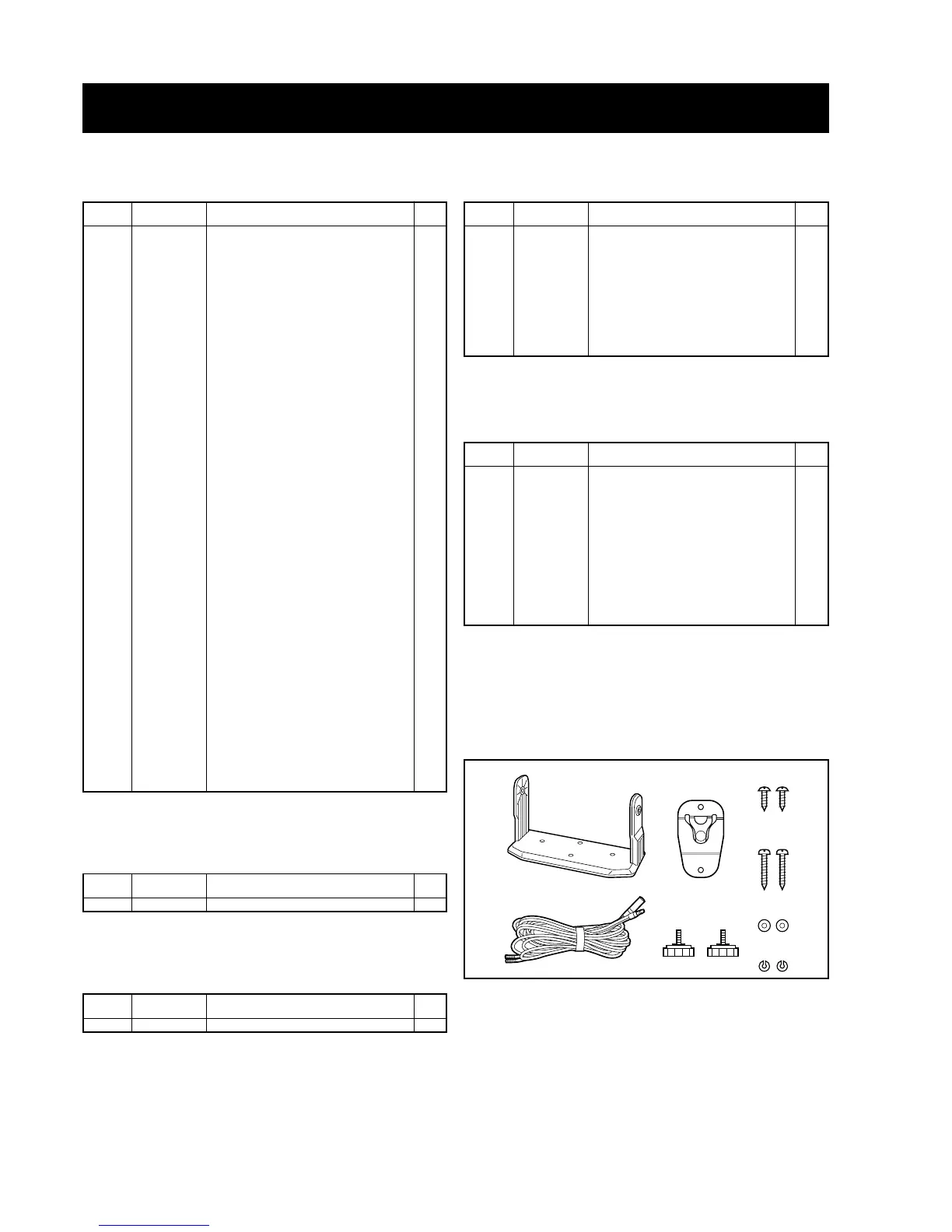

SECTION 7 MECHANICAL PARTS
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY.
S1 2230000250 Switch SPPH22014A 1
DS1 5030001880 LCD TSD0393-UFFDCW 1
EP1 8930052590 LCD contact SRCN-2345-SP-N-W 2
MP1 8210016830 2345 reflector 1
MP2 8930052000 2345 LCD holder 1
MP3 8930052630 2345 LCD filter 1
[LOGIC UNIT]
REF. NO. ORDER NO. DESCRIPTION QTY.
REF. NO.
J1 6510022440 Connector LTW-8MP-C 1
[CTRL UNIT]
ORDER NO. DESCRIPTION QTY.
REF. NO.
MP1 8510013150 2345 VCO case 1
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY.
W1 8900009751 Cable OPC-946A 1
MP1 8010018151 2345 mobile bracket-1 [BLACK] 1
8010018241 2345 mobile bracket (A)-1 [WHITE] 1
MP2 8610010560 2040 knob bolt [BLACK] 2
8610010590 2040 knob bolt (A) [WHITE] 2
MP4 8810001490 Screw PH A M5 × 20 SUS 2
MP5 8850000180 Flat washer M5 SUS 2
MP6 8850000500 Spring washer M5 SUS 2
MP8 8950005110 2289 MIC hanger 1
MP9 8810004700 Screw PH A M3 × 16 SUS 2
[UNPACKING]
REF. NO. ORDER NO. DESCRIPTION QTY.
7-1 IC-M502
Screw abbreviations BT: Self-tapping PH: Pan head
NI: Nickel SUS: Stainless
NI-ZU: Nickel-zinc ZK: Black
