Icom IC-M502 - Page 28

7 - 3

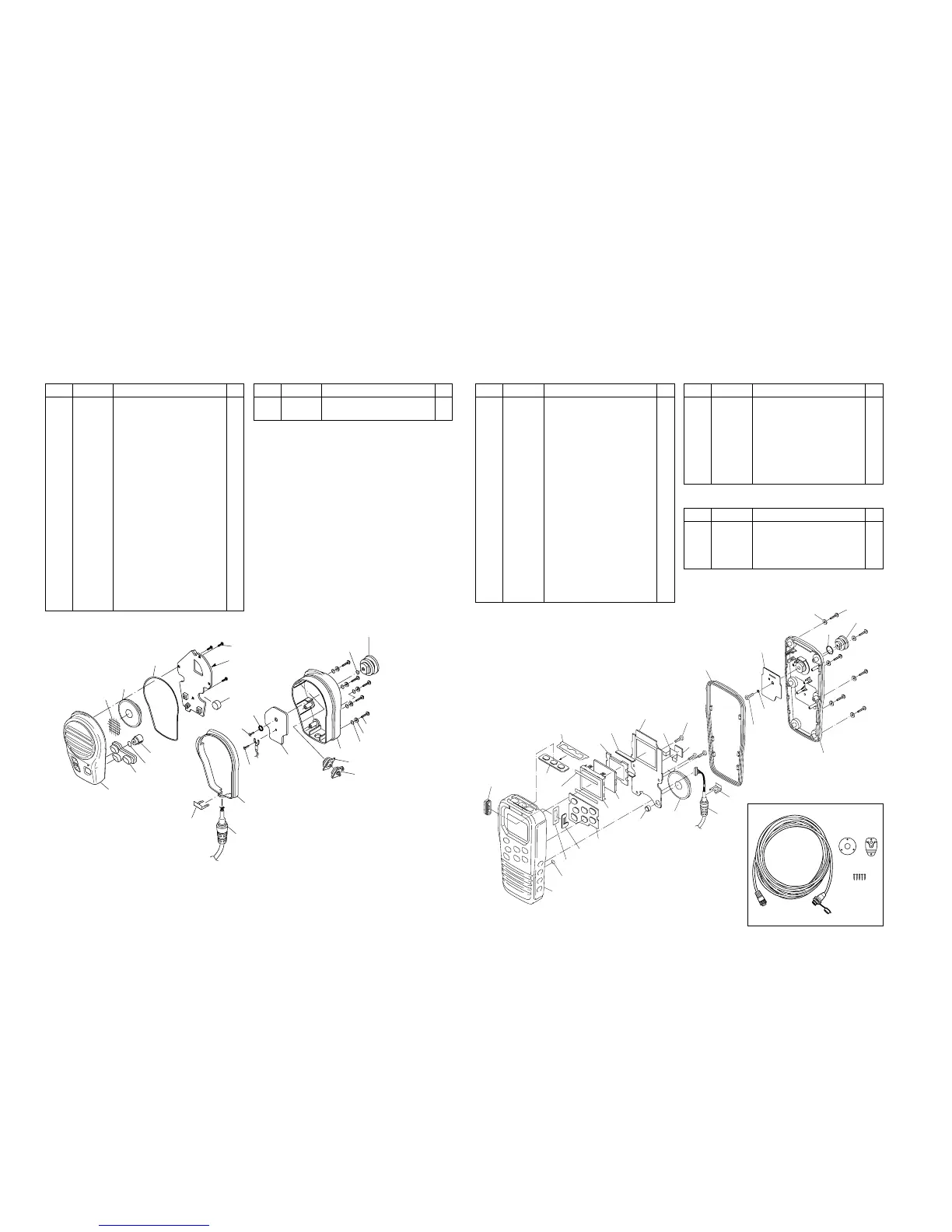

7-2 HM-126
W1 8900009770 Cable OPC-948 [BLACK] 1
8900009780 Cable OPC-949 [WHITE] 1
MP1 8210016861 2352 front panel-1 [BLACK] 1
8210016961 2352 front panel (A)-1 [WHITE] 1
MP2 8210016850 2352 rear panel [BLACK] 1
8210017110 2352 rear panel (A) [WHITE] 1
MP3 8930052160 2352 key 1
MP4 8930052150 2352 PTT rubber 1
MP5 8930052140 2352 PTT holder 1
MP6 8930052690 2352 MIC rubber 1
MP7 8930052120 2352 rubber 1
MP8 8930052110 2352 main seal 1
MP9 8610010870 2352 hanger knob 1
MP10 8310048760 2352 R-plate 1
MP11 8310048780 2352 MIC plate 1
MP12 8820001150 2352 screw 5
MP13 8850001850 ICOM washer (Y) 5
MP14 8930052340 O-ring (AE) 5
MP15 8930052350 O-ring (AF) 1
MP16 8930053870 2352 sheet (A) 1
MP17 8930053040 2352 SP net 1
MP18 8850001610 Spring washer M4 SUS 1
MP19 8810009260 Screw PH BT 2 × 6 NI 3
MP20 8810008900 Screw PH M3 × 6 NI 1
MP21 8810009240 Screw M4 × 10 ZK 1
MP23 8930053850 2352 SP rubber 1
REF. NO.
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY. REF. NO.
MC1 7700002120 Microphone KUC2123-030245 1
SP1 2510001070 Speaker S36G04K-4 1
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY.
Screw abbreviations BT: Self-Tapping PH: Pan head
NI: Nickel SUS: Stainless
NI-ZU: Nickel-zinc ZK: Black
MP16 (CH)
MP6 (CH)
MP3 (CH)
MP7 (CH)
MP10 (CH)
MP20 (CH)
W1 (CH)
MP19 (CH)
MP11 (CH)
MC1 (M)
MP4 (CH)
MP12 (CH)
MP13 (CH)
MP14 (CH)
MP2 (CH)
MP5 (CH)
MP8 (CH)
MP15 (CH)
MP9 (CH)
MP21 (CH)
MP18 (CH)
MAIN UNIT
HM-126
Unit abbreviations (CH): CHASSIS PARTS
(M): MAIN UNIT
MP1 (CH)
SP1 (M)
MP23 (CH)
7-3 HM-127 (OPTIONAL UNIT)
W3 8900010220 Cable OPC-997 [BLACK] 1
8900010230 Cable OPC-998 [WHITE] 1
SP1 2510001090 Speaker 036D0801 1
MP1 8210017360 2417 front panel assembly [BLACK] 1
8210017390 2417 front panel (A) assembly [WHITE] 1
MP3 8930053510 2417 key board 1
MP4 8930053540 2417 PTT rubber 1
MP5 8930053990 2417 PTT sheet 1
MP6 8930053550 2417 PTT holder 1
MP7 8930053520 2417 top key 1
MP8 8930053760 2417 key plate 1
MP10 8930039000 1757 sheet 1
MP11 8810009180 Screw FT BT M2 × 5 NI-ZU 3
MP12 8930053750 2417 plate 1
MP13 8210017250 2417 rear panel [BLACK] 1
8210017300 2417 rear panel (A) [WHITE] 1
MP14 8310049970 2417 R-plate 1
MP15 8610010980 2417 hanger knob 1
MP16 8930053740 O-ring (AJ) 1
MP17 8810008450 Screw M4 × 8 ZK 1
MP18 8850000490 Spring washer M4 SUS 1
MP19 8930053530 2417 rubber 1
MP20 8820001180 2417 screw 2.6 × 16 6
MP21 8930053730 O-ring (AI) 6
REF. NO.
[CHASSIS PARTS]
ORDER NO. DESCRIPTION QTY.
DS1 5030001900 LCD A0119 (LCD 36 × 28.5) 1
EP2 8930051120 LCD contact SRCN-2320-SP-N-W 2
MC1 7700002480 Microphone SKB-2746 LPC 1
MP1 8930053780 2417 LCD holder 1
MP2 8210017240 2417 reflector 1
MP3 8310050200 2417 H-plate 1
MP4 8930039610 Thermally sheet (C) 1
MP5 8930054120 Insulate sheet (J) 2
REF. NO.
[MAIN UNIT]
ORDER NO. DESCRIPTION QTY.
W1 8900010280 Cable OPC-1000 1
MP1 8950005110 2289 mic hanger 1
MP2 8810004700 Screw PH M3 × 16 SUS 2
MP3 8310050320 2417 C-plate 1
MP4 8810004700 Screw PH M3 × 16 SUS 3
REF. NO.
[UNPACKING]
ORDER NO. DESCRIPTION QTY.
Screw abbreviations PH: Pan head FT: Flat head
BT: Self-tapping NI-ZU: Nickel-zinc
SUS: Stainless ZK: Black
MP4 (CH)
MP2 (M)
EP2 (M) MP3 (M)
MP4 (M)
MP11 (CH)
MP19 (CH)
MP14 (CH)
MP18 (CH)
MP17 (CH)
MP13 (CH)
MP7 (CH)
MP8 (CH)
MP5 (M)
MP1 (M)
DS1 (M)
MP10 (CH)
MP5 (CH)
MP6 (CH)
MP3 (CH)
MC1 (M)
SP1 (CH)
MP1 (CH)
MAIN UNIT
W3 (CH)
MP12 (CH)
MP16 (CH)
MP21 (CH)
MP15 (CH)
MP20 (CH)
MP3 MP1
MP2,4
W1
HM-127 UNPACKING
