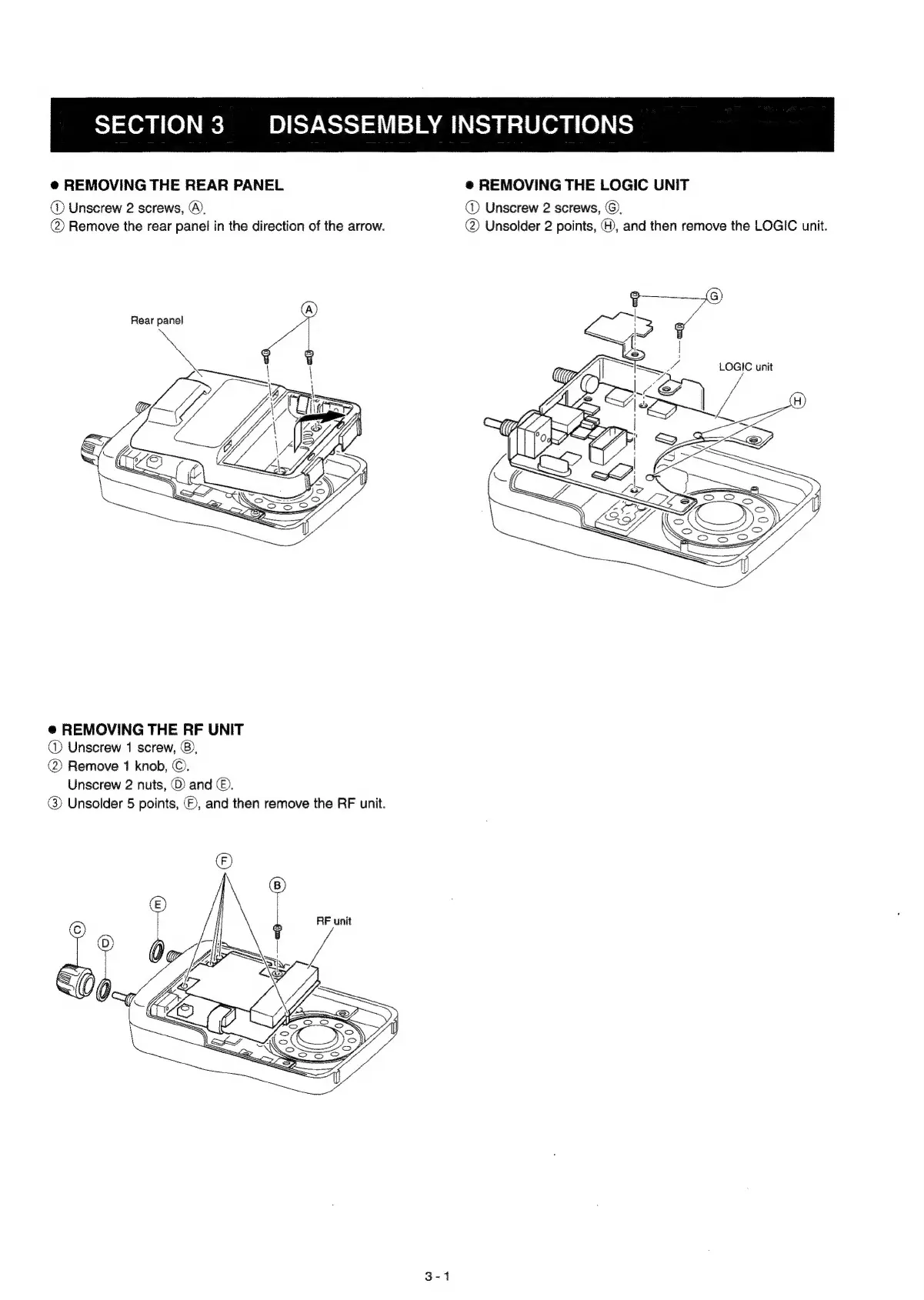

SECTION
3
DISASSEMBLY
INSTRUCTIONS
*
REMOVING
THE
REAR
PANEL
е
REMOVING
THE
LOGIC
UNIT
(D
Unscrew
2
screws,
(А).
(D
Unscrew
2
screws,
(6),
(2
Remove
the
rear
panel
in
the
direction
of
the
arrow.
(2)
Unsolder
2
points,
CI,
and
then
remove
the
LOGIC
unit.
Rear
panel
e
REMOVING
THE
RF
UNIT
(D
Unscrew
1
screw,
(8),
(2
Remove
1
knob,
(O.
Unscrew
2
nuts,
©
апа
©.
(3)
Unsolder
5
points,
©,
and
then
remove
the
RF
unit.
