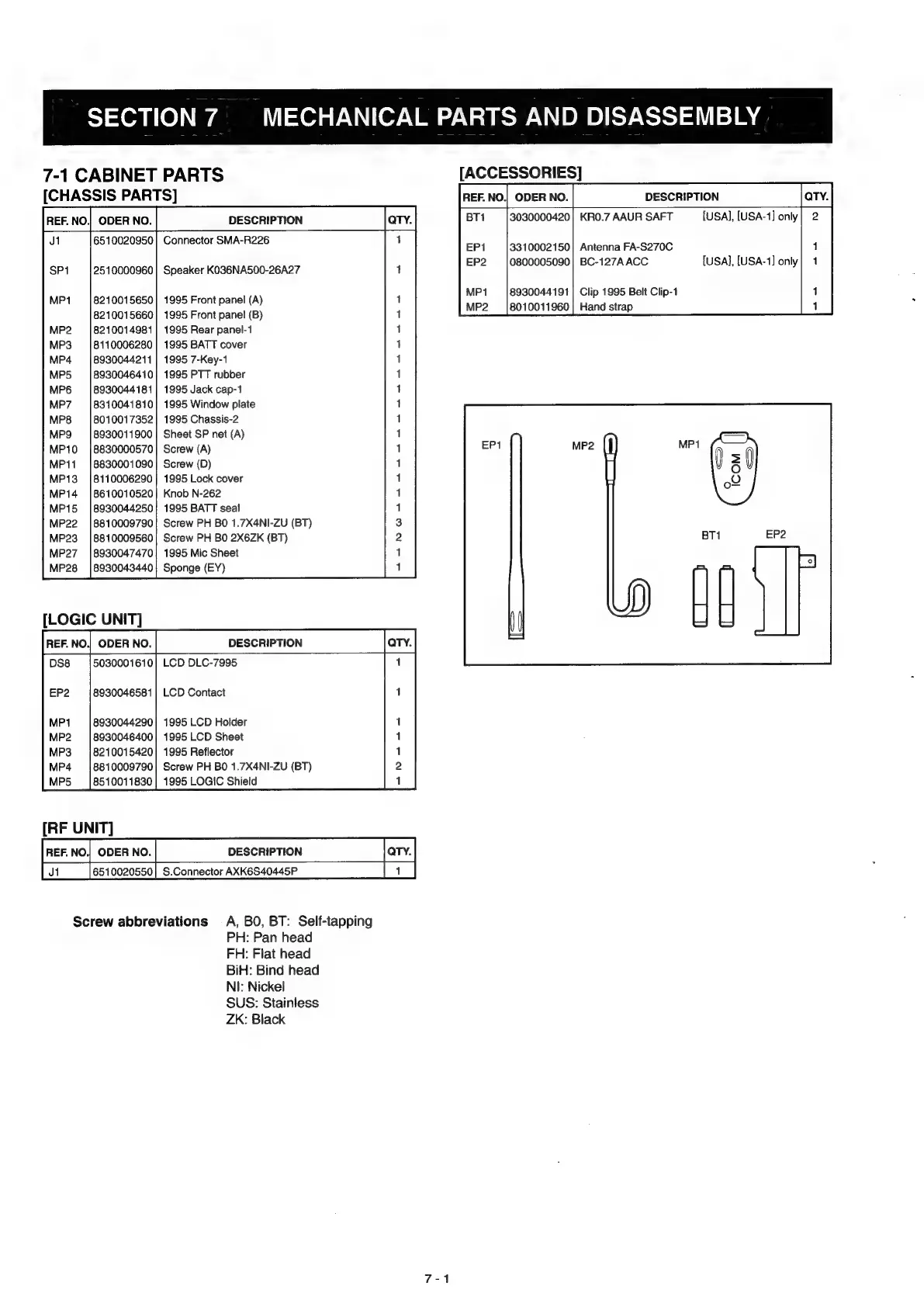

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
7-1 CABINET PARTS
[CHASSIS PARTS]
Eee ODER NO. DESCRIPTION Би
6510020950| Connector SMA-R226
2510000960| Speaker K036NA500-26A27
8210015650| 1995 Front panel (A)
8210015660| 1995 Front panel (B)
8210014981 | 1995 Rear panel-1
8110006280 | 1995 BATT cover
8930044211 | 1995 7-Key-1
8930046410| 1995 PTT rubber
8930044181 | 1995 Jack cap-1
8310041810| 1995 Window plate
8010017352 | 1995 Chassis-2
8930011900 | Sheet SP net (A)
8830000570| Screw (A)
8830001090| Screw (D)
8110006290 | 1995 Lock cover
8610010520 | Knob N-262
8930044250| 1995 BATT seal
8810009790 | Screw PH BO 1.7X4NI-ZU (ВТ)
8810009560| Screw PH BO 2X6ZK (BT)
8930047470 | 1995 Mic Sheet
8930043440! Sponge (EY)
-- N)Q- lll...
[LOGIC UNIT]
FEM ODER NO. DESCRIPTION (оту.
5030001610| LCD DLC-7995
8930046581 | LCD Contact
1995 LCD Holder
1995 LCD Sheet
1995 Reflector
Screw PH BO 1.7X4NI-ZU (BT)
1995 LOGIC Shield
8930044290
8930046400
8210015420
8810009790
8510011830
[RF UNIT]
REF. NO. ODER NO. DESCRIPTION
| J1 [6510020550| S.Connector AXK6S40445P
Screw abbreviations — A, BO, BT: Self-tapping
PH: Pan head
FH: Flat head
BiH: Bind head
NI: Nickel
SUS: Stainless
ZK: Black
[ACCESSORIES]
| ODER NO.
3030000420
3310002150
0800005090
8930044191
8010011960
DESCRIPTION
«860.7 AAUR SAFT
Antenna FA-S270C
BC-127A ACC
Clip 1995 Belt Clip-1
Hand strap
[USA], [USA-1] only| 2
[USA], [USA-1] only
