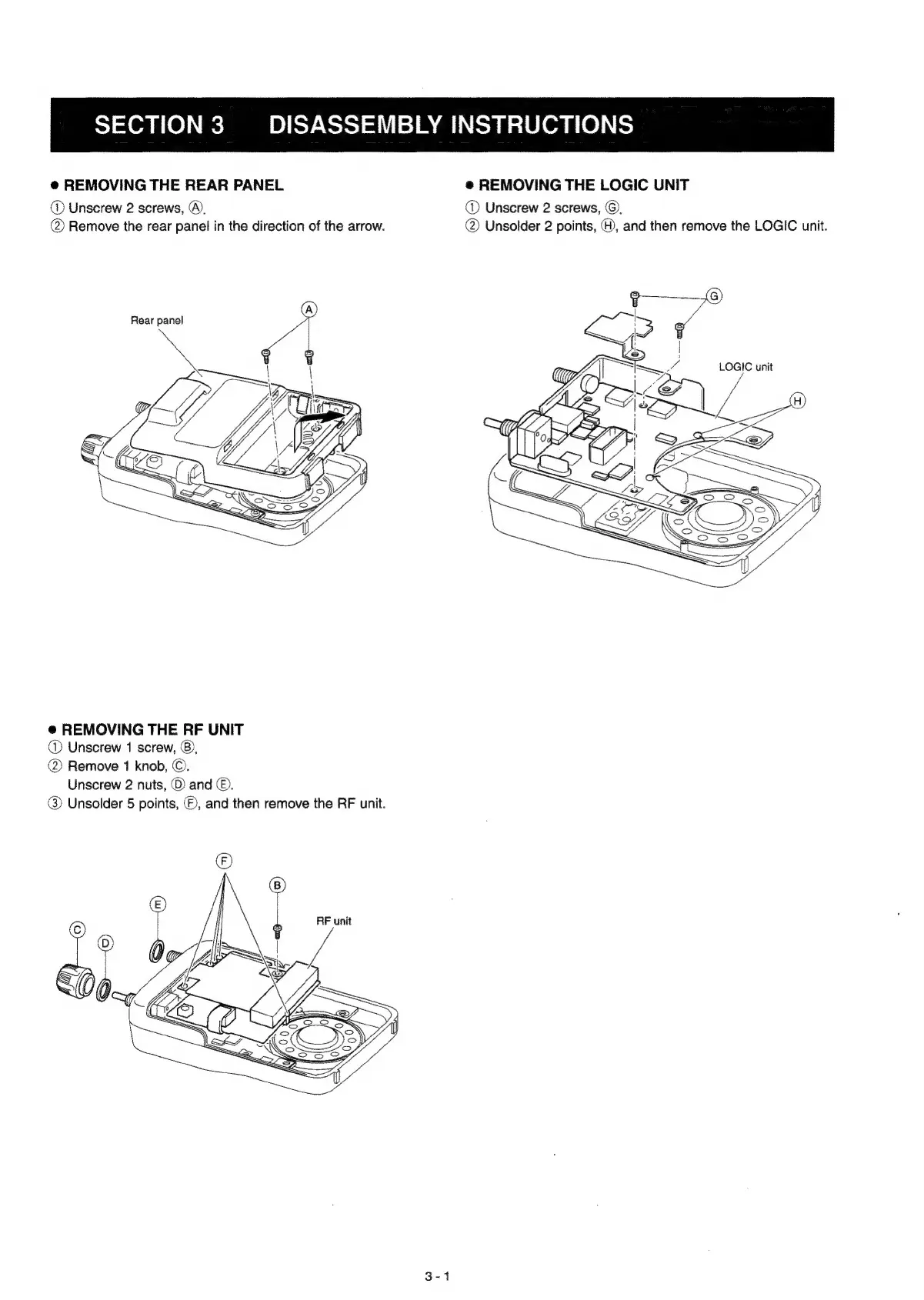

SECTION 3 DISASSEMBLY INSTRUCTIONS
* REMOVING THE REAR PANEL е REMOVING THE LOGIC UNIT
(D Unscrew 2 screws, (А). (D Unscrew 2 screws, (6),
(2 Remove the rear panel in the direction of the arrow. (2) Unsolder 2 points, CI, and then remove the LOGIC unit.
Rear panel
e REMOVING THE RF UNIT
(D Unscrew 1 screw, (8),
(2 Remove 1 knob, (O.
Unscrew 2 nuts, © апа ©.
(3) Unsolder 5 points, ©, and then remove the RF unit.
