PREPARATION
11
22
When removing the belt
clip, lift the tab up 1, and
slide the belt clip in the
direction of the arrow 2.
Slide the belt clip in the direction of
the arrow until the belt clip locks in
place, and makes a ‘click’ sound.
BE CAREFUL! DO NOT break your
ngernail.
D Belt clip
D Battery pack
NOTE: Before detaching or attaching
a battery pack, BE SURE to turn OFF
the transceiver by holding down [
]
for 1 second. Otherwise, a transceiver
malfunction could occur.

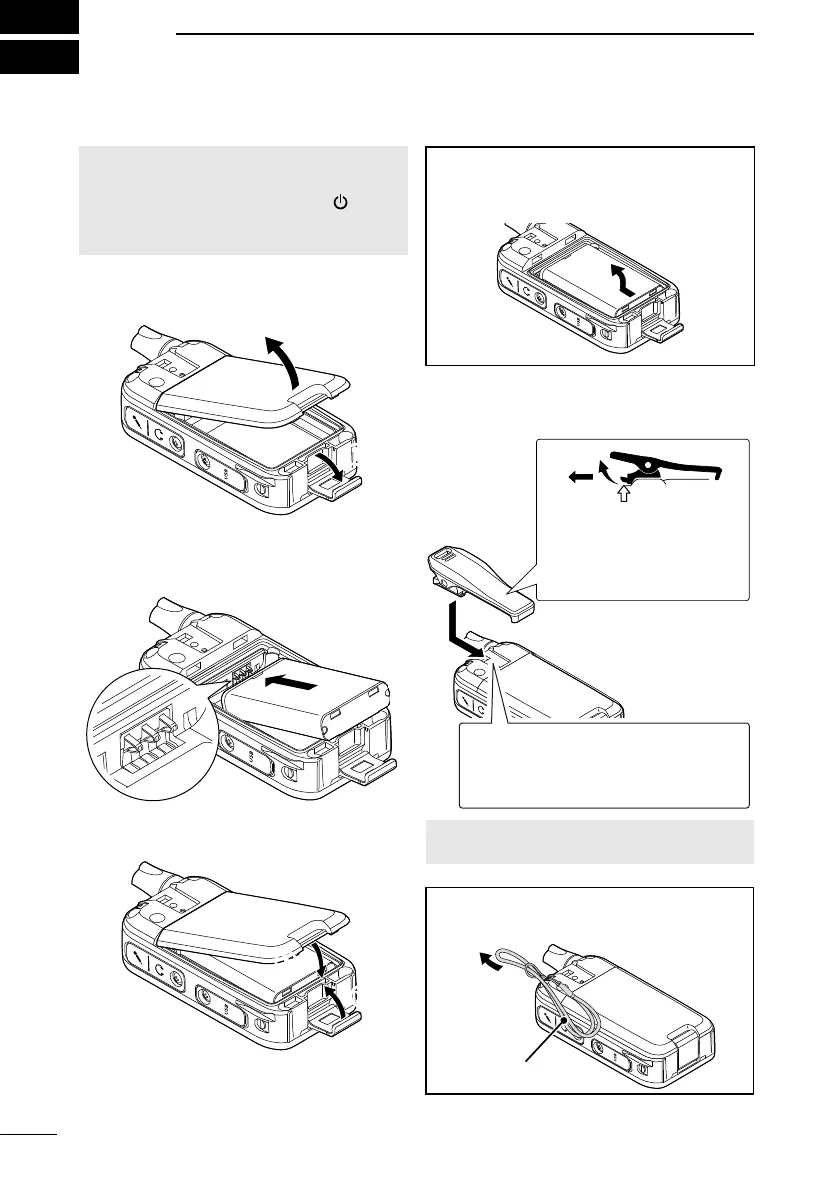

1. Release the rear cover lock clip (1)
and remove the rear cover (2).
2. Install the supplied battery pack so that
the terminals of the battery pack and
the transceiver meet.
3. Replace the rear cover (1) and the
rear cover lock clip (2).
1
2
1
2
TIP: When attaching a hand strap
(User supplied)
Hand strap
TIP: To remove the battery pack, slide the
battery pack and lift it up in the direction
of the arrow.
