Icom IC-W2E - Antenna, Reset, and Audio Setup

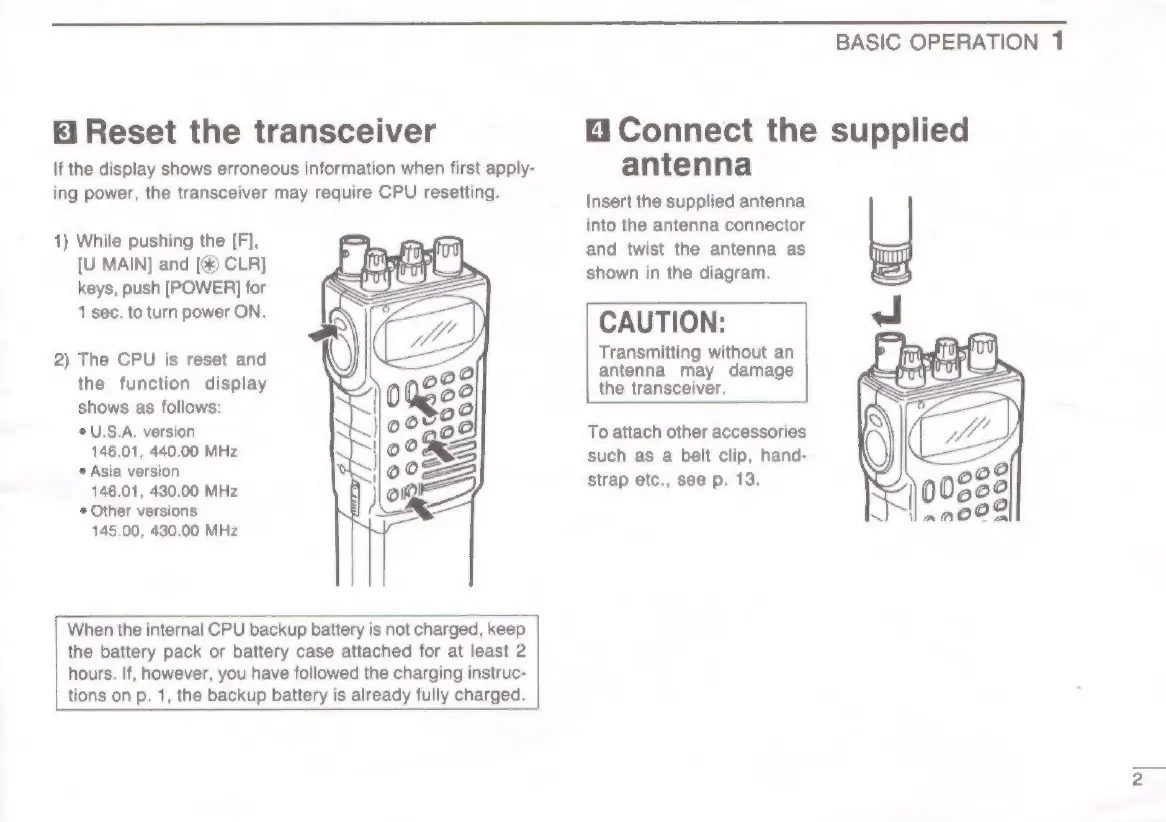

Reset the transceiver
If the display shows erroneous information when first apply-
ing power, the transceiver may require CPU resetting.
1) While pushing the [F],
[U MAIN] and [&) CLR]
keys, push [POWER] for
1 sec. to turn power ON.
2) The CPU is reset and
the function display
shows as follows:
* U.S.A. version
146.01, 440.00 MHz
* Asia version
146.01, 430,00 MHz
* Other versions
145.00, 430.00 MHz
When the internal CPU backup battery is not charged, keep
the battery pack or battery case attached for at least 2
hours. If, however, you have followed the charging instruc-
tions on p. 1, the backup battery is already fully charged.
BASIC OPERATION 1
Connect the supplied
antenna
Insert the supplied antenna
into the antenna connector
and twist the antenna as
shown in the diagram.
CAUTION:
Transmitting without an
antenna may damage
the transceiver.
To attach other accessories
such as a belt clip, hand-
Strap etc., see p. 13.
