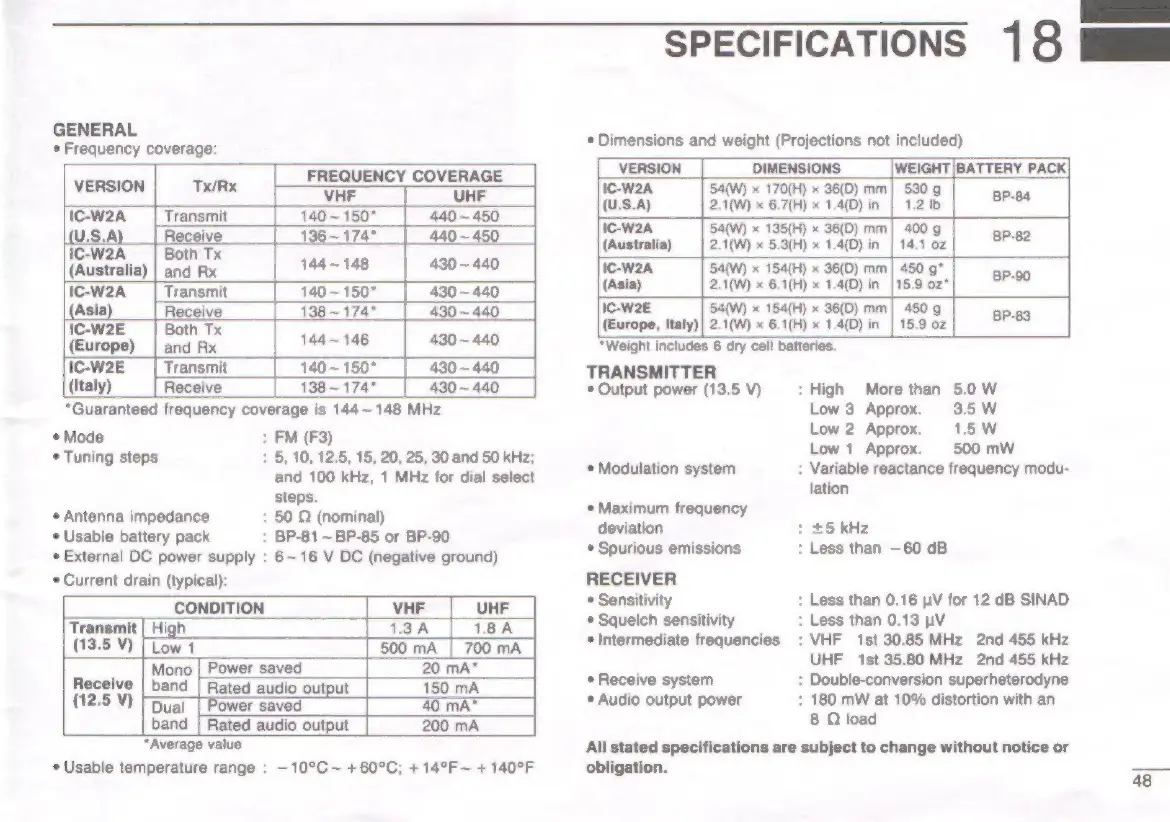

Icom IC-W2E - Technical Specifications

GENERAL
* Frequency coverage:
FREQUENCY COVERAGE
VHF UHF
IC-W2A {40 ~ 180: 440 ~ 450
U.S.A eive 6-174" 440~450
144~148 430~440
pecs Tx
and Rx si
Transmit a
140 ~150° 430~440
Asia) 138 ~174*
IC-w2 Both Tx
490-440
IC-W2E |Transmit_ | 140~150* | 430~440 |
(Italy)
“Guaranteed frequency coverage is 144~148 MHz
* Mode : FM (F3)
* Tuning steps : 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz;
and 100 kHz, 1 MHz for dial select
steps.
* Antenna impedance : 50 Q (nominal)
* Usable battery pack : BP-81~BP-85 or BP-90
* External DC power supply : 6~ 16 V DC (negative ground)
* Current drain (typical):
arent ee ————f WHF | une
Transmit|
High
i
(13.5 V) [Low 4 Haar
Mono | Power saved 20 =f
Receive | band
(12.5 V) Pui
band | Rated audio Outpt a
“Average value
* Usable temperature range : — 10°C ~ +60°C; +14°F~ + 140°F
{pak pie
SPECIFICATIONS 18
* Dimensions and weight (Projections not included)
1C-W2E x TEAR x 360) mm
(Europe, Italy)| 2. sath » 6.1(H) x 1,4(D) in ard 9 om
“Weight includes 6 dry cell batteries.
TRANSMITTER
© Output power (13.5 V)
: High More than 5.0 W
Low 3 Approx. 3.5W
Low 2 Approx. 15 W
Low 1 Approx. 500 mW
* Modulation system : Variable reactance frequency modu-
lation
* Maximum frequency
deviation : +5 kHz
* Spurious emissions : Less than —60 dB
RECEIVER
* Sensitivity : Less than 0.16 LV for 12 dB SINAD
© Squelch sensitivity
* Intermediate frequencies
: Less than 0.13 pV
: VHF 1st 30.85 MHz 2nd 455 kHz
UHF 1st 35.80 MHz 2nd 455 kHz
: Double-conversion superheterodyne
: 180 mW at 10% distortion with an
8 Q load
All stated specifications are subject to change without notice or
obligation.
* Receive system
* Audio output power
