mu > = PANEL ~ DESCRIPTION
a |

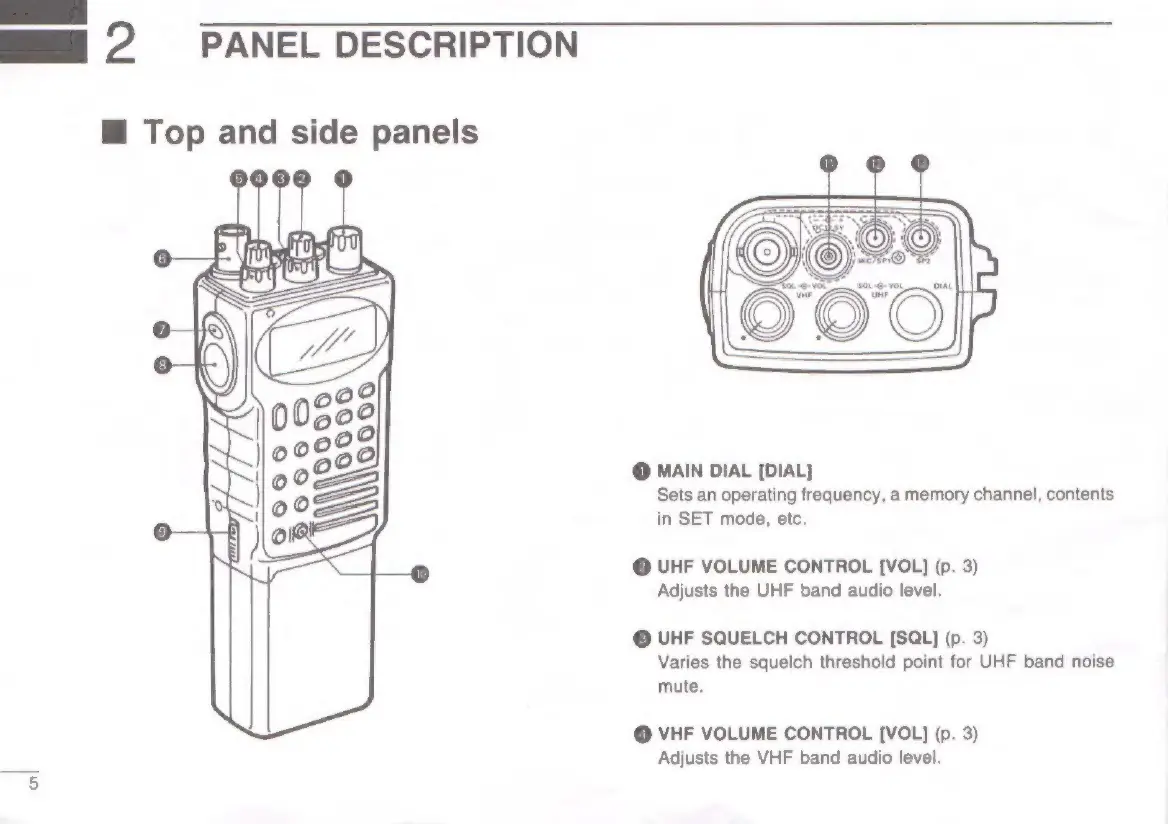

@ Top and side panels
90 O€
@ MAIN DIAL [DIAL}
Sets an operating frequency, a memory channel, contents
in SET mode, etc.
@ UHF VOLUME CONTROL [VOL] (p. 3)
Adjusts the UHF band audio level.
© UHF SQUELCH CONTROL [SQL] (p. 3)
Varies the squelch threshold point for UHF band noise
mute.
@ VHF VOLUME CONTROL [VOL] (p. 3)
Adjusts the VHF band audio level.
