ICON Pixels Series - Rear Panel Overview

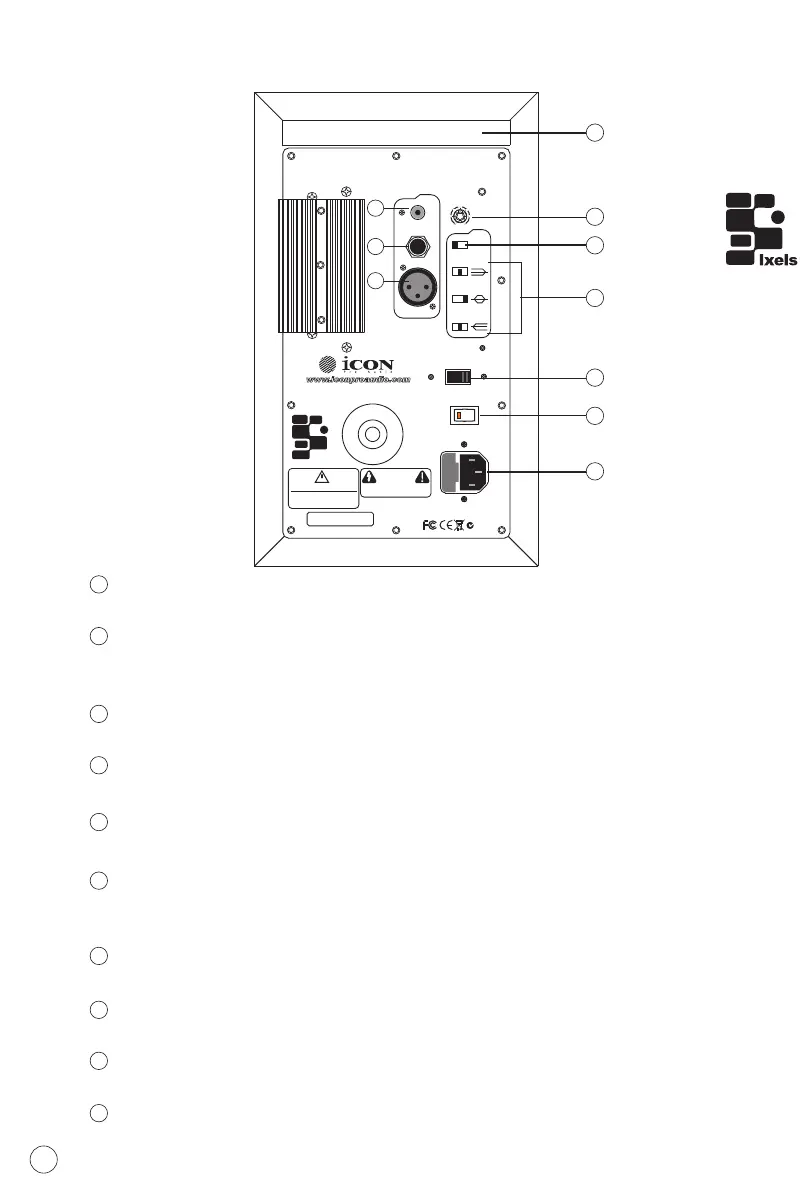

Rear Panel Layout
Hi-Pass filter control
3-position switch used to adjust the Hi-Pass filter from Flat, 60Hz & 80Hz
1
2
3
4
7
8
Hi, Mid and Low range contour control
3-position switch used to adjust the Hi, Midrange and Low response
providing customized voicing from hi-fi to agreesive midrange.
Volume
Controls the amount of output level
XLR balanced input
Balanced, line level input is connected here via standard XLR cable.
Voltage Selector
110V / 220V input voltage selector
Power Switch
Turns the unit on/off.
5
1/4" TRS balanced input
Balanced TRS (Tip, Ring, Sleeve) 1/4" plug used to connect balanced
or unbalanced line level signals.
9
AC inlet
Connect the supplied IEC power cable here.
6
RCA unbalanced input
Used to connect signals from unbalanced, -10dBV devices.
Tuned port
Quiet port design offering linear extended low frequency response.
10
Input
Balanced
Risk of electrical shock
Do not open
Risque de shock electrique
Ne pas ouvrir
CAUTION
CAUTION: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT REMOVE BOTTOM COVER.
NON SERVICABLE PARTS INSIDE.
DO NOT EXPOSE THIS EQUIPEMNT TO RAIN OR MOISTURE.
REFER SERVICING TO QUALIFIER PERSONNEL
S/N
Flat
HOT
Rear panel may become too hot to touch. Leave
enough space for proper ventilation.
Warning
This equipment is capable of delivering sound
pressure levels considerably higher than 90dB,
which may cause permanent damage.
Hi-Pass
Balanced
Unbalanced
EQ
60
Hz
80
Hz
-2
HF
0 +2
2
PX-T5A
Pixels Series 5.5" Active Studio Monitor System
Min Max
Volume
N16549
MADE IN PRC
Ixels
ACTIVE STUDIO MONITOR
~115V T2AL 60Hz
~230V T1AL 50Hz
AC in
Voltage
Selector
220V
-2
LF
0 +2
-2
MF
0 +2
Power
ONOFF
5
6
7
1
3
8
9
10
4
2
