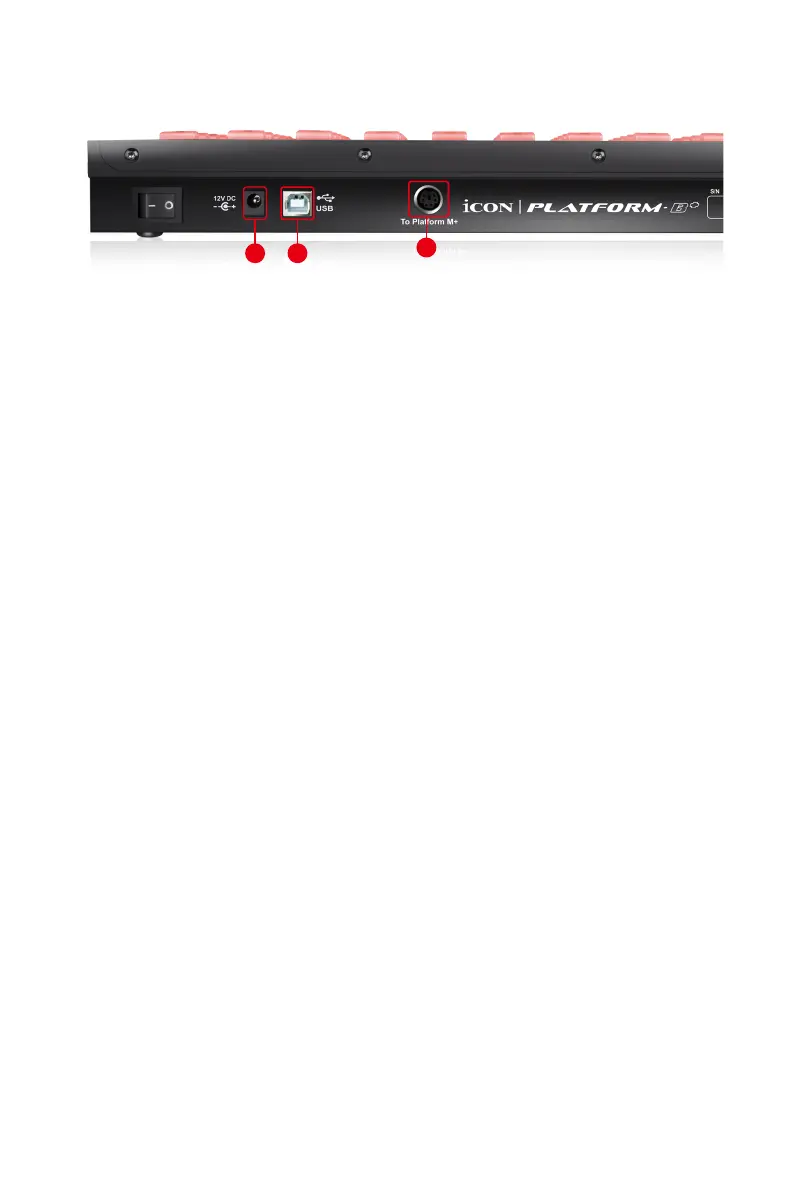

Rear Panel Layout
1. USB port
Connect your Platform B+ to your Mac/PC via this USB port if you are using it as
a standalone device, otherwise you do not have to connect it.
2. Extension ports
Connect your Platform B+ to Platform M+ with the provided cable.
3. 12V/0.35A power adaptor
Connect the provided power adaptor here.
(Note: Platform B+ is not able to work without the provided power adaptor
connected. The USB bus power is not able to provide sufcient power supply for
Platform B+.)
3 1
2
