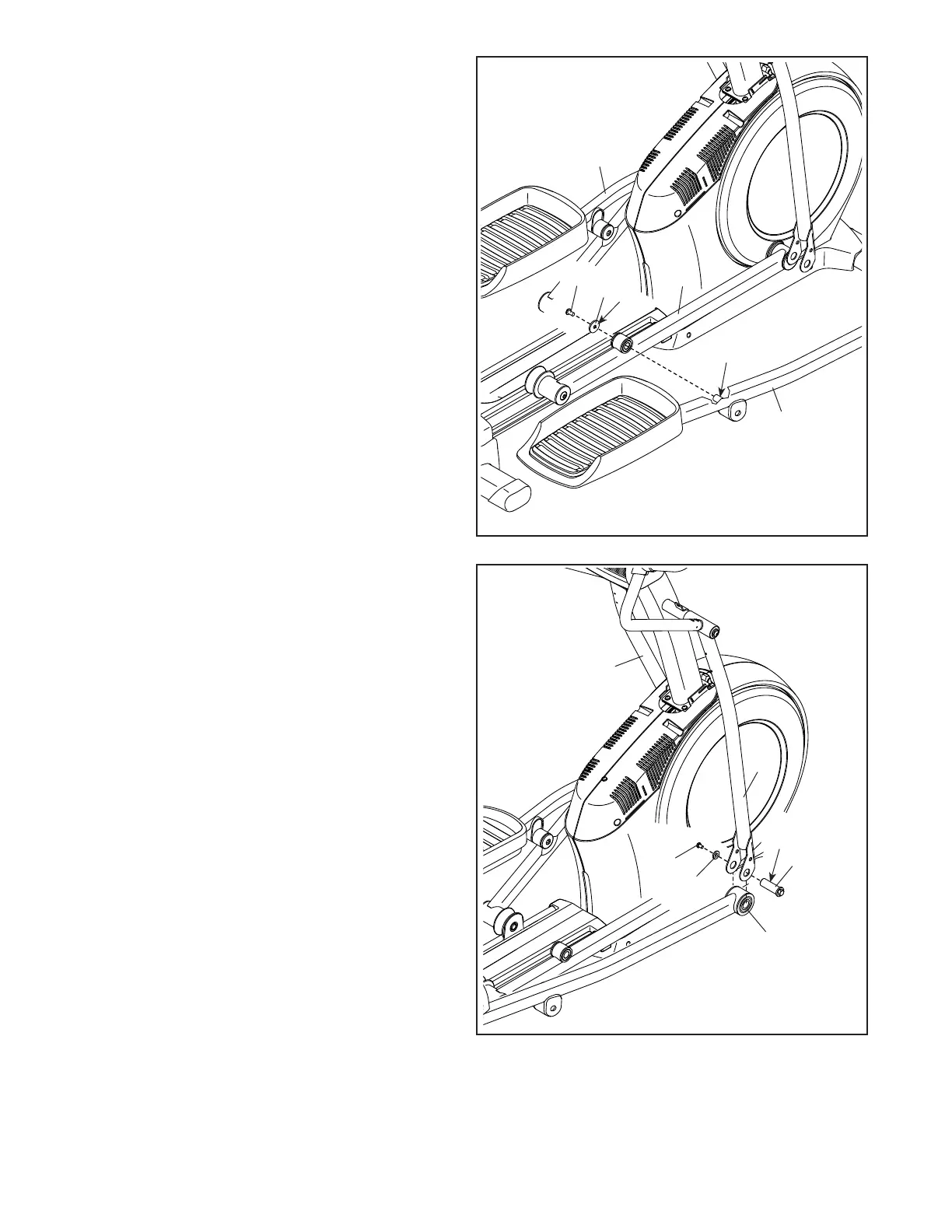

11. Orient the Right Pedal Arm (58) as shown, and
apply grease to the axle.
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 20mm Screw (126)
and a Retainer (55); make sure that the flat
side (D) of the Retainer is facing the Right
Roller Arm.
Repeat this step for the Left Pedal Arm (44).
12. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Next, slide an M8 Washer (97) onto an M8 x
13mm Screw (82), and tighten the Screw a few
turns into the Pedal Arm Axle (64). Then, tighten
the Screw and the Axle at the same time.
Repeat this step on the other side of the
elliptical.
55
D
126
To Next Page
