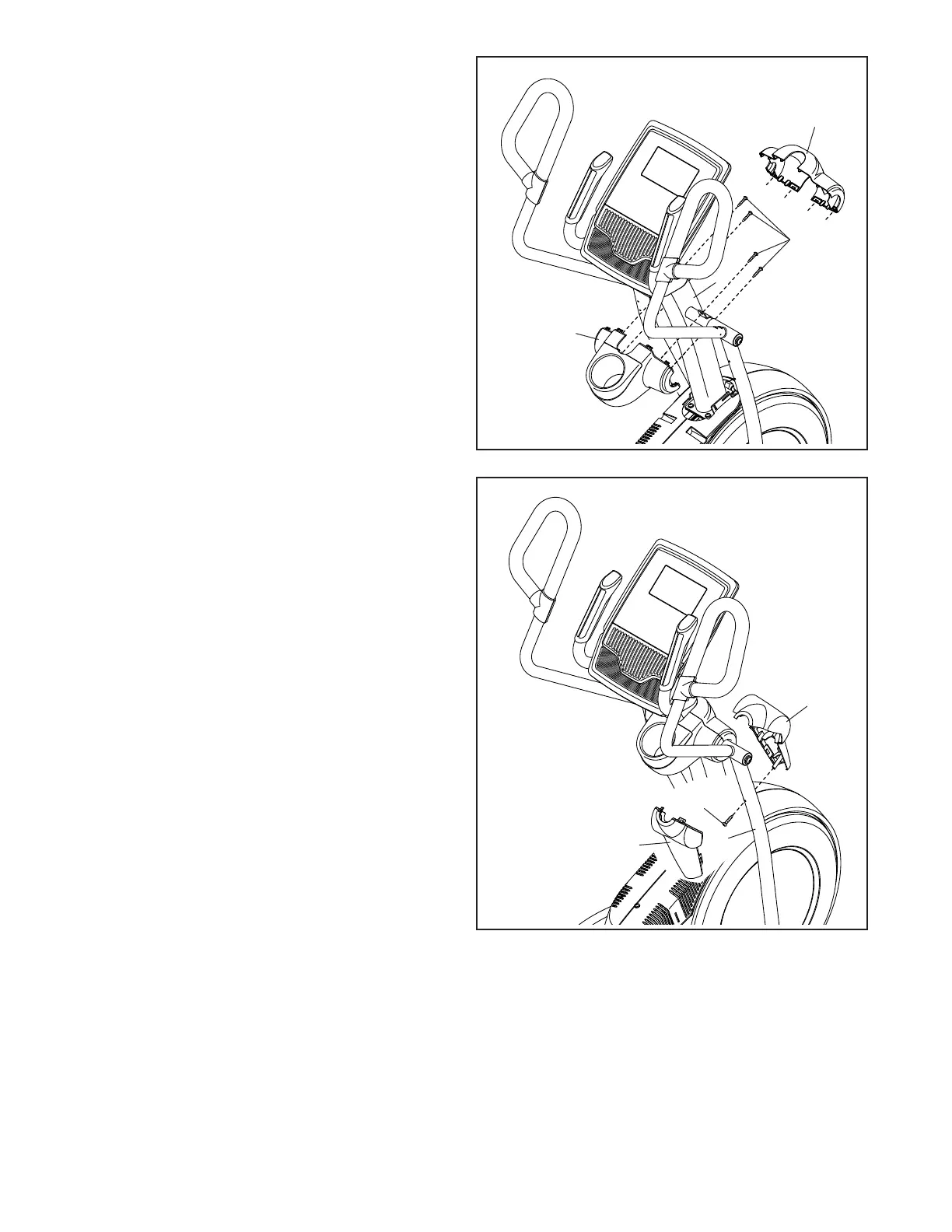

13. Orient the Rear Upright Cover (81) as shown,
and attach it to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
Next, orient the Front Upright Cover (117)
as shown and press it onto the Rear Upright
Cover (81).
14. Identify the Right Arm Front Cover (65), orient it
as shown, and attach it to the Right Upper Body
Leg (60) with an M4 x 16mm Screw (101).
Next, identify the Right Arm Rear Cover (66),
orient it as shown, and press it onto the Right
Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
