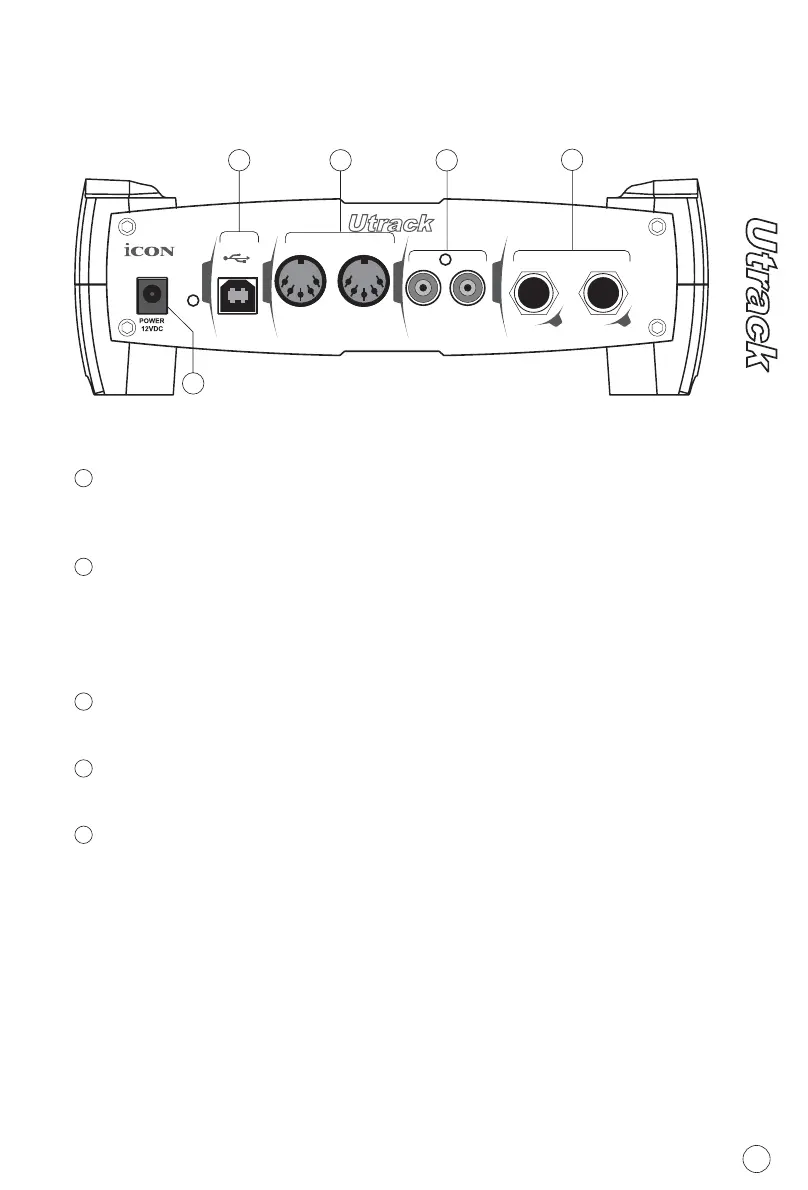

ICON Utrack - Rear Panel Layout

Rear Panel Layput
POWER SUPPLY CONNECTOR
S/PDIF COAXIAL IN AND OUT CONNECTORS
MIDI IN AND MIDI OUT CONNECTORS
USB CONNECTOR
LINE OUTPUTS 1-2
Connect the 12VDC power supply to this jack using an AC adaptor
provided.
S/PDIF digital input and output on coaxial RCA connectors. The
digital input is selected via the Utrack's control panel, while the
digital output will be sent to the coaxial .
MIDI input and output on standard 5-pin DIN connectors.
Connect to your computer's USB port with the provided USB cable.
These are balanced analog outputs on standard 1/4" TS connectors
at +4dB line level. These outputs will support standard stereo, as well
as 2 mono.
1
2
3
4
5
4
2
3
4
5
1
MIDI I/O
USB
INOUT
21
SPDIF I/O
INOUT
OUTPUT
USB
