SHELL & EPSCONSTRUCTION
The ICON
®
VARIANT PRO™ is engineered to the ICON WORLD STANDARD, which meets DOT FMVSS 218 (US), ECE 22.05
(EUROPE), & PSC (JAPAN) Helmet Safety Standards. Over 50 countries officially recognize these extensive head protection

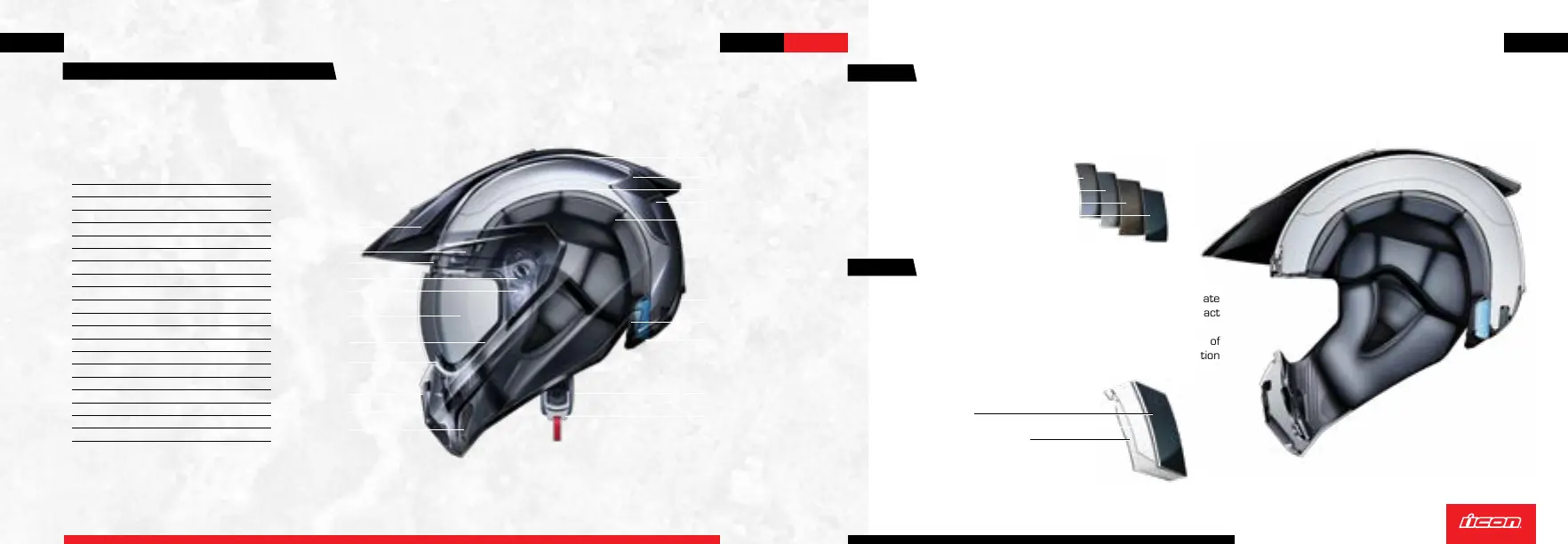

standards. Refer to the diagram below to familiarize yourself with specific names and terms used on the VARIANT PRO™
helmet before attempting to repair or replace parts on the helmet.
MAKE NO MODIFICATIONS. To maintain the full effectiveness of this helmet, there should be
no alteration to the structure of this helmet or its component parts. Paints and adhesives may
damage and render your helmet ineffective, without the damage being visible to the user.
EPS
Using industry-leading pneumatic molding processes, the VARIANT
PRO
TM
’s fiberglass, Spectra
®
and Carbon Fiber composite shell sports a
proprietary interlacing system crafted to emphasize superior strength
along with centralized mass and minimal weight.
The VARIANT PRO’s dual-density EPS liner is actually two separate
Expanded-Polystyrene liners engineered to offer maximum impact
absorption and force dissipation.
Additionally, both liners are channeled with an extensive series of
directional air ducts to distribute airflow from the outer ventilation
system.
SHELL
03 04
CERTIFIED PROTECTION
FIBERGLASS
SPECTRA
CARBON FIBER
*
GRAPHICS & CLEARCOAT
AIR DUCTS
COMPOSITE SHELL
OUTER DENSITY 1 EPS LAYER
INNER DENSITY 2 EPS LAYER
VISOR
01
TWO-POSITION MAIN VENTS
02
FOREHEAD VENT
03
PIVOT PIN LOCKING SYSTEM
04
SHIELD PIVOT SYSTEM
05
SHIELD
06
EYEPORT GASKET
07
BUILT IN BREATH DEFLECTOR
08
MOUTH VENT
09
NOSE PLATE
10
SIDE VENT
11
OUTER SHELL
12
SUPERVENT
13
DUAL DENSITY EPS
14
REAR VENT
15
HYDRADRY
TM
COMFORT LINER
16
NECK ROLL
17
LATERAL INTAKE
18
BASE GASKET
19
CHINSTRAP
20
DOUBLE “D” RING
21
01
02
03
04
06
07
08
05
09
10
11
12
13
14
15
16
17
18
19
20
21
* Carbon Fiber available on select models only.
