icontrols PULSE User Manual

24
25

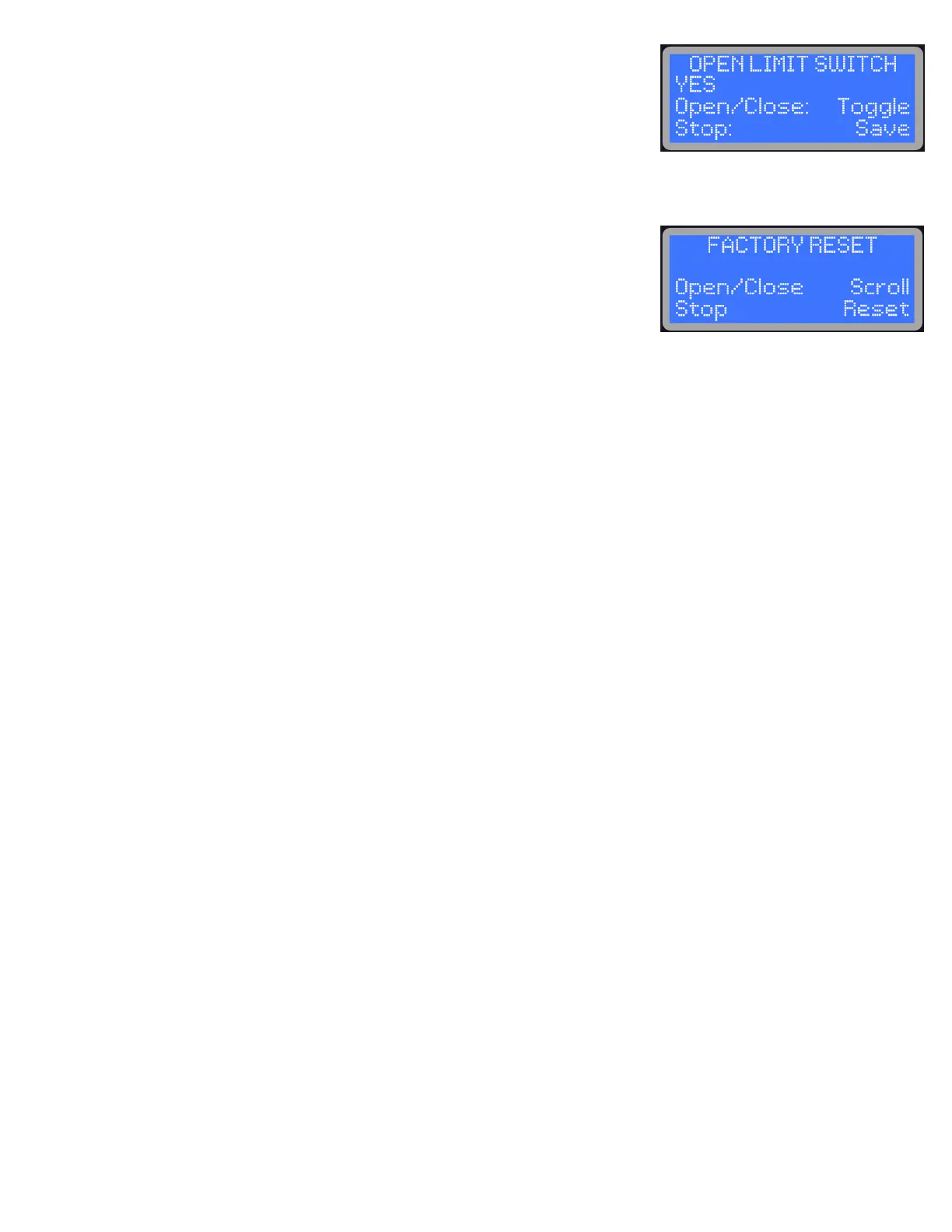

OPEN LIMIT SWITCH
If choosing to use a Switch (limit, proximity, reed, etc) to signal the door's fully
open position for encoder reset (connecting to H1 & H2 in junction box), set this
selection to YES. USING A SWITCH STILL REQUIRES INSTALLATION OF LIMIT BRACKETS
AS A SAFETY REDUNDANCY IN CASE OF SWITCH FAILURE.
FACTORY RESET
This setting allows for a reset of all menu options to the factory default. These are
the Factory Settings:
STARTUP MENU
Closing Timer: .......................................................................................................................................... OFF
Voltage Range: ...................................................................................................................................... 208V-240V
Motor Position: ........................................................................................................................................ Le
Door Limits Setup: .................................................................................................................................. 4 Turns - Must be Re-Programmed by Installer
Open Speed: .......................................................................................................................................... 3
Close Speed: .......................................................................................................................................... 3
ADVANCED SETUP MENU
Reversing Timer: ...................................................................................................................................... 1.0 Seconds
PWM Frequency: .................................................................................................................................... 12 kHz
Dynamic Brake: ..................................................................................................................................... OFF
Opening Force: ....................................................................................................................................... 20
Closing Force: ........................................................................................................................................ 3
Open Slow Speed: .................................................................................................................................. Normal
Close Slow Speed: .................................................................................................................................. Normal
Close Rampdown: .................................................................................................................................. Auto
Open Rampdown: ................................................................................................................................. Auto
Open Limit Options - Push Button: ......................................................................................................... Set Limit
Open Limit Options - Remote Radio:.................................................................................................... Set Limit
Output Relay: ........................................................................................................................................... Energized When Open
Red Flashing: ........................................................................................................................................... OFF
Advanced Red: ....................................................................................................................................... OFF
Maintenance Schedule: ........................................................................................................................ 250,000 Cycles
Open Limit Switch: .................................................................................................................................. No
Aer performing factory reset (if deemed necessary), adjust settings as required, and re-program limit settings and
perform calibration thereaer.
EXITING ADVANCED MENU - CALIBRATION & TESTING
To exit from the ADVANCED MENU, press and release the STOP button while ADVANCED MENU appears on the LCD.
This will bring you back to the STARTUP MENU. Press and release the STOP button again to exit all menus and to test
the settings that you have changed. If, while you were in the ADVANCED MENU and have saved changes to the PWM
Frequency, Open Rampdown or Close Rampdown you will be required to do a quick system calibration. Screen
prompts will provide real-time instruction on calibration requirements. See Page 21 for more detailed informaiton on
Calibration.
Once Calibration is completed or if it was not required, the system will run a quick diagnostic, and the LCD will read
'DOOR IS READY'. This is a prompt to open the door and reset the encoder, and also appears whenever there is a
power reset. Once the door is opened (press the OPEN button, door will rise at slow speed until it rests against Limit
Brackets), normal door function will resume. It is now that testing of the changed functions can commence.
