ICP HMH012KD User Manual

- 26 -
Avoid areas where electrical wiring, conduits or
gas lines are located. Accidentally cutting a live
wire or gas line can cause death or injury.
12K
12K, 18K, 24K
ø2.75"(70mm)
Left rear piping
1.8"
(46mm)
Right rear piping
Installation plate
Indoor Outdoor
WALL
5-7mm
(0.2~0.3")
18K, 24K
Hole center
1.9"
(48mm)
1"
(25mm)
2"
(51mm)

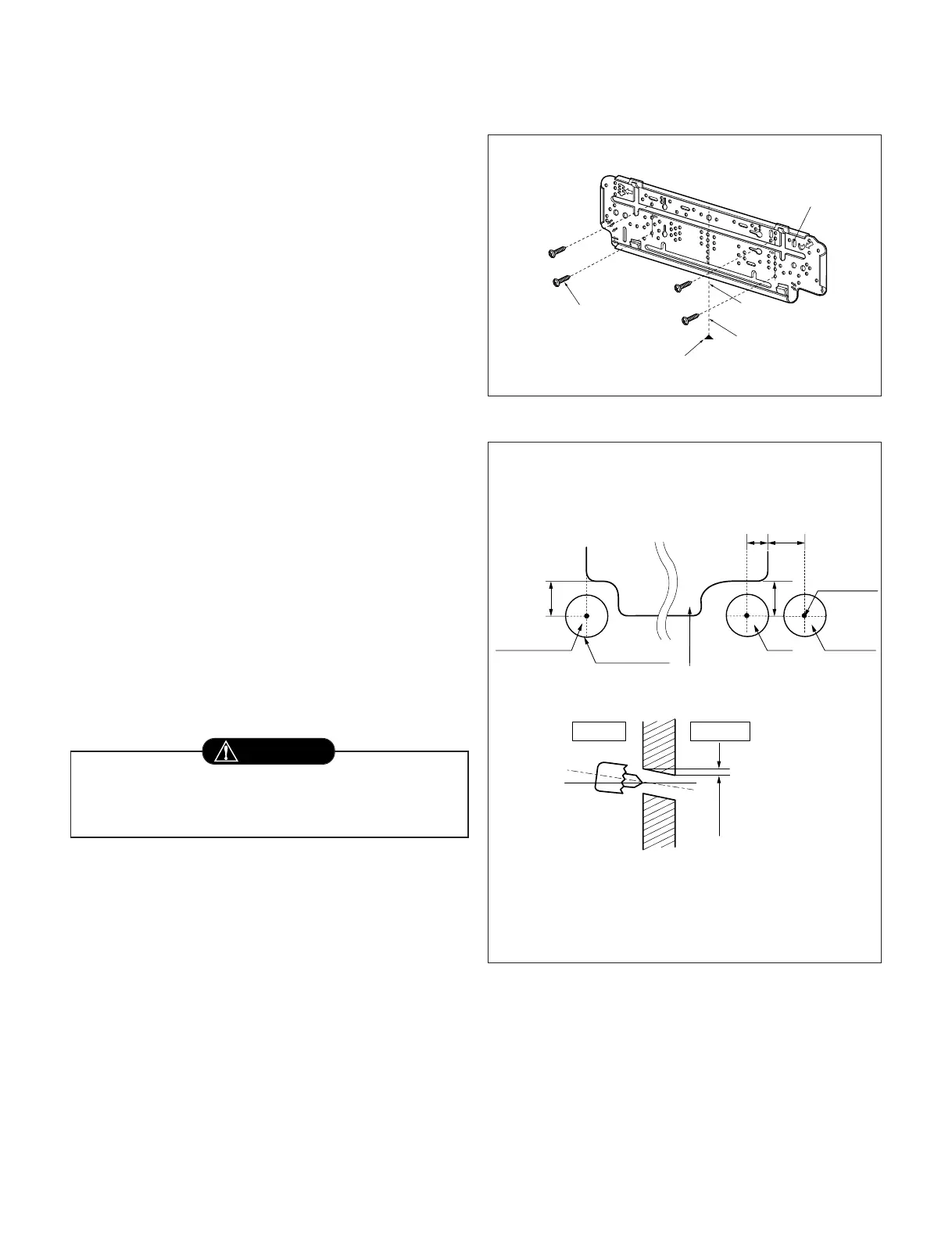

2) Indoor Unit Installation
The mounting wall should be strong and solid enough to
protect it from the vibration.
1.Mount the installation plate on the wall with four
Type "A" screws.
(if mounting the unit on the concrete wall, consider
using anchor bolts.)
• Always mount the Installation Plate horizontally by
aligning the marking-off line by means of the thread
and a level.
2. Drill the piping hole with 70mm(2.75") dia.
holecore drill.
• Drill the Piping hole at either the right or the left and
the hole should be slightly slanted to the outdoor
side.
Type "A" screw
Installation Plate
marking-off line
Thread
Weight
The lower left and right side of Installation Plate
WARNING
