Gas side
3-way valve
Gas side
3-way valve
Liquid side
3-way valve
(18K, 24K)
(12K)
Liquid side
2-way valve

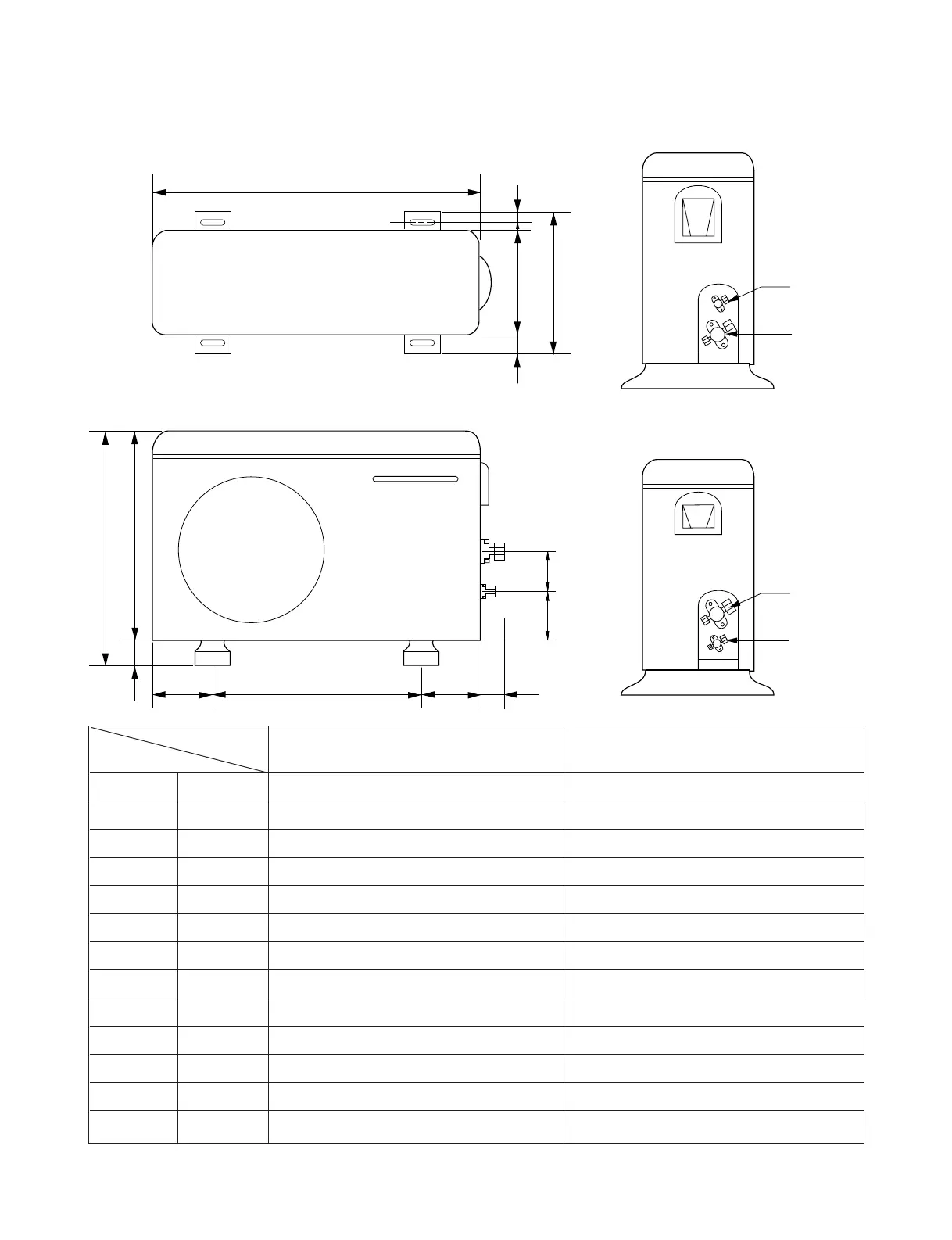

(2) Oudoor Unit
MODEL
9K, 12K 18K, 24K
DIM
W mm(inch) 801(31.5) 870(34.3)
H mm(inch) 555(21.8) 655(25.8)
D mm(inch) 262(10.3) 320(12.6)
L1 mm(inch) 339(13.3) 370(14.6)
L2 mm(inch) 37(1.5) 25(1.0)
L3 mm(inch) 543.6(21.4) 630(24.8)
L4 mm(inch) 11.4(0.45) 25(1.0)
L5 mm(inch) 591(23.3) 546(21.5)
L6 mm(inch) 105(4.13) 162(6.4)
L7 mm(inch) 105(4.13) 162(6.4)
L8 mm(inch) 72.5(2.85) 54(2.1)
L9 mm(inch) 77(3.03) 74.5(2.9)
L10 mm(inch) 86.4(3.4) 79(3.1)
