ICP OCF105A12C - Page 8

THREAD SPIN SLEEVE
ONTO OUTER SLEEVE
CUT OUTER SLEEVE
BACK 5”
THREAD SPIN SLEEVE BACK 10” CUT STAINLESS STEEL
CORE BACK BY 3”
9

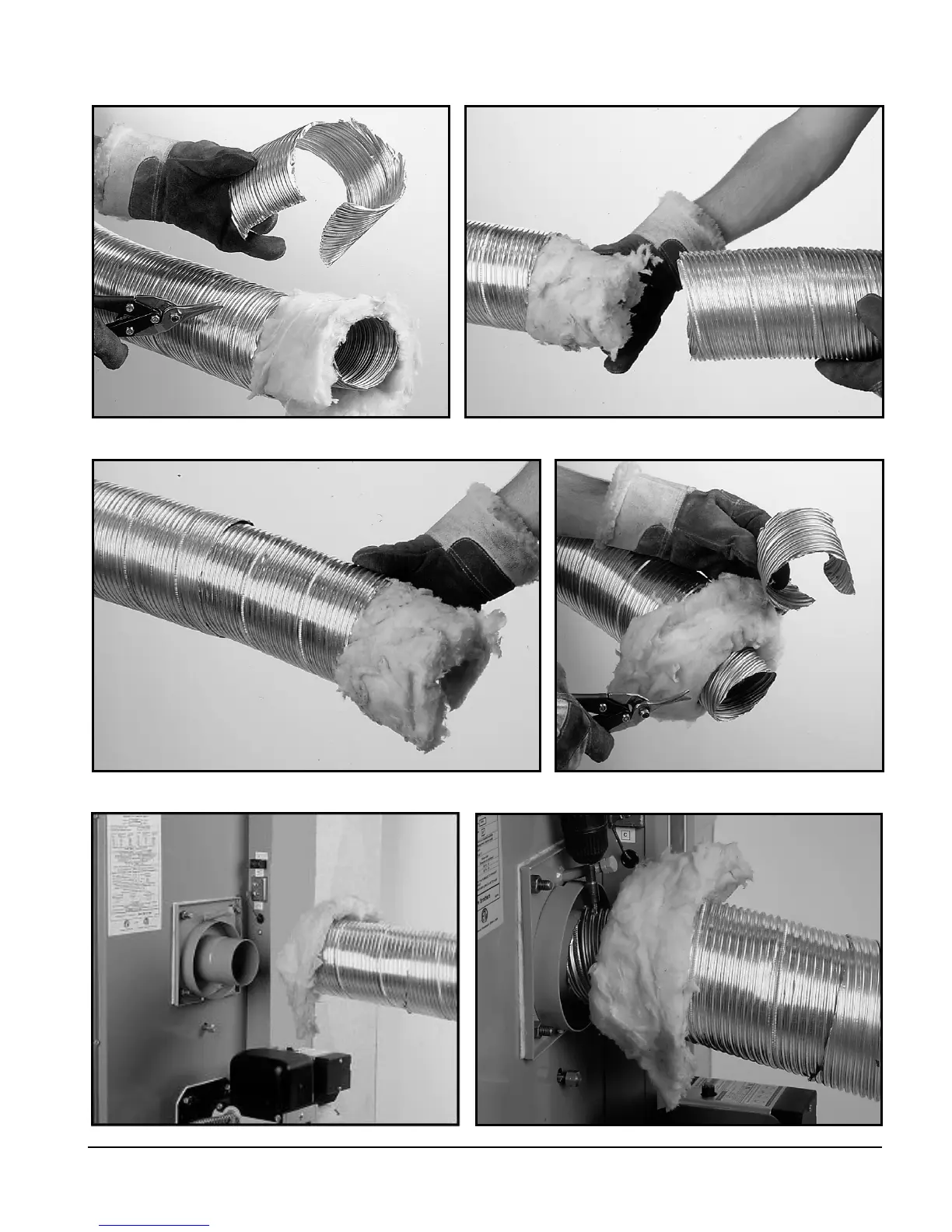

FIGURE 1.3 FIGURE 1.4
FIGURE 1.1 FIGURE 1.2
FIGURE 1.5 FIGURE 1.6
INSERT STAINLESS STEEL
CORE ONTO BREECH TUBE
DRIVE THREE STAINLESS STEEL
SCREWS, STARTING NEAR TOP
445 01 4024 05
