536-E OPERATOR MANUAL
18
ENGLI SH
Names & Terms
ICS 536-E NAMES AND TERMS
Bar clamp plate
The plate between the guidebar and side cover that clamps the guidebar
to prevent movement during operation.
Bar slot
Bystander safety zone
must remain free from bystanders, children and pets.

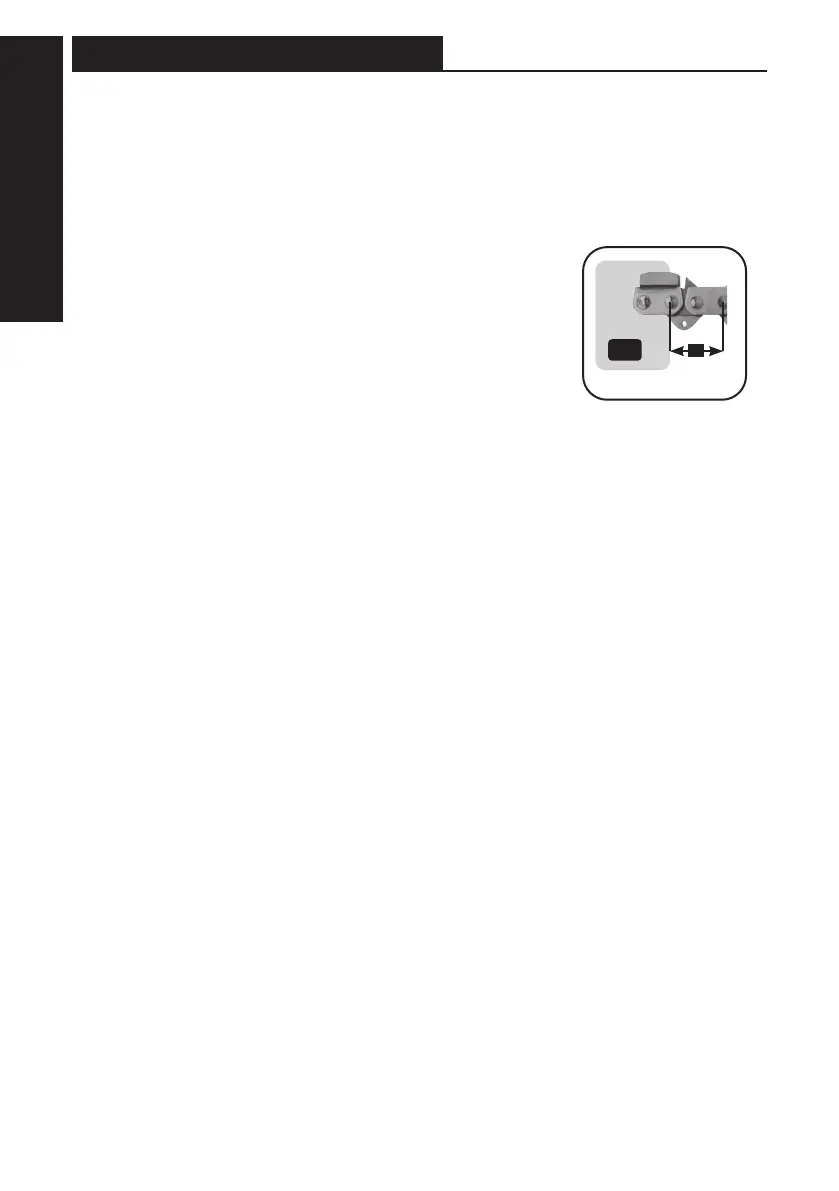

Chain pitch
The distance between any three consecutive rivets on the
chain divided by two.
chain and compensate for chain stretch from normal use.
Front handle
The support handle located at or toward the front of the power cutter intended to
be gripped by the left hand.
Guidebar
A railed structure that supports and guides the chain.
Kickback
The rapid backward and/or upward motion of the guidebar, occurring when the
snags in the workpiece.
operator.
Powerhead
A power cutter without the chain or guidebar.
Pushback
The rapid backward motion of the guidebar, occurring when the chain on
snags in the workpiece.
Rear handle
The support handle located at or toward the rear of the power cutter
intended to be gripped by the right hand.
A structural barrier at the bottom of the rear handle to protect the operator in case
the chain breaks or derails.
Side cover
The component on the powerhead that covers the drive sprocket and directs
debris away from the operator during use.
Side cover nuts
The components on the side cover that secure the side cover to the powerhead
A device that prevents the unintentional operation of the trigger until
manually released.
A mechanism that controls motor operation.
A device used as a fulcrum to provide mechanical advantage during cutting.
.444
÷2
=
determine chain pitch
