3.0 OPERATION: FRONT DISPLAY PANEL
Energize each bus by closing the main external breaker or disconnect
device on the bus input lines. Check that the distribution panel front graphic
display powers up. The Distribution Series 3 will start up and operate at the
factory default settings when DC power is connected, generally requiring no
further set up or adjustment for basic operation.
3.1 Graphic Display
Use the front display screen and two interface buttons on the front panel to
monitor the bus voltage, total bus current, network status, channel output
status of the selected bus and the alarm status of the external monitored
devices.

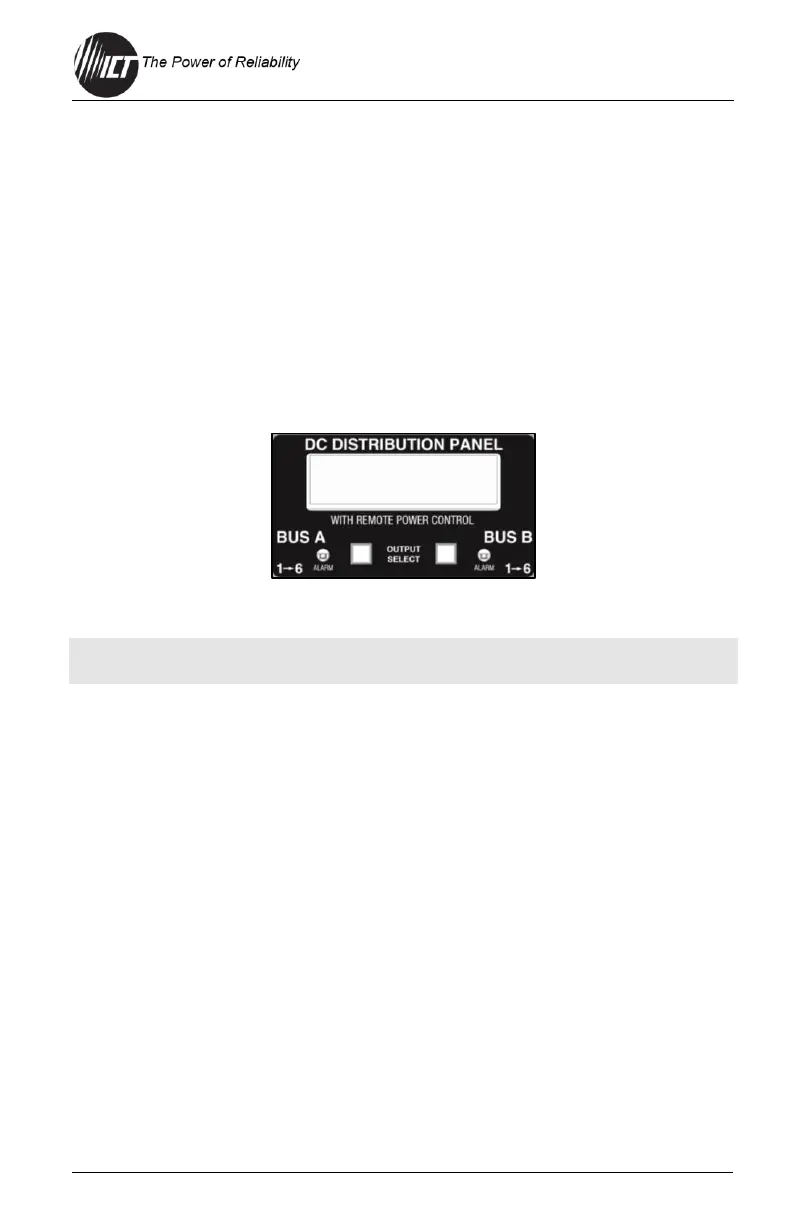

Figure 5. Front Control Interface
NOTE: The LCD backlight will activate when pressing either "Output Select"
button and will turn off after approximately 15 minutes of inactivity.
Bus A "Output Select" Button: Use to scroll through the Bus A display
screens; or to switch to the Bus A main screen from Bus B.
Bus B "Output Select" Button: Use to scroll through the Bus B display
screens; or to switch to Bus B main screen from Bus A.
Holding either "Output Select" button for 2 seconds will return the display to
the main screen for that bus. Holding either "Output Select" button for 20
seconds will reset the password to the factory default (see Section 3.3).
3.2 Menu Structure
See the complete menu structure in the following diagram. Navigate through
the various screens using the two interface buttons.
