a timed sequence if the "power-on sequencing" has been enabled on the
Device Setup page (see Section 4.4).
Disable Bus Buttons: Use these to open the six channel relays on that
bus, disabling power to external loads on the bus.
Output Status
Each output on the unit will be displayed with name and status. A green
Enabled indicates the electronic relay on that output channel is closed or
turned on. An orange Disabled indicates that the electronic relay is open or
turned off. A red BREAKER OFF indicates that the mechanical breaker has
been tripped. (Enabled, Disabled, BREAKER OFF).
Select the "On" or "Off" buttons to turn the output on or off. This will not
affect the mechanical circuit breaker. The default setting is Enabled.

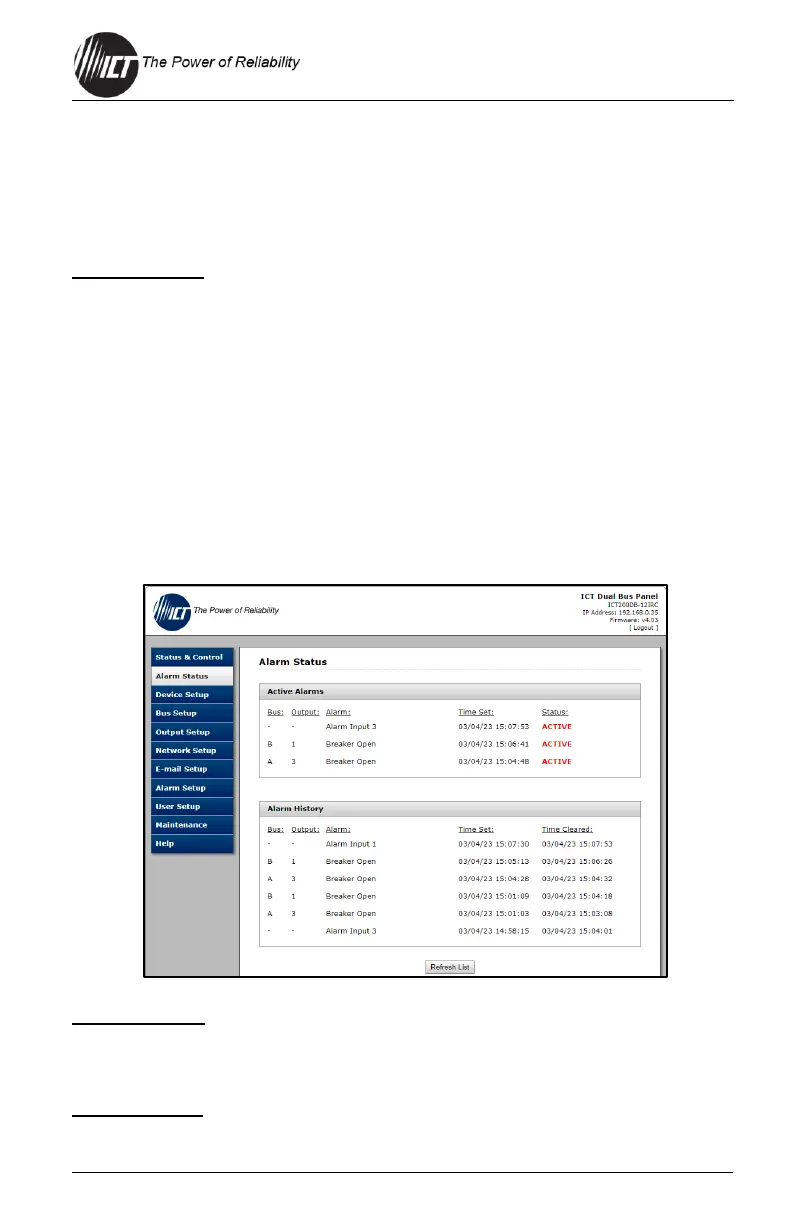

4.3 Alarm Status
Use this tab to monitor all active alarms and up to 100 historic alarms. The
history will be cleared after the unit is rebooted.
Active Alarms
Shows the bus and output that the alarm is on; the name of the alarm; the
time that the alarm started and the status of the alarm (ACTIVE).
Alarm History
Shows the bus and output that the alarm is on; the name of the alarm; the
time that the alarm started; and the time that the alarm cleared.
