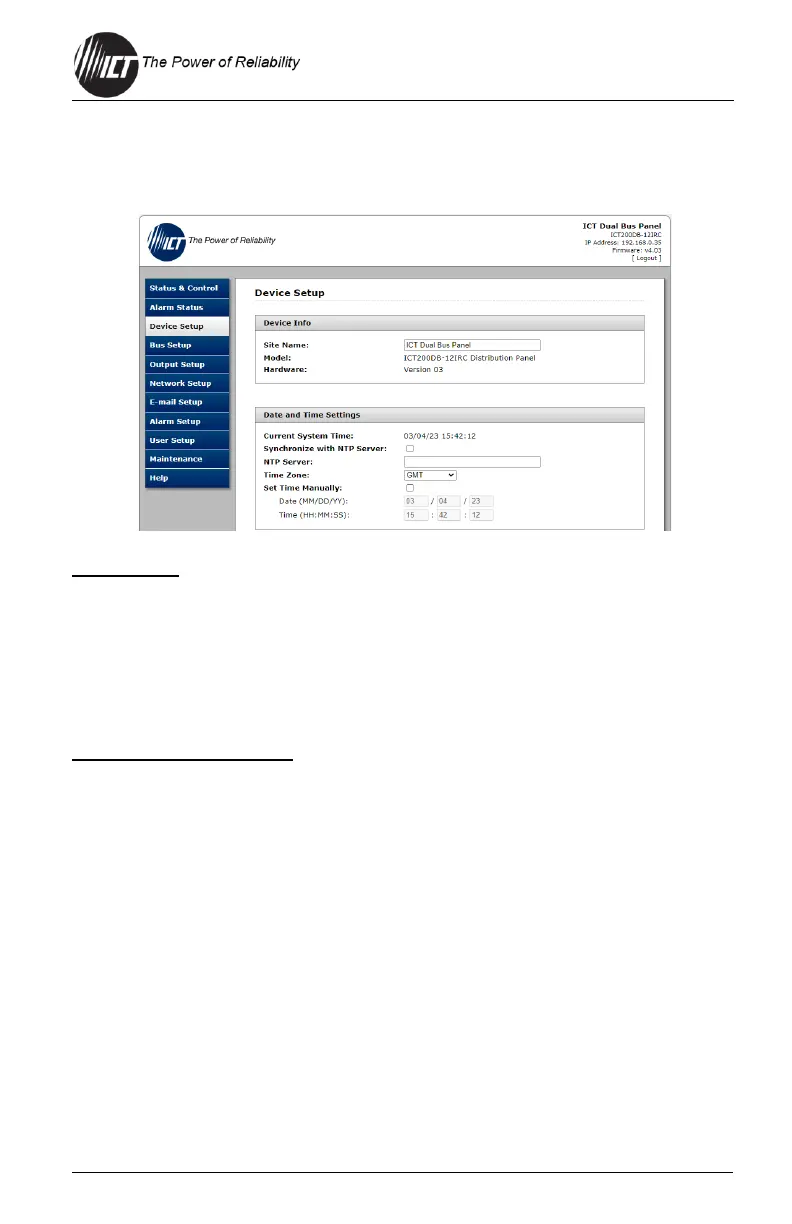

4.4 Device Setup
Use this tab to configure the unit’s name, set the date and time and enable
the watchdog timer and data logging features.
Device Info
Site Name: Enter a descriptive name for the system. This name will be
used in all e-mail messages.
Model: Shows the model number of the unit.
Hardware: Shows the hardware version.
Date and Time Settings
Current System Time: Shows the current system date and time.
Synchronize with NTP Server: Select the check box to synchronize
with NTP Server. The default is Enabled.
NTP Server: Set an NTP server address here (i.e., time.nist.gov) to
automatically load network time.
Time Zone: Set the time zone this unit will be using.
Set Time Manually: Select the check box to enable manually setting the
time and date. The default is Disabled.
