iDataLink maestroRr K200 Install Guide

ADS-RR(SR)-FOR02-AS
Ford ExplorEr with MyFord 4 inch scrEEn 2011-2014
Automotive Data Solutions Inc. © 2014
4
C
A
F
G
C
A
G
F
1
E
E
AUX INAUX IN
CUT AND REMOVE
THE RCA JACKS
STEP 1
BROWN/RED (NOT CONNECTED)
BROWN/YELLOW (NOT CONNECTED)
MAIN
HARNESS
RCA CABLES
WIRES FROM
VEHICLE
FO2 T-HARNESS
FACTORY RADIO HARNESS
CONNECT ONLY WHEN
THERE IS NO SYNC IN
VEHICLE
WHITE - LF SPEAKER (+)
WHITE/BLACK - LF SPEAKER (-)
GRAY - RF SPEAKER (+)
GRAY/BLACK - RF SPEAKER (-)
GREEN - LR SPEAKER (+)
GREEN/BLACK - LR SPEAKER (-)
PURPLE/BLACK - RR SPEAKER (-)
YELLOW - 12V (+)
BLACK - GROUND
RED - ACCESSORY (+)
BLUE/WHITE - AMP. TURN ON (+)
PURPLE - RR SPEAKER (+)
STEP 2
STEP 3
STEP 4
MAESTRO RR MODULE
ORANGE - PARKING LIGHT (+)
PURPLE/WHITE - REVERSE LIGHT (+)
LTGREEN - E-BRAKE (-)
YELLOW/BLACK - FOOT BRAKE
PINK - VEHICLE SPEED
BROWN - MUTE (-)
CONNECT TO
AFTERMARKET RADIO
RADIO CONTROL CABLE
SEE
AFTERMARKET
RADIO GUIDE
FOR WIRE
COLORS

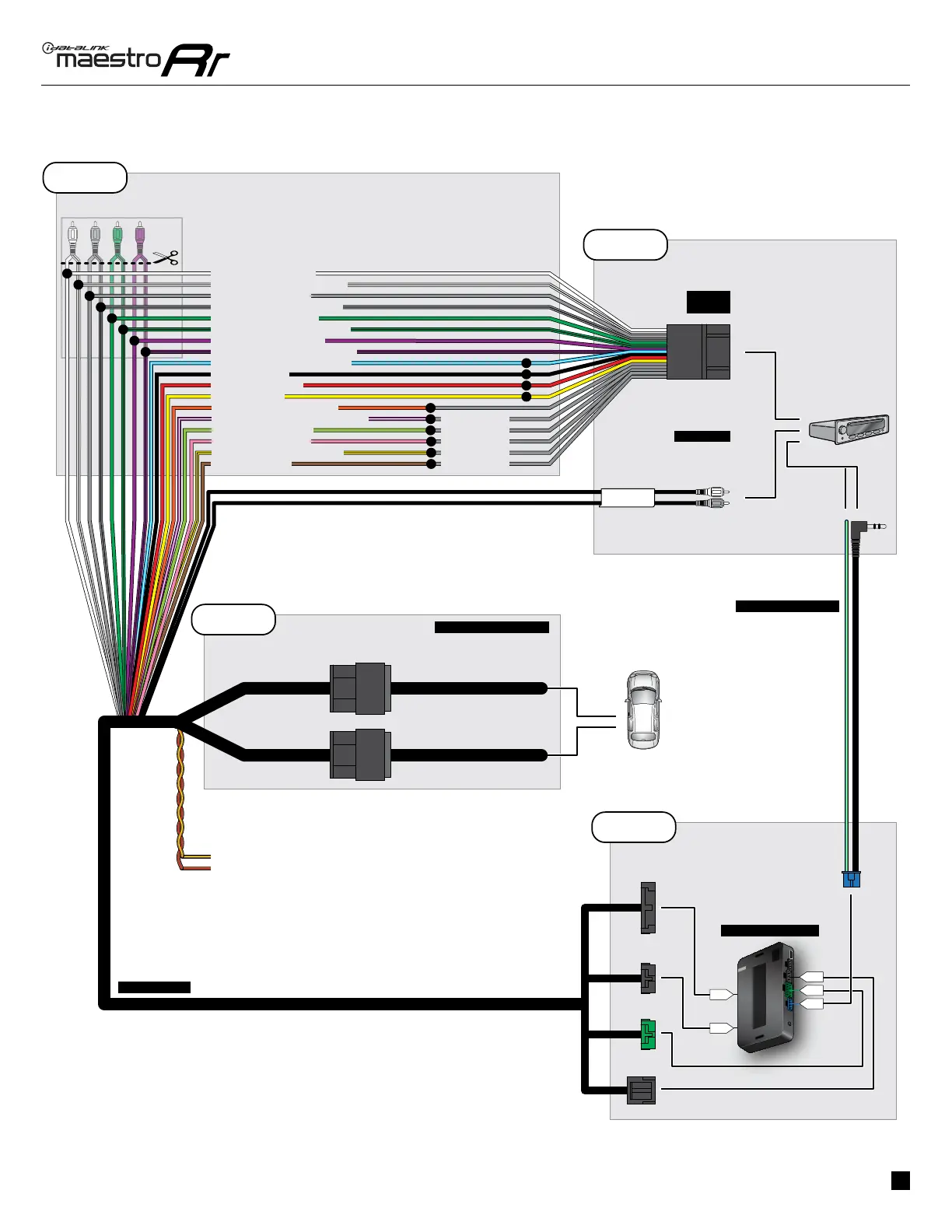

WIRING DIAGRAM
