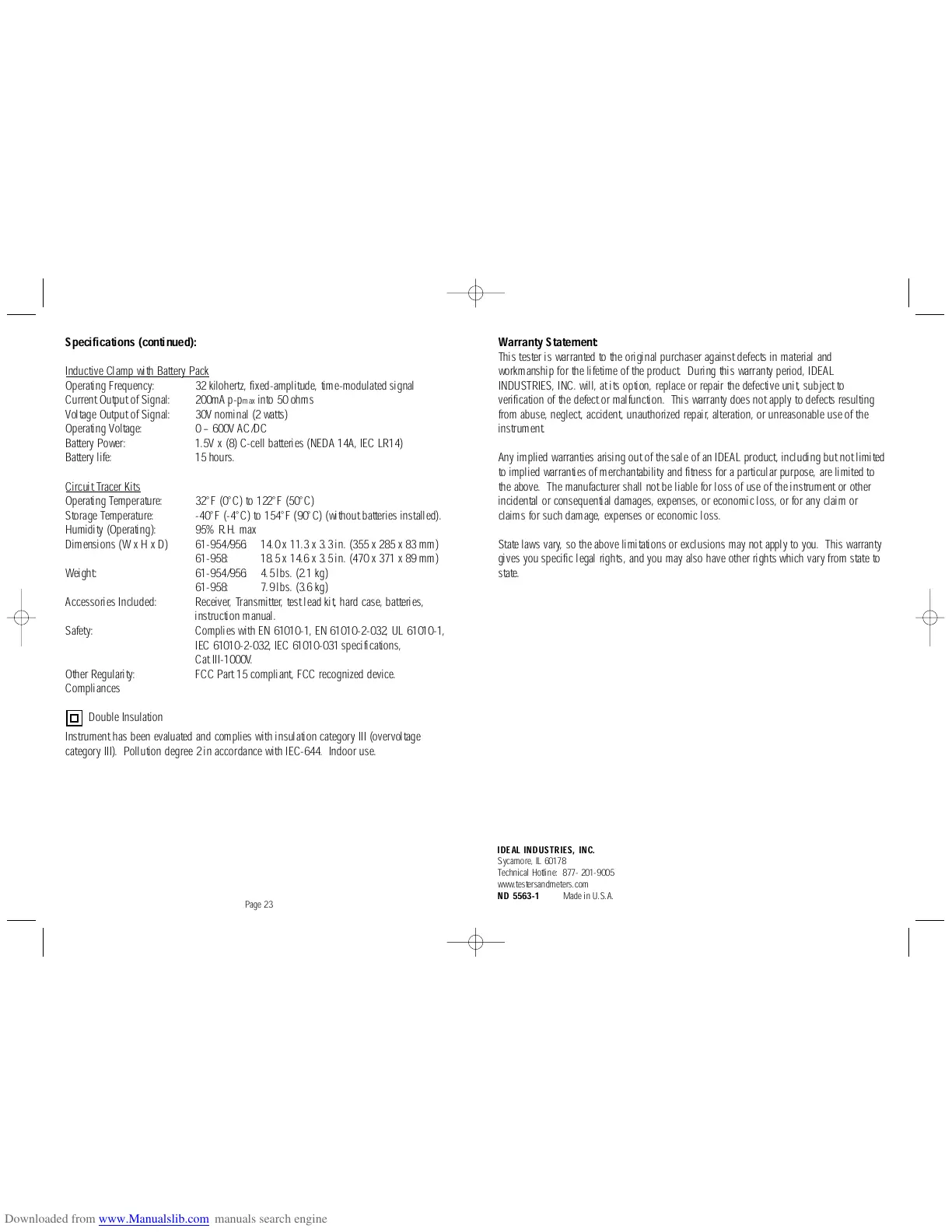

Specifications (continued):
Inductive Clamp with Batter
y Pack
Operating Frequency: 32 kilohertz, fixed-amplitude, time-modulated signal
Current Output of Signal: 200mA p-pmax into 50 ohms
Voltage Output of Signal: 30V nominal (2 watts)
Operating Voltage: 0 – 600V AC/DC
Battery Power: 1.5V x (8) C-cell batteries (NEDA 14A, IEC LR14)
Battery life: 15 hours.
Circuit Tracer Kits
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-4°C) to 154°F (90°C) (without batteries installed).
Humidity (Operating): 95% R.H. max
Dimensions (W x H x D) 61-954/956: 14.0 x 11.3 x 3.3 in. (355 x 285 x 83 mm)
61-958: 18.5 x 14.6 x 3.5 in. (470 x 371 x 89 mm)
Weight: 61-954/956: 4.5 lbs. (2.1 kg)
61-958: 7.9 lbs. (3.6 kg)
Accessories Included: Receiver, Transmitter, test lead kit, hard case, batteries,
instruction manual.
Safety: Complies with EN 61010-1, EN 61010-2-032, UL 61010-1,
IEC 61010-2-032, IEC 61010-031 specifications,
Cat III-1000V.
Other Regularity: FCC Part 15 compliant, FCC recognized device.
Compliances
Double Insulation
Instrument has been evaluated and complies with insulation category III (overvoltage
category III). Pollution degree 2 in accordance with IEC-644. Indoor use.
IDEAL INDUSTRIES, INC.
Sycamore, IL 60178
Technical Hotline: 877- 201-9005
www.testersandmeters.com
ND 5563-1
Made in U.S.A.
Page 23
Warranty Statement:
This tester is warranted to the original purchaser against defects in material and
workmanship for the lifetime of the product. During this warranty period, IDEAL
INDUSTRIES, INC. will, at its option, replace or repair the defective unit, subject to
verification of the defect or malfunction. This warranty does not apply to defects resulting
from abuse, neglect, accident, unauthorized repair, alteration, or unreasonable use of the
instrument.
Any implied warranties arising out of the sale of an IDEAL product, including but not limited
to implied warranties of merchantability and fitness for a particular purpose, are limited to
the above. The manufacturer shall not be liable for loss of use of the instrument or other
incidental or consequential damages, expenses, or economic loss, or for any claim or
claims for such damage, expenses or economic loss.
State laws vary, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to
state.
