IDEAL COMBI ESP 24 User Manual

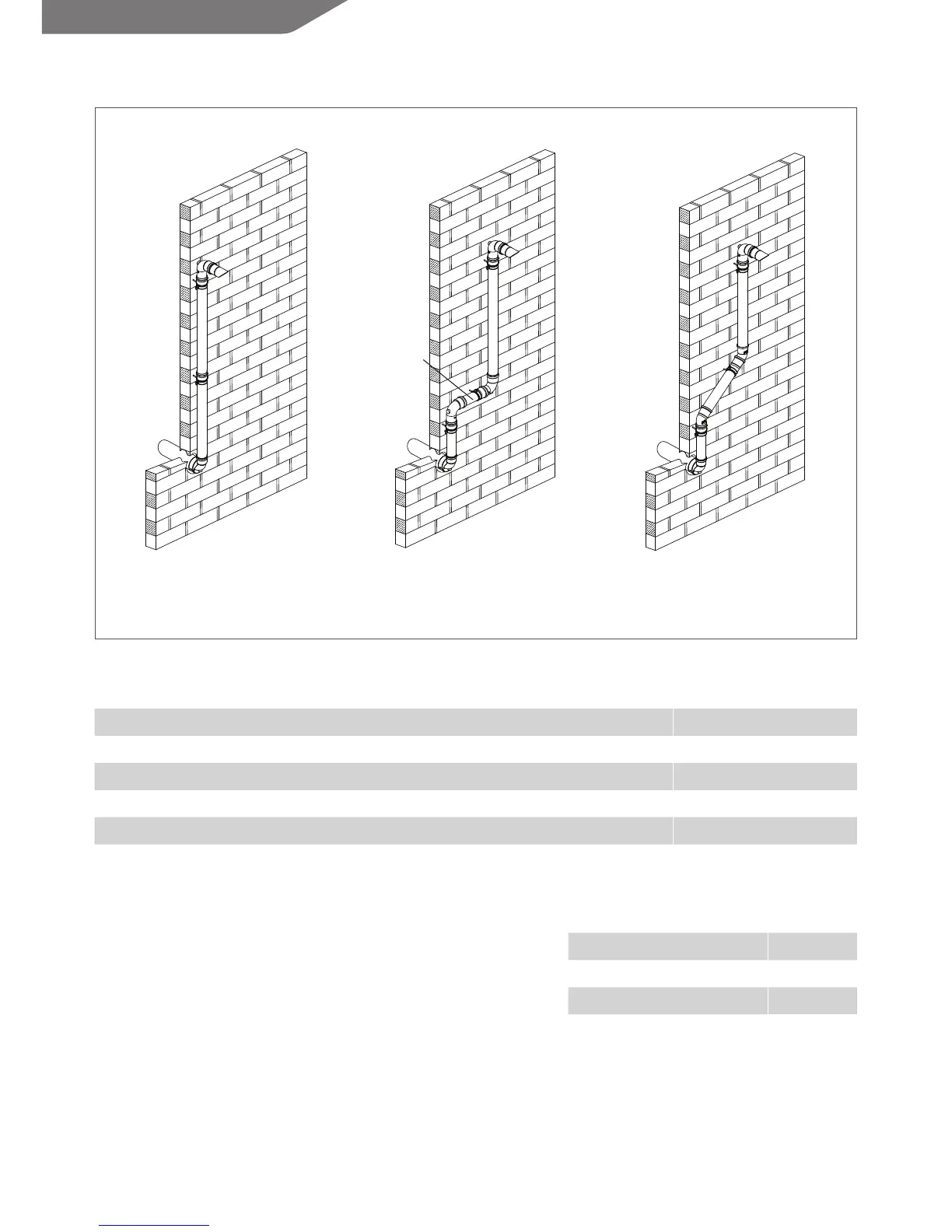

If additional elbows to those supplied in the High
Level Flue Outlet kit are used, deduct the following
resistances (metres) from the maximum boiler
flue length.
1
/
2
˚
IMPORTANT
Flue must
always slope at
least 1
back to the
boiler
VERTICAL
HORIZONTAL
LEFT OR RIGHT 45˚ LEFT OR RIGHT
70
LOGIC CODE COMBI ES IDEAL PART NO.
High level flue outlet kit 208178
Flue extension kit 60 dia (1m) - for high level flue outlet kit 203228
High level 90° elbow 203229
High level 45° elbow 203230
LOGIC CODE COMBI ES METRES
90° elbow 1.4
45° elbow (pair) 1.25
