IDEAL INDEPENDENT COMBI 30 - Unpacking

18
Installation and Servicing
SECTION 2 - INSTALLATION

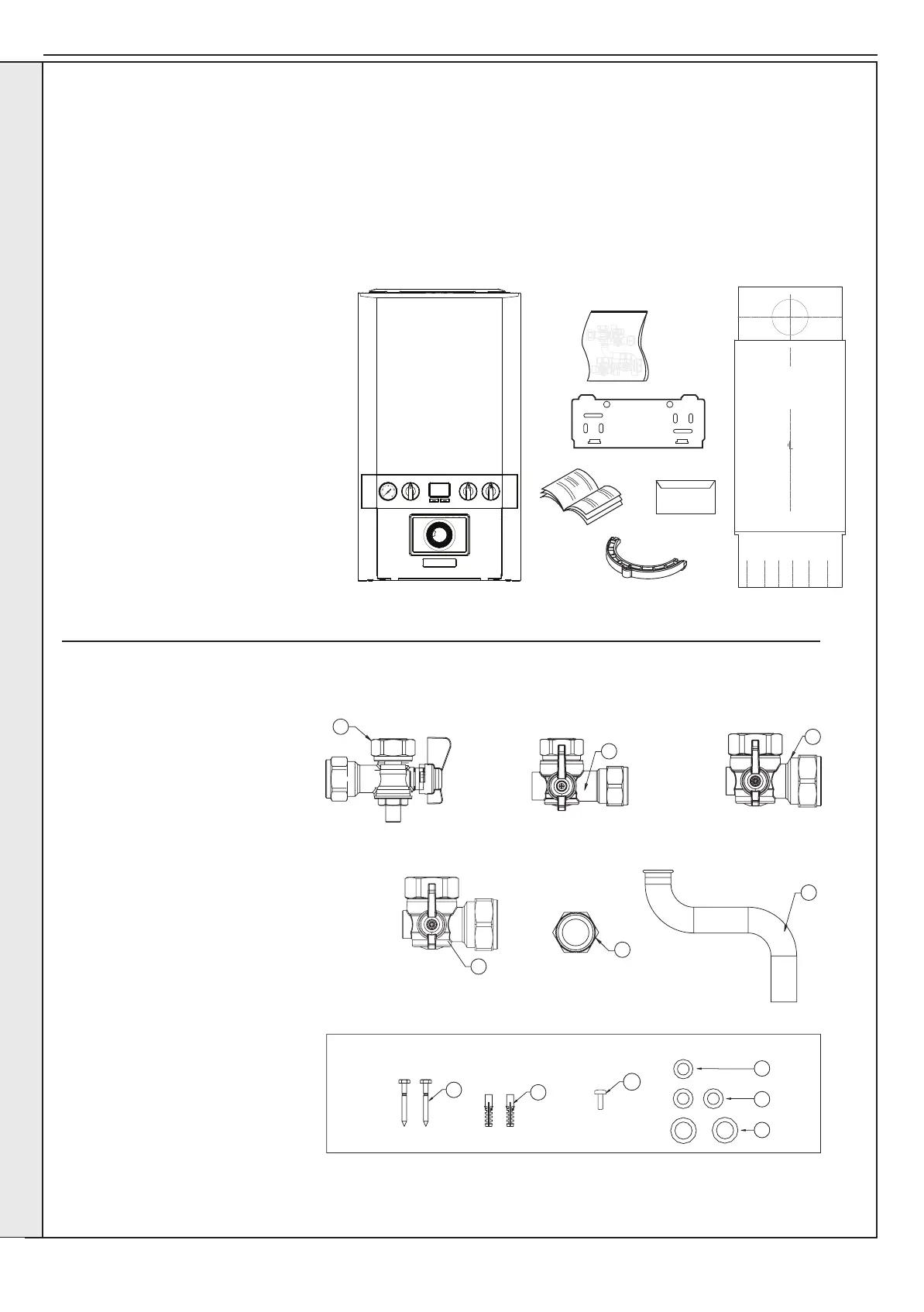

HARDWARE PACK CONTENTS
Gas Valve Pack
1. Gas Cock
2. Valve - DHW
3. Valve - Return
4. Valve - Flow
5. Pipe - DHW Inlet
6. Nut - G 1/2"
7. Washer - Gas
8. Washer - DHW
9. Washer - CH
10. Screw
11. Wall Plug
12. Turret Clamp Screw (spare)
Fixings Pack
3
4
7
10
11
8
9
2
6
5
1
12
2.2 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet in Pack
B is suppled as a separate order.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Bag
C Wall Mounting Plate
D These Installation/Users Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Boiler Guarantee & Registration Pack
G Turret Clamp (tted to boiler)
C
A
D
B
E
F
Boiler Guarantee
G
