IDEAL PRO Series User Manual

Page 25

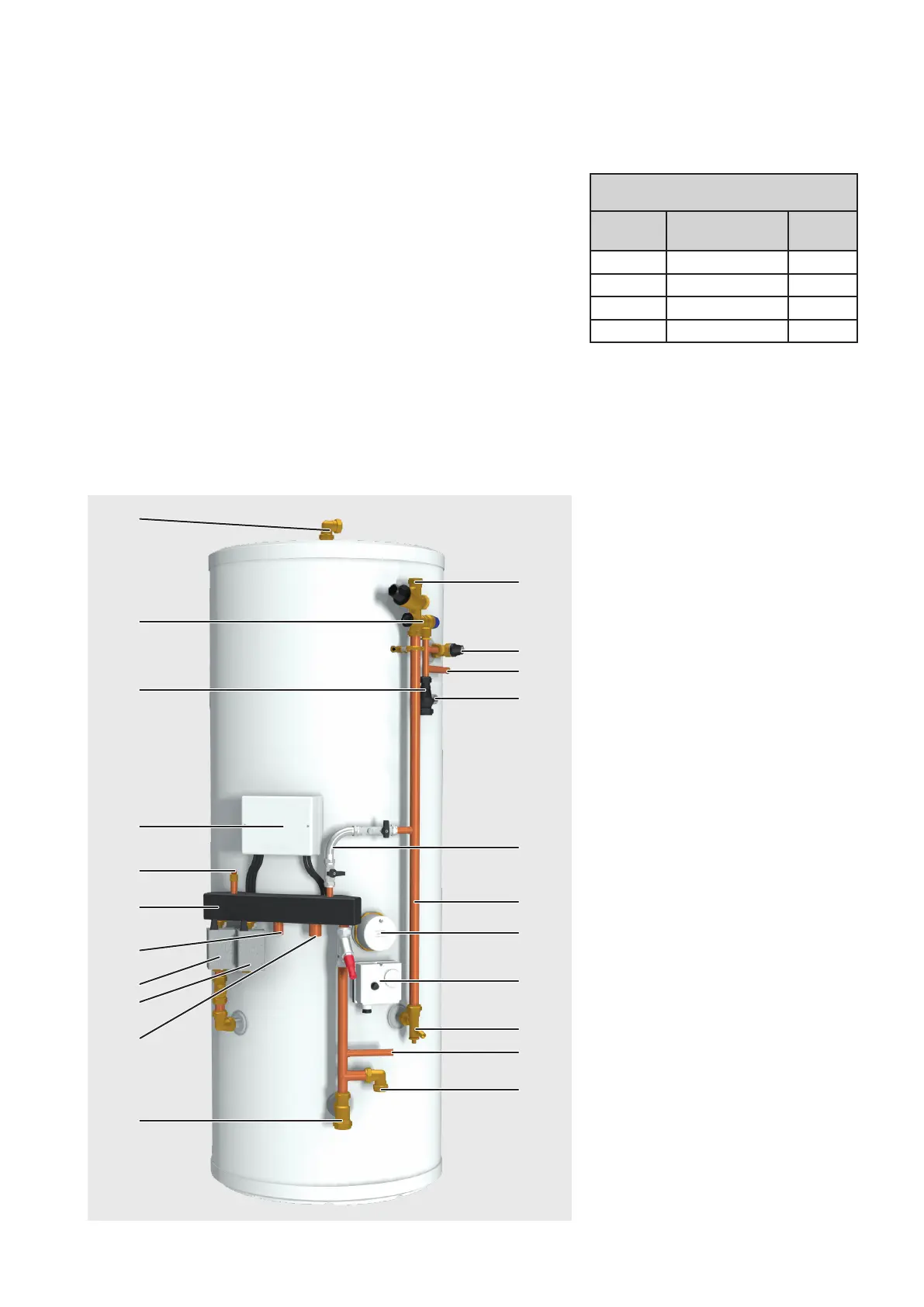

Appliance Arrangement / Fitted
Components
1 Hot water draw o (22mm), including
elbow
2 22mm cold supply
3 Combination inlet group incorporating
pressure reducing valve, strainer, check
valve, balance cold take o point,
expansion relief valve and expansion
vessel connection points.
4 Pressure and temperature relief valve 89-
96°/6 bar
5 Connection for heating expansion relief
valve
6 Tundish
7 Hot water secondary return 22mm (plain
pipe, not tted to smaller sizes, see table
2)
8 Cold feed assembly
9 Immersion heater 1¾” BSP 3kW
10 Wiring junction box
11 Manifold assembly
12 Central heating zone 1 (22mm)
13 Central heating zone 2 (22mm) (optional)
14 Boiler ow (28mm)
15 Dual control/overheat stat (22mm)
16 Drain valve
17 Connection for heating expansion vessel
18 Central heating return
19 Boiler return
20 Filling loop
21 Manual air vent
22 Hot water zone valve
Please note
All factory tted components are tightened
during manufacture, however all should be
checked before installation.
4
5
7
9
20
15
16
17
18
8
2
1
6
3
10
11
13
21
19
12
14
22
The Ideal System Ready is pre-plumbed and pre-wired for domestic hot water and
one heating zone, incorporating a sealed primary lling loop and mains cold feed
inlet control components tted.
The following pages only provide details of the pre-fabricated pipework, components
and electrical wiring that have been tted to the Ideal Pro cylinder. For this reason all
the design, installation and servicing instructions provided earlier in these instructions
for the Ideal Pro cylinder are all applicable to the Ideal System Ready and should be
followed when installing this unvented storage appliance.
The range consists of indirect models from 180 litres through to 300 litres. Each
appliance is supplied complete with the following pipework and components which
have been tted, wired (with the exception of the immersion heater) and fully tested
in the factory.
FOR THIS REASON, PLEASE ENSURE THAT YOU ADD ‘SYSTEM READY’ TO THE
PRODUCT REFERENCE IF YOU REQUIRE THE PRE-PLUMBED/WIRED APPLIANCE
WHEN ORDERING OR REQUESTING PRICES.
IDEAL SYSTEM READY
SYSTEM DESIGN
Ideal System Ready Range
Model
Size
Appliance
Reference
Volume
(litres)
IND180 IDEPROIN180PPSR 178
IND210 IDEPROIN210PPSR 208
IND250 IDEPROIN250PPSR 248
IND300 IDEPROIN300PPSR 287
For further technical information, please refer
to Page 6 and 7 of this manual
