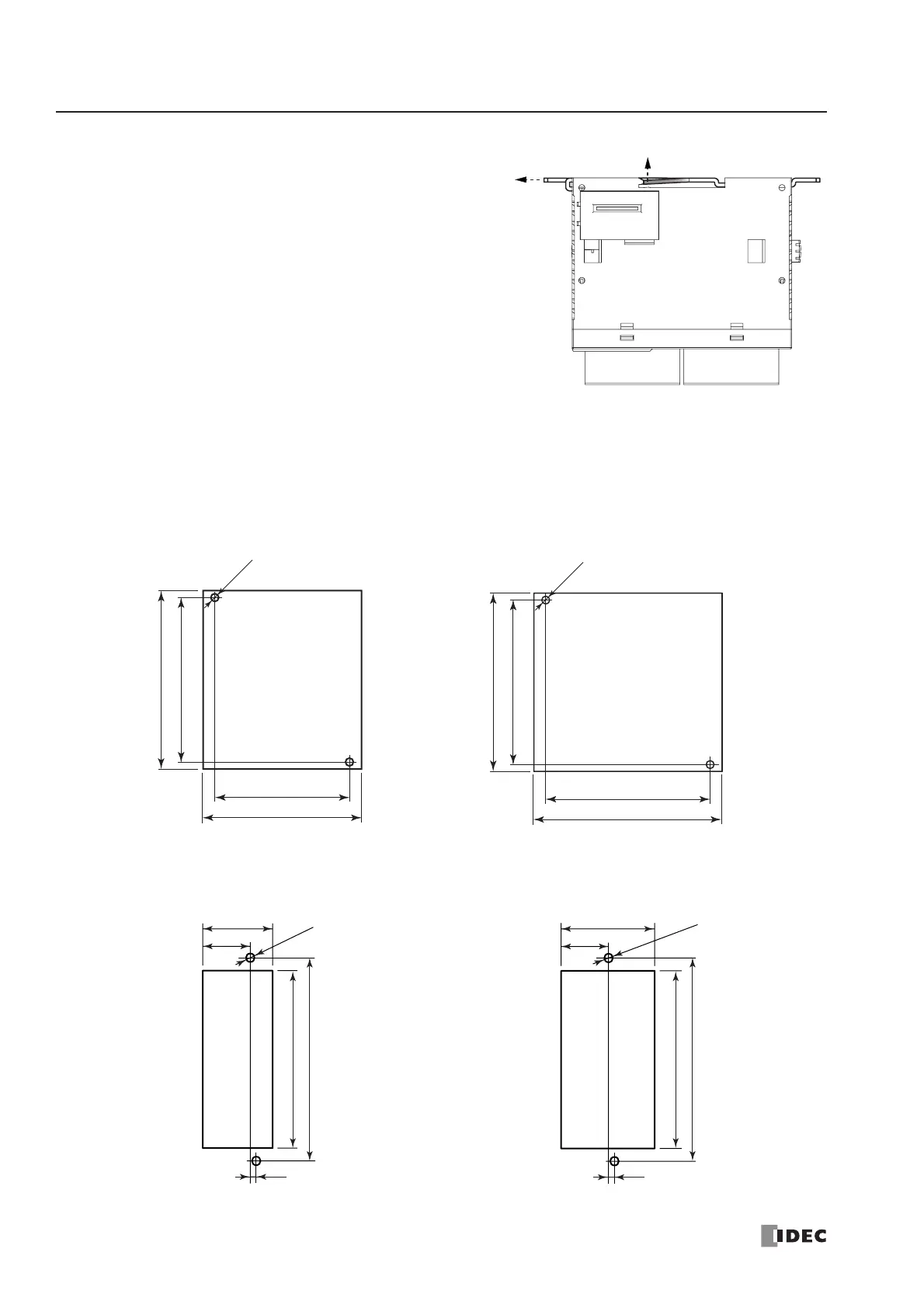

Removing the Direct Mounting Strip
1. Insert a flat screwdriver under the latch of the direct
mounting strip to release the latch (A).
2. Pull out the direct mounting strip (B).
Mounting Hole Layout for Direct Mounting on Panel Surface
Make mounting holes of ø4.3 mm as shown below and use M4 screws (6 or 8 mm long) to mount the MicroSmart modules
on the panel surface.
• CPU Modules
FC4A-C10R2, FC4A-C10R2C, FC4A-C24R2, FC4A-C24R2C
FC4A-C16R2, FC4A-C16R2C
FC4A-D20K3, FC4A-D20S3 FC4A-D20RK1, FC4A-D20RS1,
FC4A-D40K3, FC4A-D40S3
(A)
(B)
83.0
95.0
2-ø4.3
83.0 90.0
83.0 90.0
68.0
80.0
2-ø4.3
All dimensions in mm.
103.0
90.0
2-ø4.3
24.1
35.4
3.0
103.0
90.0
2-ø4.3
24.1
47.5
3.0
