HMI Base Module
The HMI base module is used to install the HMI module when using the slim type CPU module. The HMI base module
also has a port 2 connector to attach an optional RS232C or RS485 communication adapter.
When using the all-in-one type CPU module, the HMI base module is not needed to install the HMI module.
HMI Base Module Type Number

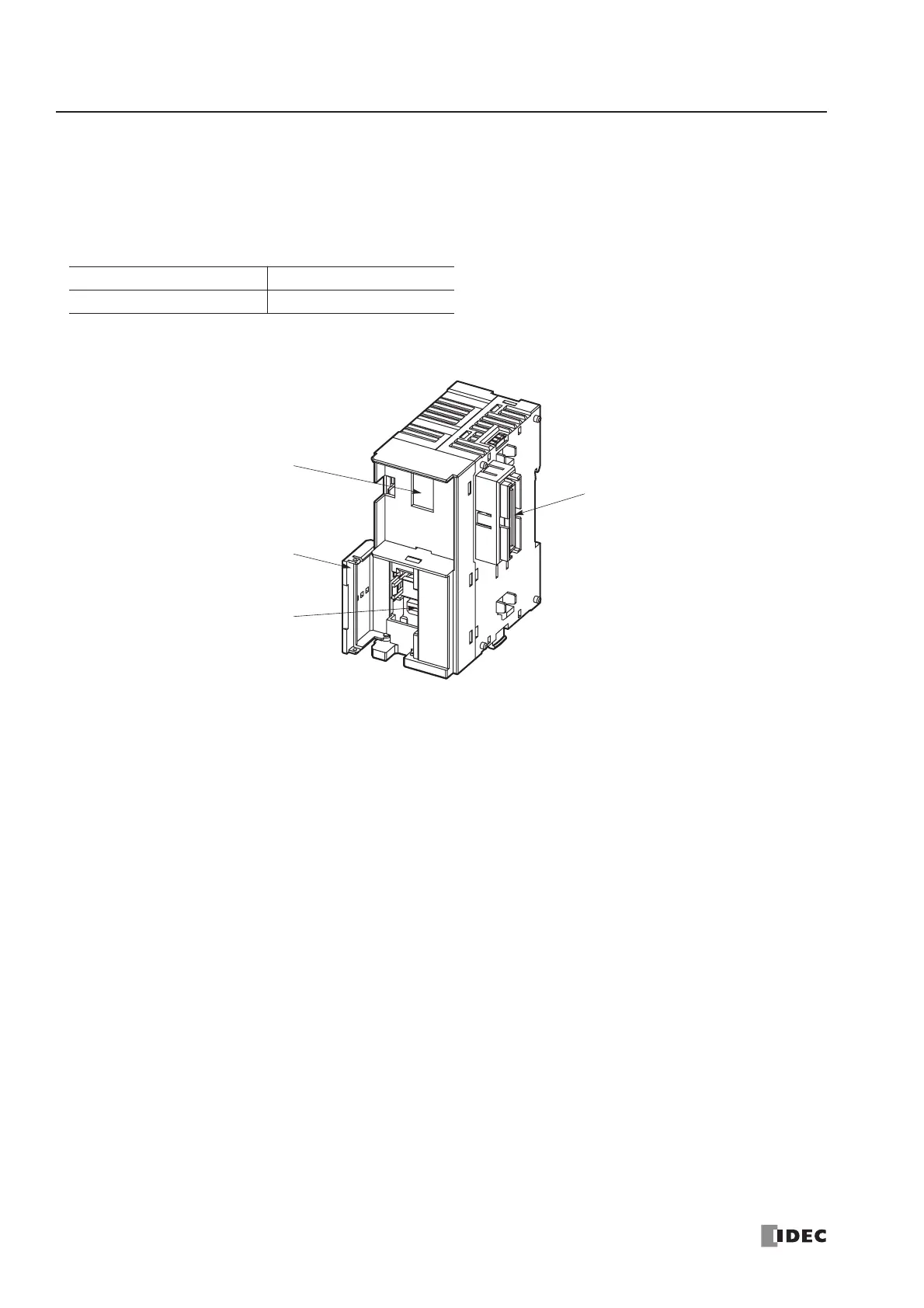

Parts Description
(1) HMI Connector For installing the HMI module.
(2) Hinged Lid Open the lid to gain access to the port 2 connector.
(3) Port 2 Connector For installing an optional RS232C or RS485 communication adapter.
(4) Communication Connector Connects to the slim type CPU module.
Module Name Type No.
HMI Base Module FC4A-HPH1
